UltraBond 10:1 Operations Manual
Rev. 12/2012 Page | 24

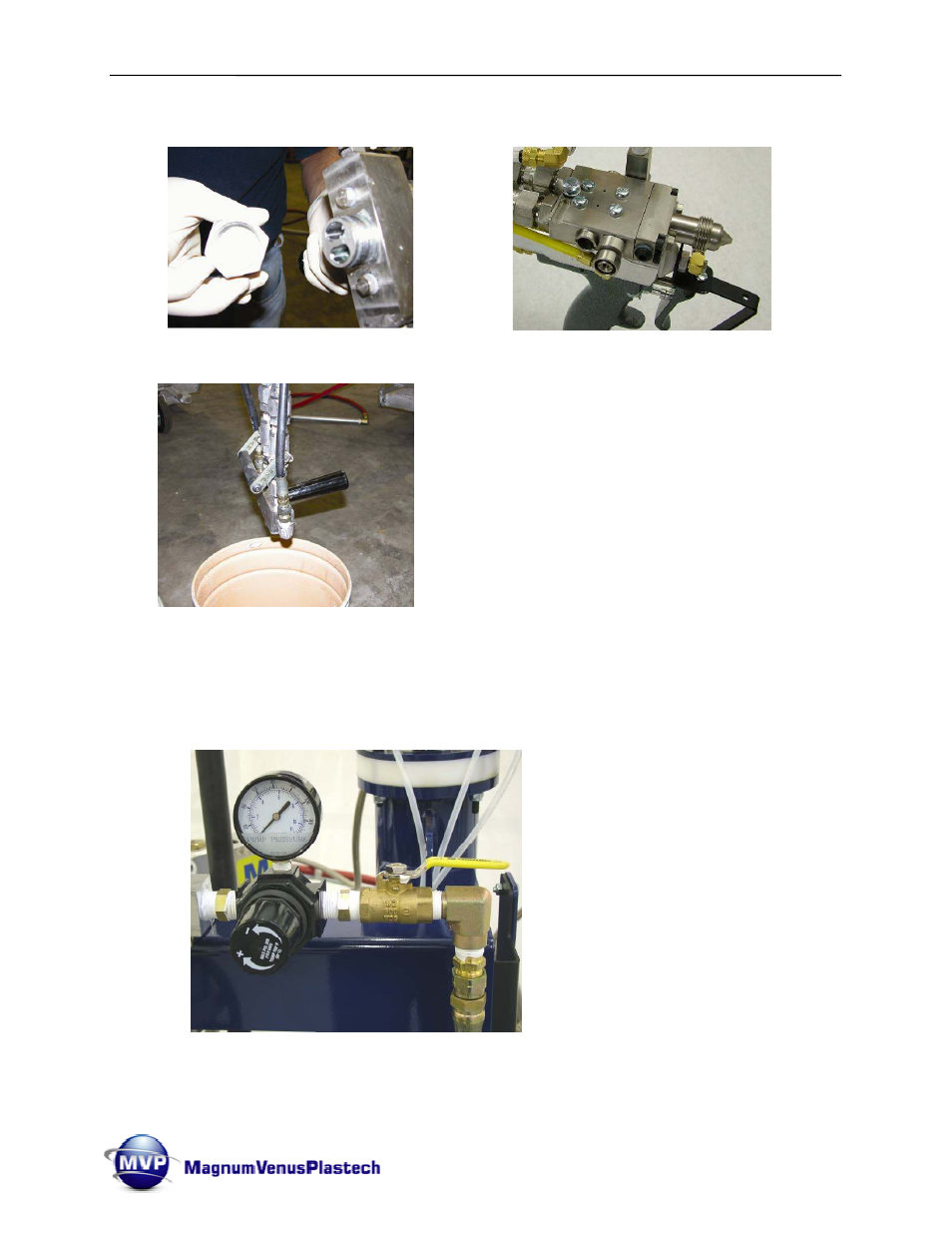

14. Remove the night cap or mixer assembly from the front of the dispensing block (see figure 21 & 21b).
Fig. 21 Fig. 21b
15. Position dispensing block / gun over an appropriate waste container to allow priming of lines (see fig. 22)
fig. 22
16. Pull the manual gun handle back to the open position or pull the trigger on the gun, and leave in the
open position.
17. Open the pump ball valve to allow pump operation (see fig. 23).
18. At the air manifold, slowly increase regulator marked pump pressure (see fig. 23).
Fig. 23
19. Adjust pump regulator as needed to maintain a slow uniform movement of the adhesive pumps.
