UltraBond 10:1 Operations Manual
Rev. 12/2012 Page | 16
CAUTION: Always wear proper safety equipment (glasses, gloves, respirator, etc.) when working
on the dispensing equipment.
Air Requirements:
1. The system requires a supply of air (30cfm) and at least 100 psi.
2. We require a 1/2" inch (12-13mm) inside diameter air hose minimum (Use caution when using quick
disconnects as they may restrict air flow.
3. Preferably the air will be clean, dry and oil free.
Assemble the unit:

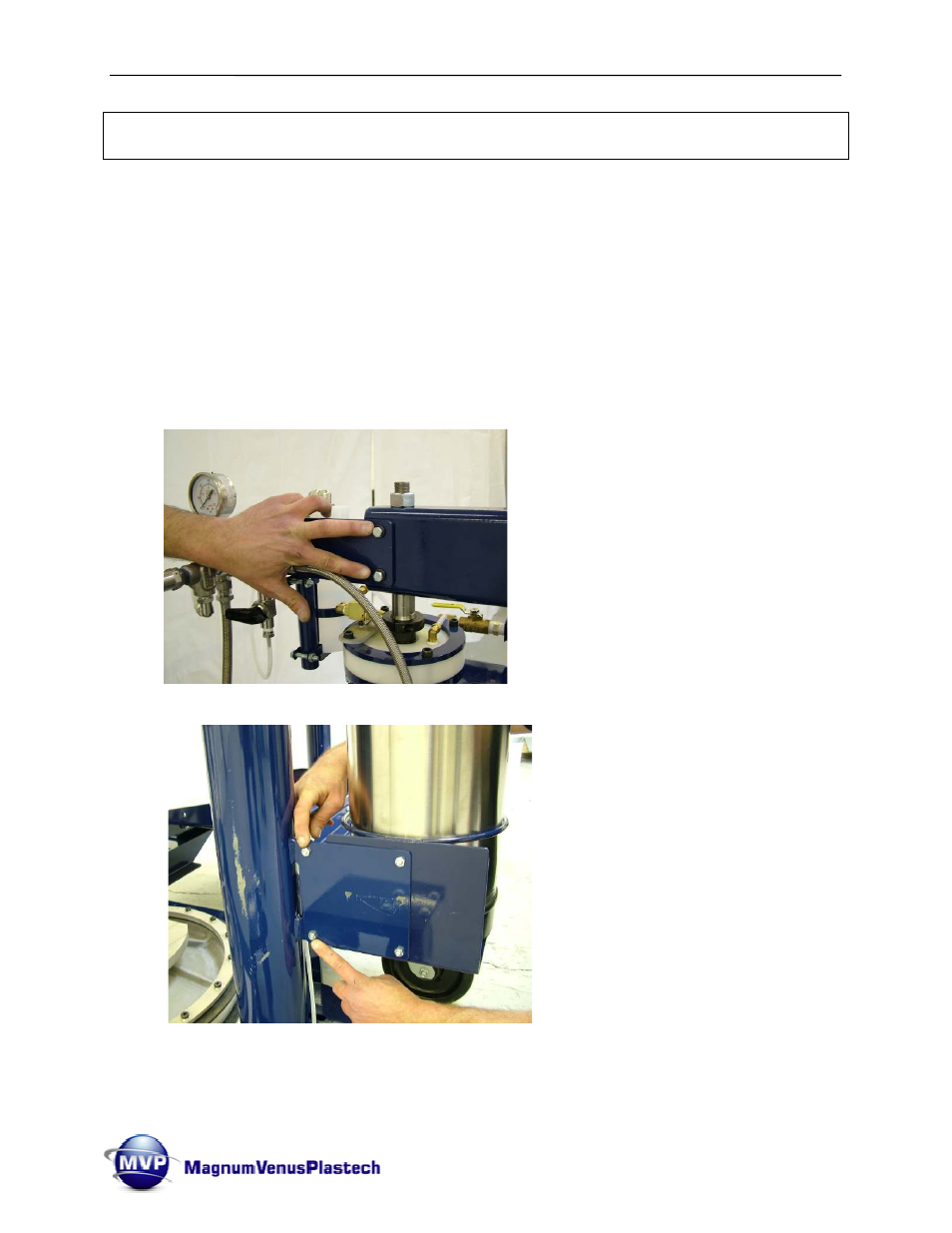

1. Attach the Catalyst Manifold to the upper support bar (see figure 1)
Fig. 1
2. Attach the Flush Tank Bracket to the main post and install Flush Tank (see figure 2)
Fig. 2
