212iLW/242iLW Standalone Keypad
Installation/Programming Manual
Document # 6050700, Rev. 1.1, D2d
8
5. Wiring
5.1 Wire Harness Configuration
Pin
Wire Color Signal name
1 Red V+ (Keypad Power)
2 Black V- (Keypad Power)
3 White/Black Not Used
4 White/Yellow Not Used
5 Brown Remote Trigger (REX)
6 White/Orange Loop Common (REX and Door Loop)
7 White Door Loop Monitor
8 Green Main Relay – Normally Open
9 Blue Main Relay - Common
10 Gray Main Relay – Normally Closed

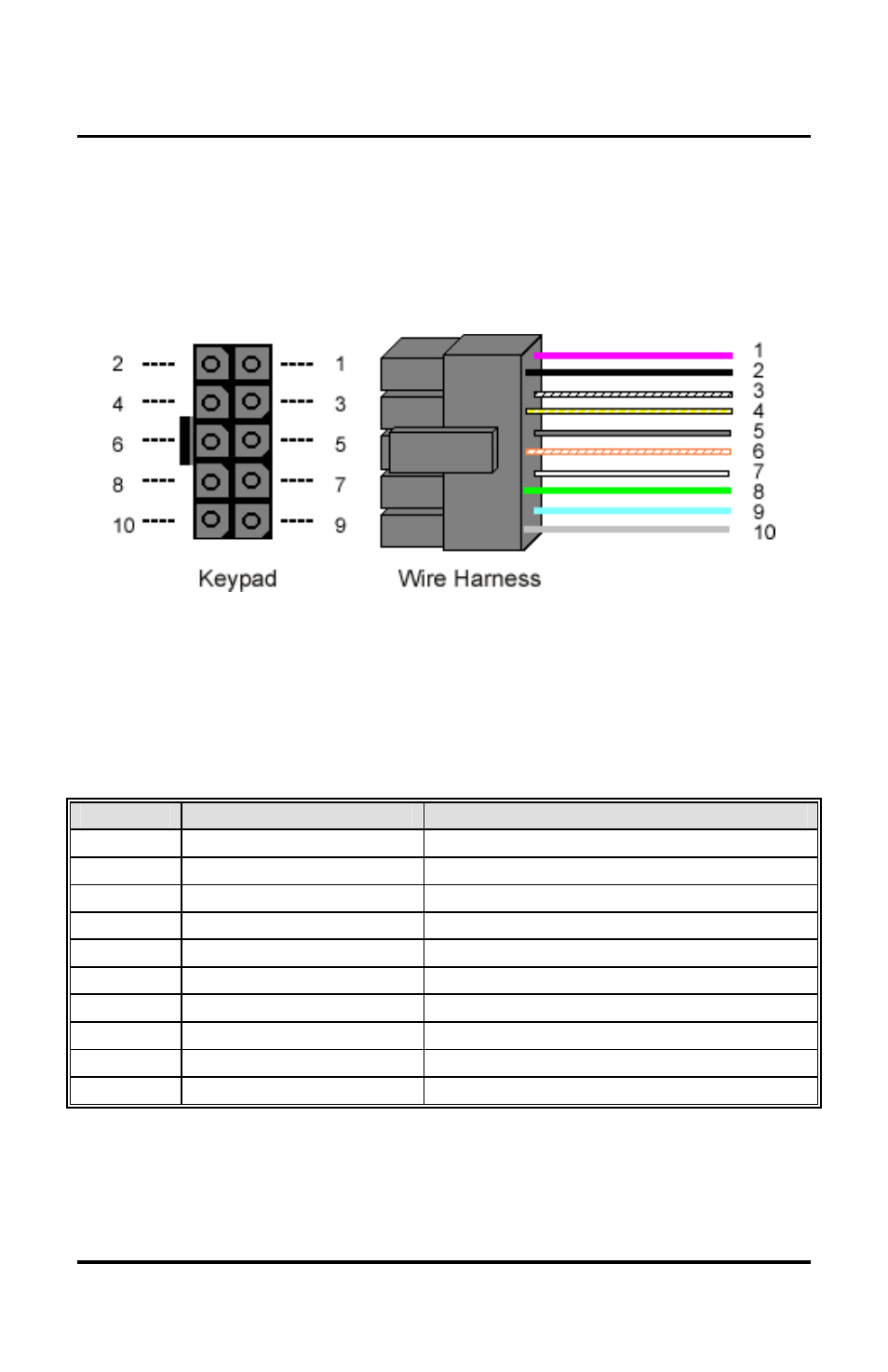

Figure 4 Keypad Connector and Wire Harness
Note: For wiring the accessory relay board, see sections 5.6 and 5.7.
