45
STANDARD CONTROL BOX
ITEM PART NUMBER DESCRIPTION
1 K74-34582-1 Standard Plastic Control Box Only
2 K76-36296-1 Outlet
3 K75-36635 Control Board Bracket
4 K1D7545CC Control Board Assembly
5 K1D6686CC Expansion Board
6 K94-36411 Piezo Alarm
7 K94-36408-1 Reset Switch with ID Resistor
8 K74-36596 Batteries (2) with jumper
9 APOW3 Transformer
10 29-NP712 Single Battery
NOT SHOWN
K77-36541 Antenna
1
GATE OPERATOR ARM
ITEM PART NUMBER DESCRIPTION
11 LA500 Primary Arm
12 KSWG-0623 Rear Connector with Pin
13 41ASWG-0119 Release Keys
14 Q230 Steel Bracket Mounting Plates
15 Q232 Bottom Washer and Nut
16 K94-36591 Junction Box with Cable
NOT SHOWN
K77-36389
Hardware Bag
NOT SHOWN
K74-34696-3 Large Metal Control Box (XLM) Only
K76-34771 Outlet
K94-36596 Battery Harness
LARGE METAL CONTROL BOX (XLM)
2
9
3
10
14
15
16
4
11
12
13
5
6
7
8
14

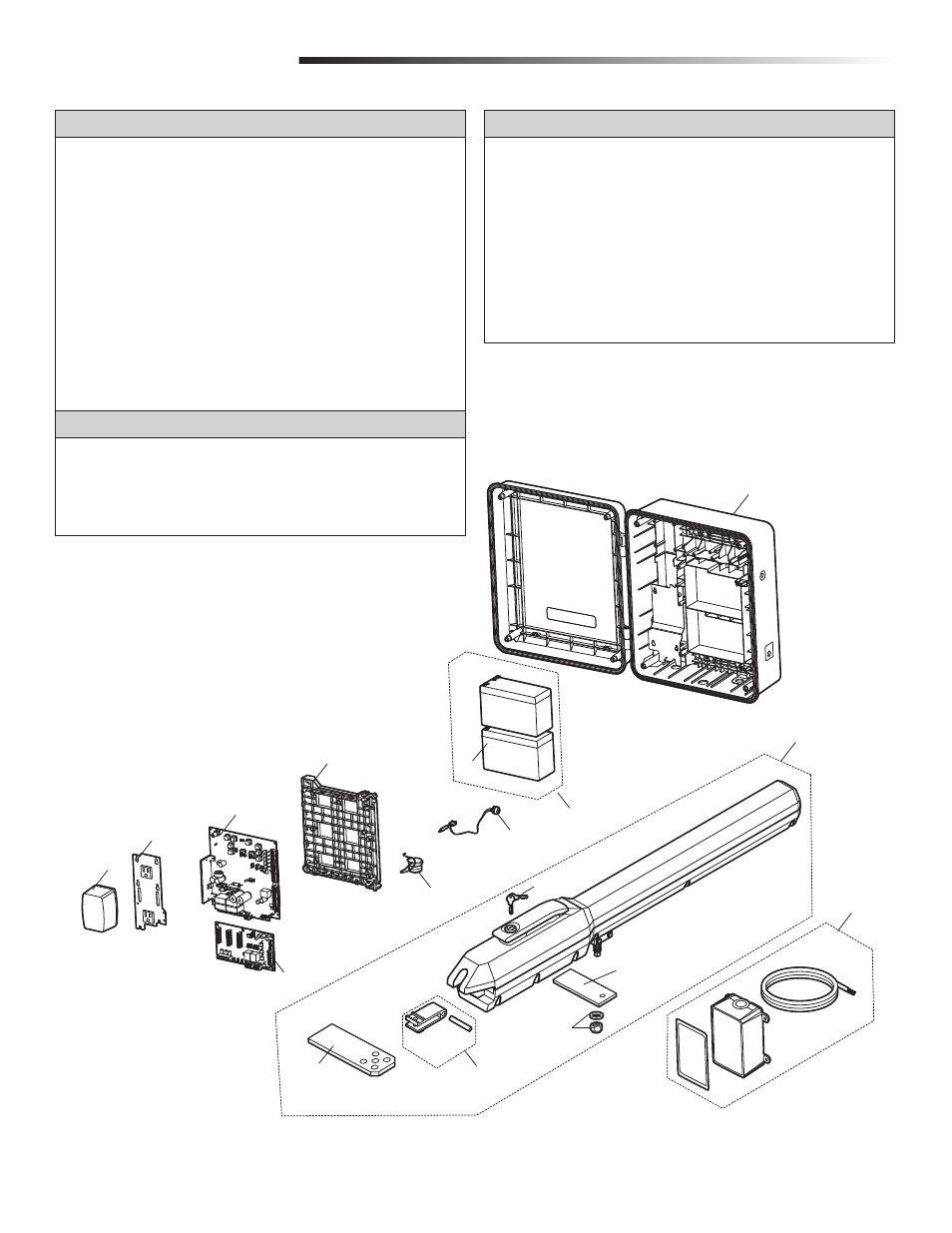

REPAIR PARTS
