13

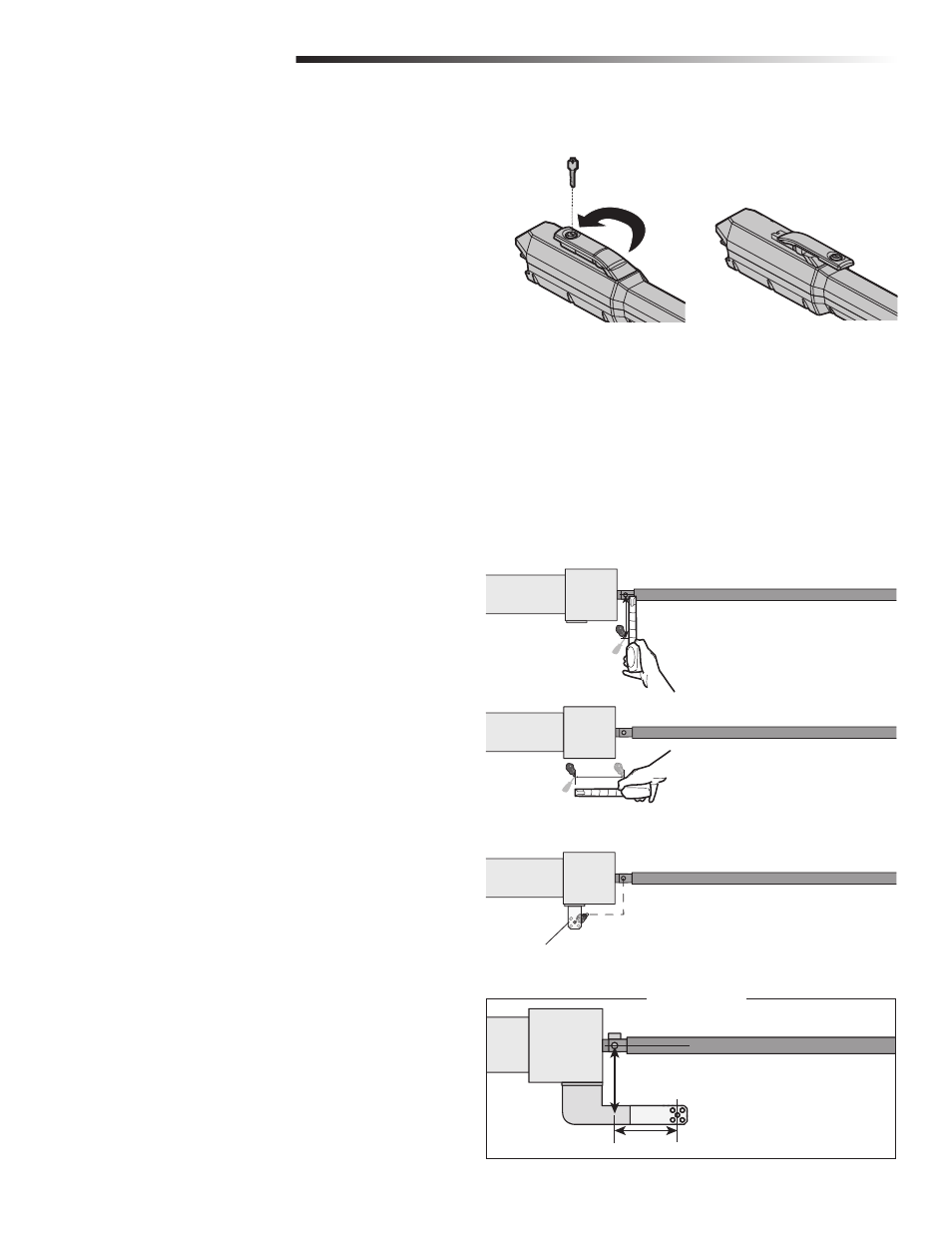

MANUAL RELEASE + DETERMINE THE POSITION OF THE POST BRACKET
INSTALLATION
MANUAL RELEASE
1
Insert the key into the lock and turn it 180 degrees counterclockwise.
2
Turn the release lever 180 degrees counterclockwise. The operator is now in
manual mode.
1
Close the gate.
2
Choose a vertical mounting location for the post bracket.
3
Place a measuring tape under the center of the gate hinge point and measure
out 7.75 inches.
4
Use a screwdriver or dowel rod to temporarily mark the location of the first
measurement.
5
Measure 8.5 inches from the previous mark.
6
Use a screwdriver to mark the location of the second measurement.
7
Align the post bracket as close as possible above the screwdriver or dowel rod
and tack weld the post bracket in the desired vertical position.
7.75"
8.5"
7.75"
8.5"
Post Bracket Location
If this operator is a replacement for a Miracle-One™ operator, use the existing post bracket and gate bracket. Remove the Miracle-One™ operator
from the brackets and proceed to page 15.
DETERMINE THE POSITION OF THE POST BRACKET
7.75"
8.5"
PUSH-TO-OPEN
If your application is Push-to-Open, refer to the illustration to the right.
