8
OPERATOR SPECIFICATIONS
This model is intended for use in vehicular swing gate applications:
OPERATOR SPECIFICATIONS + CARTON INVENTORY & OPERATOR DIMENSIONS
INTRODUCTION

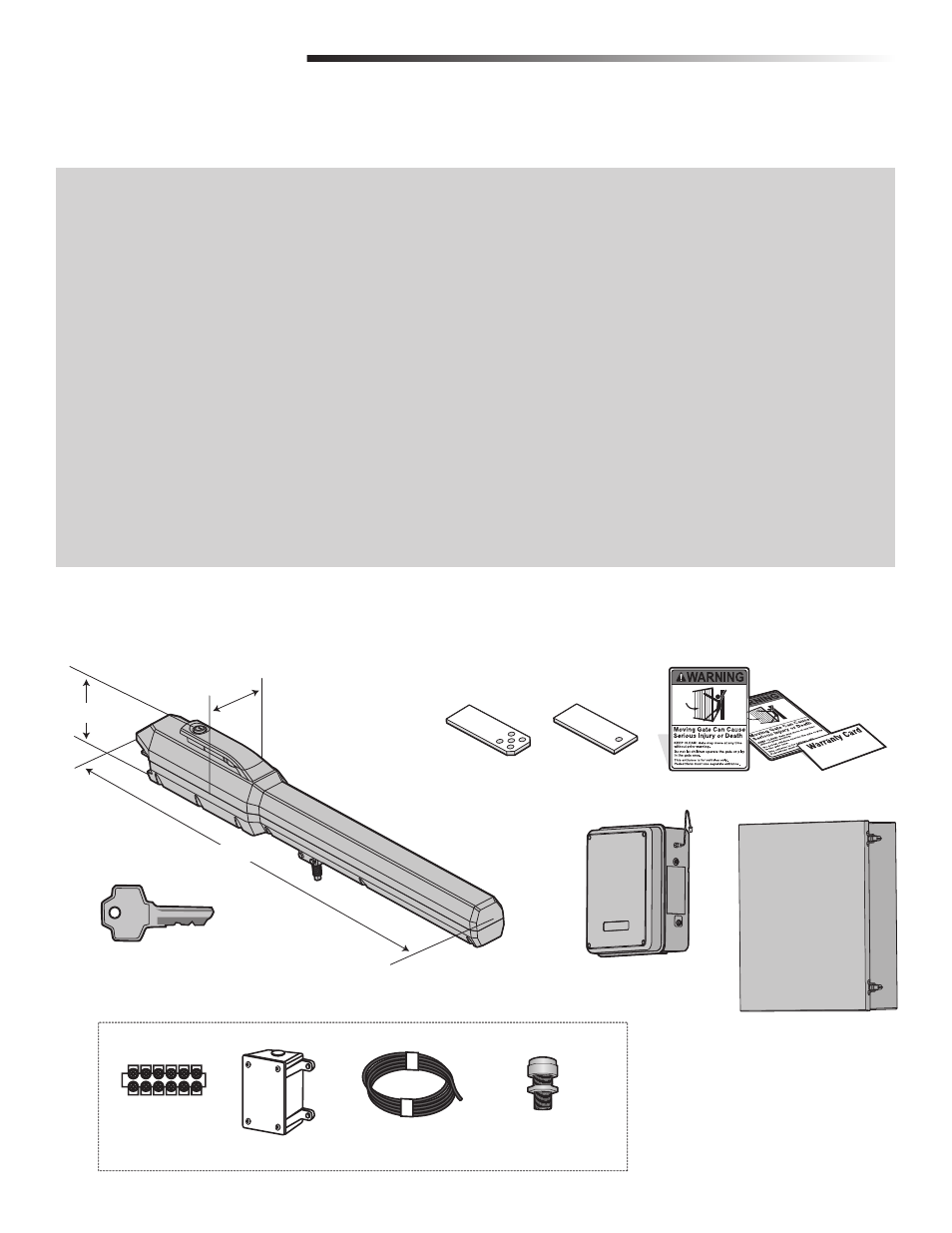

CARTON INVENTORY & OPERATOR DIMENSIONS
NOT SHOWN: Documentation Packet, Hardware Bag
Key (2)
Warning Signs (2) and Warranty Card
Standard Control Box with
Batteries 12 Vdc 7AH (2)
Operator
Model LA500 (1)
Model LA500-S (2)
5.83" (14.8 cm)
Gate Classifications: CLASS I, II, III, & IV
Main AC Supply: 120 Vac or 240 Vac (240 Vac option with Toroid Kit ONLY)
Solar Power Max: 24 Vdc at 50 watts max.
Input Rating: 8 Amps at 120 Vac or 1 Amp at 240 Vac
Input Rating Excluding Accessory Outlets: 2 Amps at 120 Vac or 1
Amp at 240 Vac
*Input Rating of Accessory Outlets: 6 Amps at 120 Vac
* NOTE: The accessory outlets are not connected for the 240 Vac rating.
Main Supply (Motor): 24 Vdc
Accessory Power: 24 Vdc nominal Class II battery voltage source is
limited to:
• Accessory wire up to 50 feet - 500 mA
• Accessory wire 50 feet up to 250 feet - 250 mA
• Accessory wire 250 feet up to 1000 feet - 100 mA
NOTE: Increased accessory power drawn from the operator will shorten the
battery life (solar applications ONLY).
Full Cycle Time: 32 seconds (90 degree opening)
Maximum Travel Range: 115 degrees
Maximum Gate Weight/Length:
• 1600 lbs./8 foot
• 800 lbs./16 foot
• 600 lbs./18 foot
Ambient Temperature: -40°C to 60°C (-40°F to 140°F)
Fuse Protection Battery: 30 Amp
Fuse Protection DC Power: 30 Amp
Daily cycle rate for direct plug-in transformer power:
300 cycles/day
Daily Cycle Rate for toroid transformer (accessory) power:
300 cycles/day semi-continuous duty
4.21" (10.7 cm)
40.35" (102.5 cm)
Large Metal Control Box (XLM),
ordered separately (batteries
not included)
OR
Post Bracket Gate Bracket
MODEL LA500-S ONLY
Terminal Block
Connector
Junction Box
Extension Cable
Watertight Connector (2)
