35
INITIAL LIMITS AND FORCE ADJUSTMENT
For dual gate applications the limits will have to be set for each
operator. The gate MUST be attached to the operator before setting the
limits and force.
Ensure the gate is closed.
1

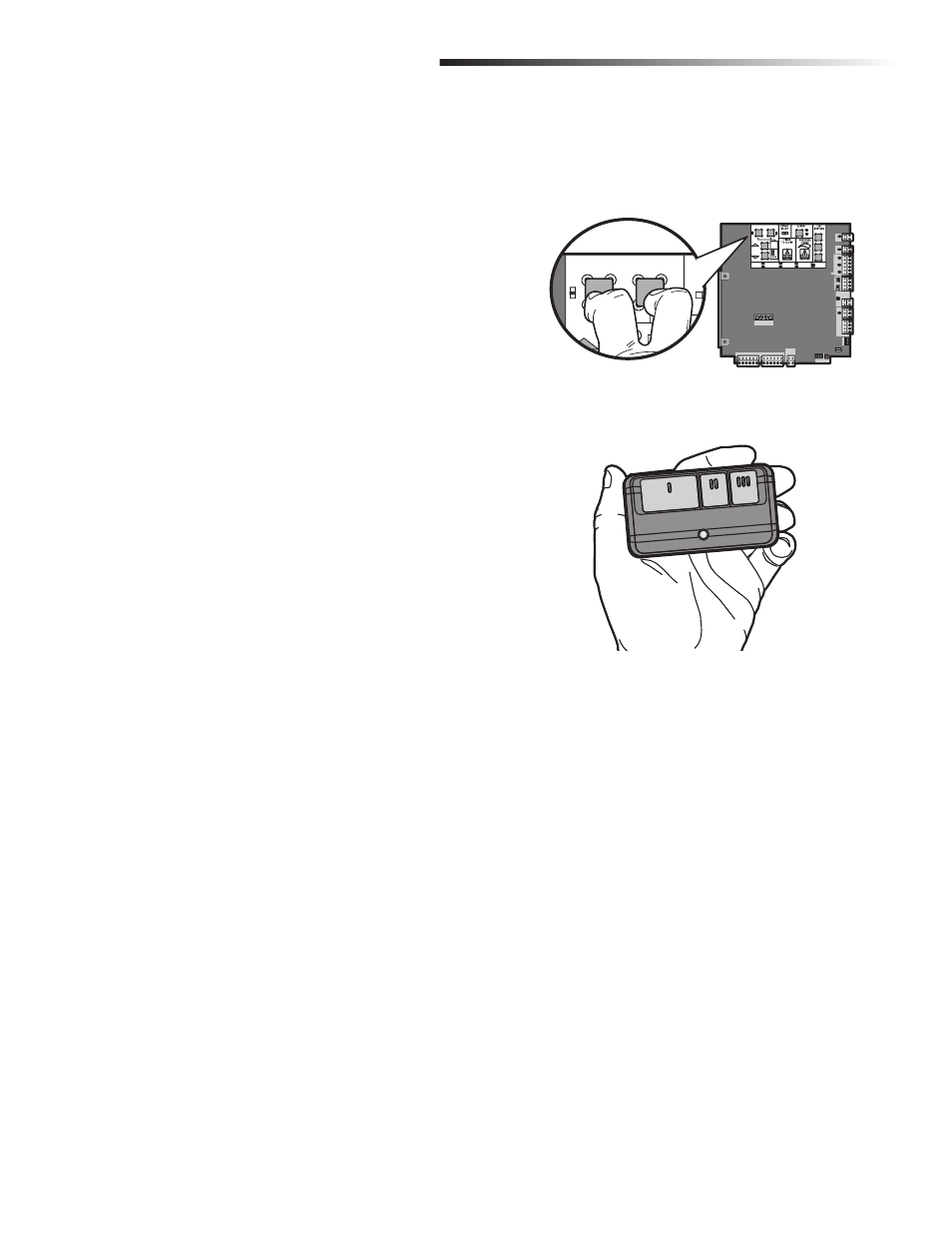

Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter
limit setting mode.
2
Press and hold the OPEN or CLOSE button on the remote control until the gate
reaches the desired open position. The gate can be jogged back and forth using
the OPEN and CLOSE buttons on the remote control.
3
Once the gate is in the desired open position, press and release the STOP button
on the remote control.
4
Press and release the OPEN button on the remote control again to set the open
limit.
5
Press and hold the CLOSE or OPEN button on the remote control until the gate
reaches the desired close position. The gate can be jogged back and forth using
the OPEN and CLOSE buttons on the remote control.
6
Once the gate is in the desired close position, press and release the STOP button
on the remote control.
7
Press and release the CLOSE button on the remote control again to set the close
limit.
8
Cycle the gate open and close. This automatically sets the force.
When limits are set properly the operator will automatically exit limit setting mode.
LIMIT SETUP WITH A REMOTE CONTROL
ADDITIONAL FEATURES
LIMIT SETUP WITH A REMOTE CONTROL
To set the limits using a remote control, first you will need a 3-button remote control that has been programmed for OPEN, CLOSE, and STOP. Refer to the Programming
section.
Set the Close Limit Only
1
Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter
limit setting mode.
2
Press and hold the CLOSE button on the remote control until the gate reaches
the desired close position. The gate can be jogged back and forth using the
OPEN and CLOSE buttons on the remote control.
3
Once the gate is in the desired close position, press and release the STOP button
on the remote control.
4
Press and release the CLOSE button on the remote control again to set the close
limit.
When the close limit is set properly the operator will automatically exit limit setting
mode.
Set the Open Limit Only
1
Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter
limit setting mode.
2
Press and hold the OPEN button on the remote control until the gate reaches the
desired open position. The gate can be jogged back and forth using the OPEN
and CLOSE buttons on the remote control.
3
Once the gate is in the desired open position, press and release the STOP button
on the remote control.
4
Press and release the OPEN button on the remote control again to set the open
limit.
When the open limit is set properly the operator will automatically exit limit setting
mode.
ADJUST THE LIMITS
If the limits have already been set the operator will exit the limit setting mode after resetting each limit.
3-Button Remote Control programmed for OPEN, CLOSE, and STOP
SET OPEN SET CLOSE
MO E
G TE
OF
5
10
6
0 M N MAX
S C ND )
N UT POW R T M R TT L W D AGN ST ODES STATUS
I E D OP N
SH DOW C OSE YE /
I TER
OC N O
N C
+
+ A CES
OR Y
POW
R
ON
W
XP
ER
WO K
R E S O B G L M T
2
+
5
+
S LAR /
C ARG R
15
+
A T + DC POW R
D ES T A A M
BR GRN WT E B U ED BR GRN WT YE B U RED
SET OPEN SET CLOSE
