11

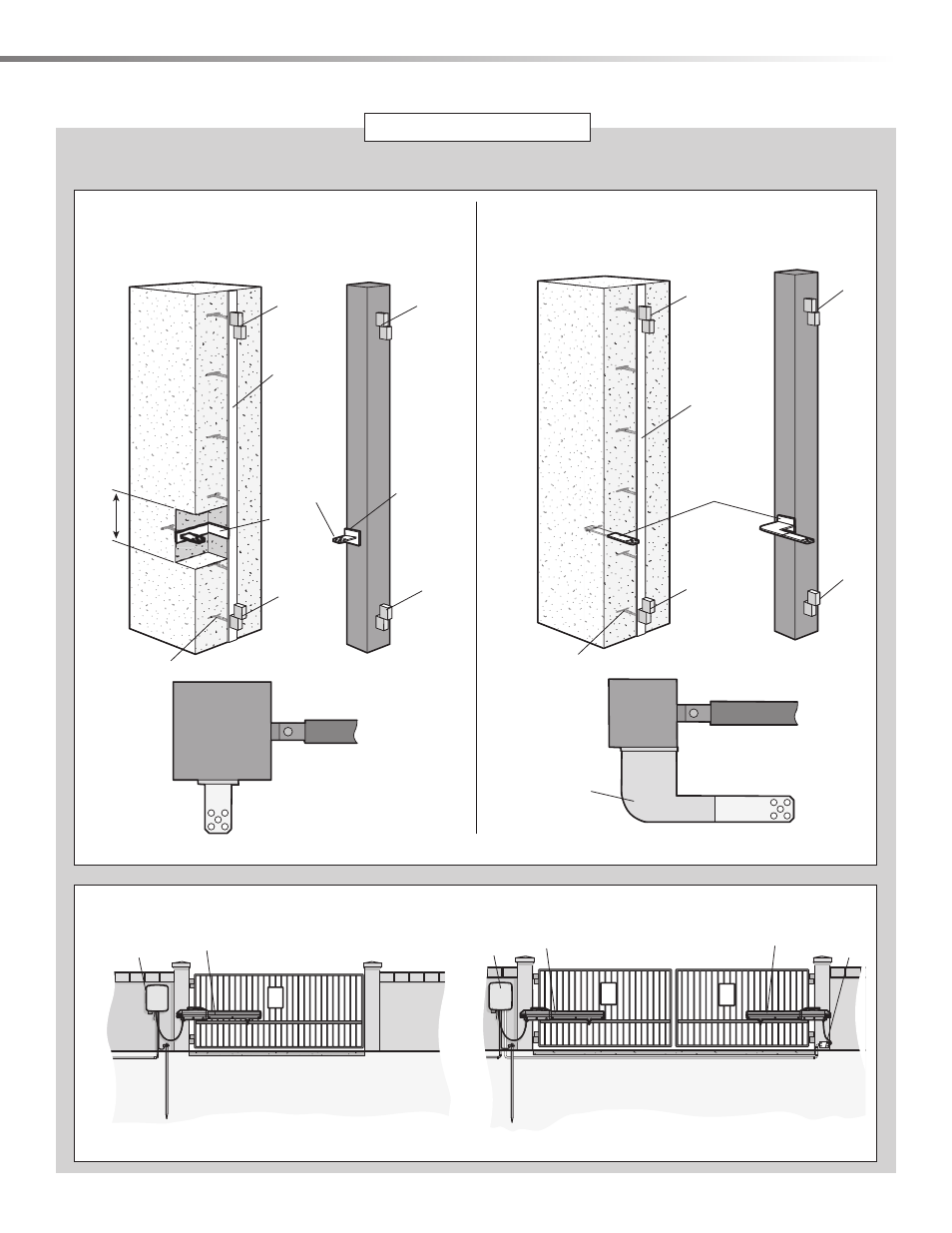

SITE PREPARATION
INSTALLATION TYPES
PULL-TO-OPEN PUSH-TO-OPEN
Top View
Heavy Steel Plate for
Reinforcement (Not provided)
Back Steel Bracket
(Reinforce if necessary)
NOTE: Weld Re Bar
Behind Gate Hinges for
Maximum Strength.
Gate Hinge
Top View
10"
Minimum
Heavy Steel
Bracket
(Reinforce if
necessary)
Back Steel Plates
for Reinforcement
(Not provided)
SINGLE GATE
!
! !
DUAL GATE
Water Tight Conduit (Not provided) Shielded low
voltage wires.
Earth Ground Rod
Primary Operator Secondary Operator
Junction Box Control Box Control Box
Earth Ground Rod
Operator
Water Tight Conduit
(Not provided)
Identify your installation type. The installation steps in this manual will show a typical Pull-to-Open application.
Gate Hinge
Gate Hinge
Gate Hinge
Gate Hinge
Gate Hinge
Gate Hinge
Gate Hinge
Heavy Steel Plate
for Reinforcement
(Not provided)
Back Steel
Bracket
(Reinforce if
necessary)
Heavy Steel Plate
for Reinforcement
(Not provided)
Post Install Column Install
Post Install Column Install
NOTE: Weld Re Bar
Behind Gate Hinges for
Maximum Strength.
