Controlled Products Systems Group LA500 - Manual (Page 26)

24

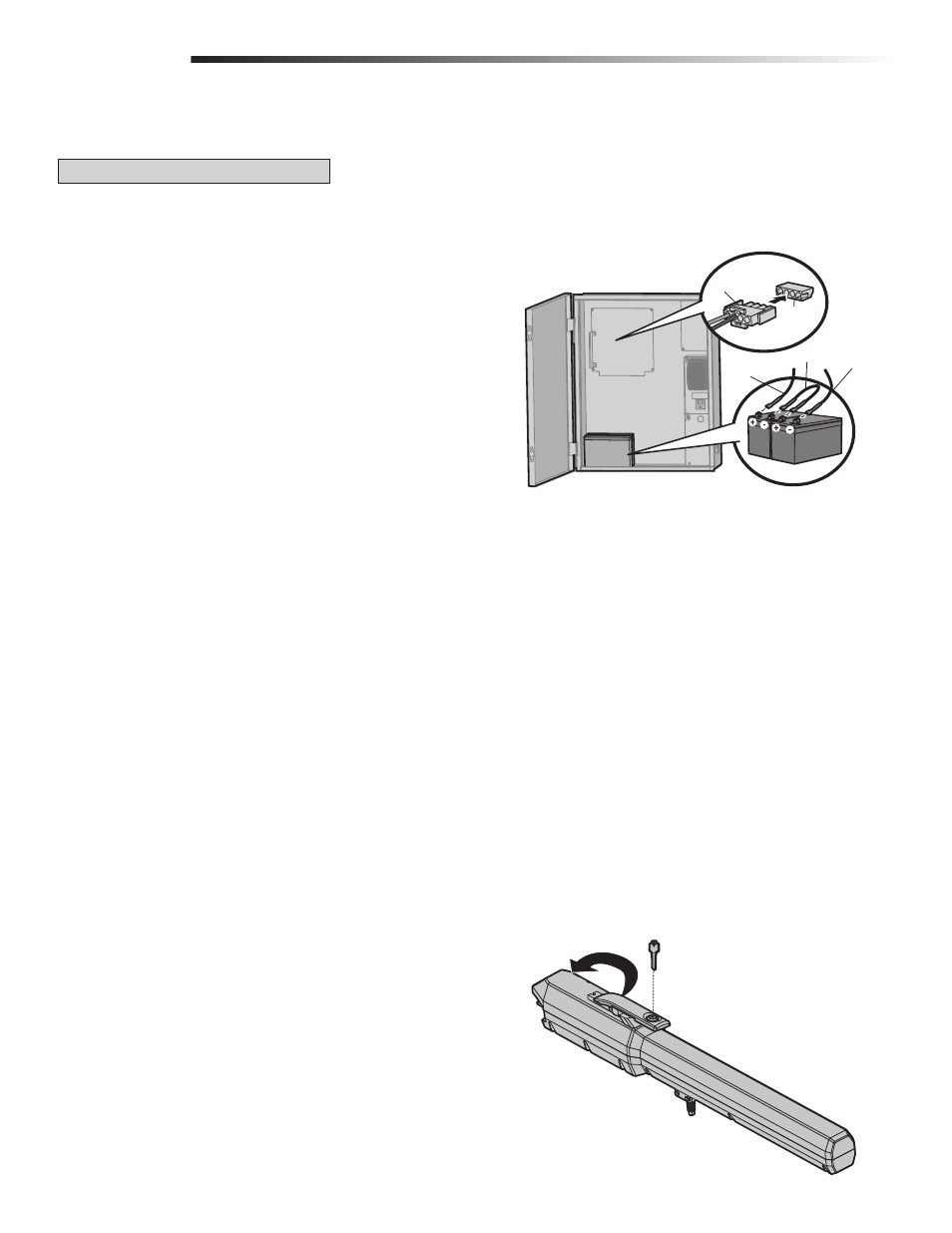

7AH BATTERIES
1
Turn OFF AC power to the operator at the circuit breaker and unplug the
transformer.
2
Unplug the battery connector to the J15 plug labeled BATT(-)(+) DC(-)(+) on
the control board by squeezing the plug and pulling it from the control board.
3
Connect a jumper between the positive (+) terminal of one battery to the
negative (-) terminal of the other battery.
4
Connect the red wire from the J15 plug labeled BATT (+) to the positive (+)
terminal of the battery.
5
Connect the black wire from the J15 plug labeled BATT (-) to the negative (-)
terminal of the battery.
6
Plug the J15 plug into the control board. The control board will power up.
7
Plug the transformer in.
8
Turn ON AC power.
CONNECT BATTERIES + ENGAGE THE OPERATOR
WIRING
ENGAGE THE OPERATOR
1
Turn the release lever clockwise 180°. This engages the motor.
2
Turn the key clockwise 180°. This locks the release lever.
The operator is now engaged.
LARGE METAL CONTROL BOX (XLM)
Battery
Connector
J15 Plug
Jumper
Black Wire Red Wire
CONNECT BATTERIES
The batteries are charged in the circuit by the transformer or solar panel.
33AH BATTERIES
33AH batteries can be used in place of the 7AH batteries for a Large Metal Control
Box (XLM) solar application ONLY. A wall or column mount installation is
recommended when using the 33AH batteries. A battery tray (model K10-36183)
and battery harness (model K94-36596) are required for 33AH applications.
