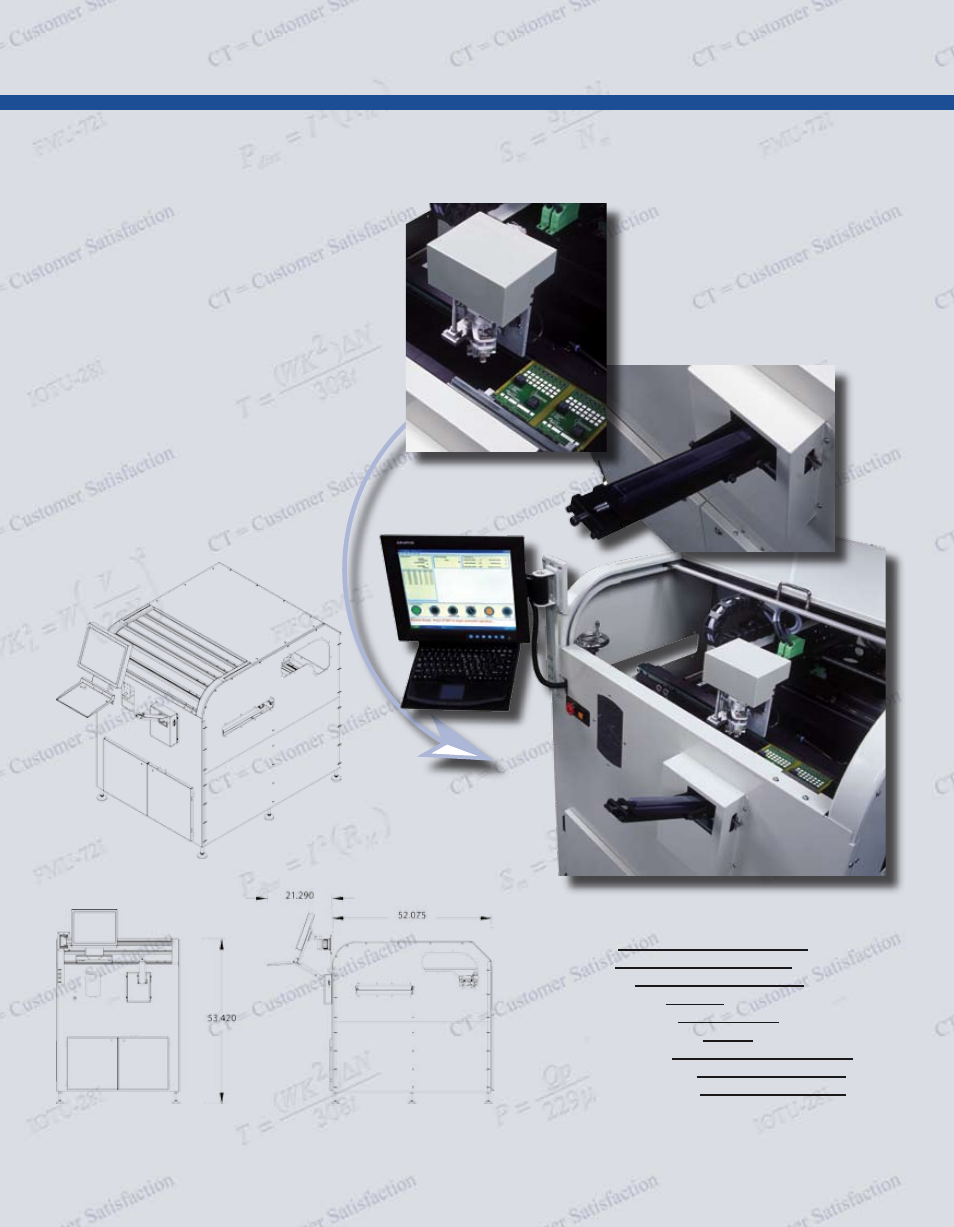

Conveyor Technologies ODD FORM PICK & PLACE - Manual (Page 2)

STANDARD SPECIFICATIONS:
•
PCB Size: Min. 2” X 4”
Max.16” X 18”
•
PCB Height: 37.5” + / - 2”
•
Edge Clearance: .100” from edge of PCB
•
Air Requirements: .2 cfm @ 65 PSI
•
Power Requirements: 20 amps @ 220VAC
•
PCB Max Weight: 10 lb.
•
PCB Min. Thickness: (.010”)
•
PCB Max. Thickness: (.180”)
Gripper Types:
• Vacuum
• Mechanical Chuck
Gripper Configurations:
• Single 0 to 90 degree rotation
• Single Incremental Theta
• Dual Non Rotating
• Dual 0 to 90 degree rotation
• Dual Incremental rotation
Standard Controls:
• PLC Controls with SMEMA interface
(Standard)
• Programmable Positions
(up to 2000 programmable positions)
• 10 Inch LCD Display Monitor
Optional:
•
PC Based Controls
•
15” Plasma Monitor w/keyboard
•
CT Easy Teach Software
•
Recipe and Memory Storage (Unlimited)
•
User Friendly, Windows Based,
Network Interface
• PC Based Controls
• 15” Plasma Monitor w/keyboard
• CT Easy Teach Software
•
Recipe and Memory Storage (Unlimited)
•
User Friendly, Windows Based,
Network Interface
CTI Easy Teach Software:
5313 WOMACK ROAD SANFORD, NC 27330 / OFFICE: (919) 776 - 7227 - FAX: (919) 774 - 3097
www.conveyor-technologies.com
g3 ODD FORM PLACEMENT SYSTEM
