Conveyor Technologies MAG-ALL User Manual

Pn: mag-all, Mag all fifo lifo buffer smts, Standard specifications

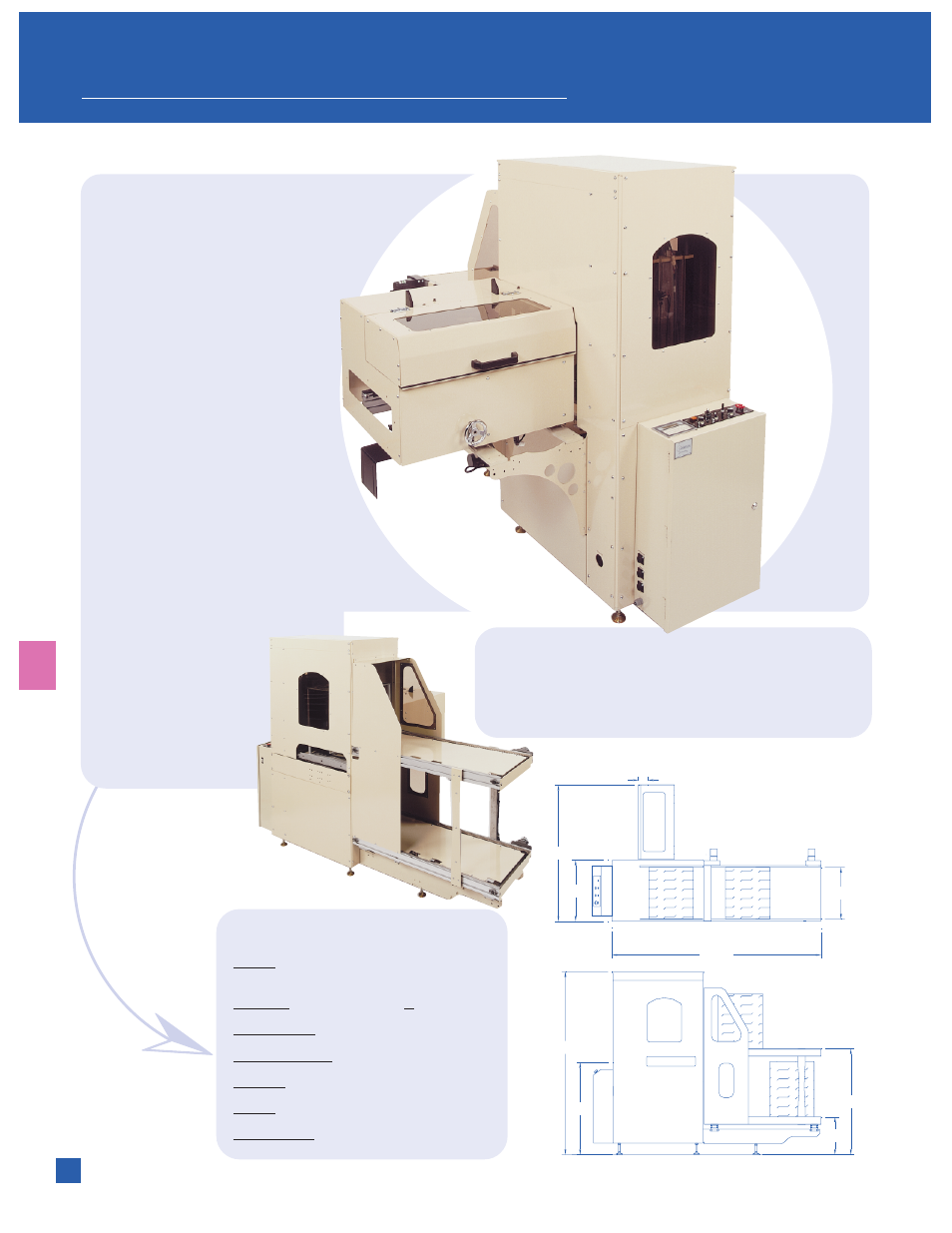

background image

74.500"

37.500"

24.937"

85.250"

55.500

21.062"

4.000"

15.376"

43.126"

PCB Size

Min: 2.0” x 4.0”
Max: 16.0” x 18.0”

PCB Height

37.5 Inches + 2”

Air Requirement

.2 cfm @ 65 PSI

Power Requirement 110 VAC, 20A

Cycle Time

6-21 seconds

Capacity

50 PCB’s on 10mm Pitch

Weight Capacity

150 lbs./Magazine

STANDARD SPECIFICATIONS:

20

PN: MAG-ALL

MAG ALL FIFO LIFO BUFFER SMTS

STANDARD FEATURES:

• Vertical FIFO/LIFO/Pass Through/Magazine Loader/

Magazine Unloader

• Removable Magazine
• The Vertical Magazine Consists of 50 Levels

on a10mm Pitch

• Mechanical Pusher Used to Load and

Unload PCBs

• Adjustable PCB Dwell Time for Cooling
• Disable Feed to Oven Feature if Buffer

is Full

• Operators Interface Control Panel
• Board Edge Clearance of .118”
• Totally Enclosed for Safety with

Interlocked Doors

• Servo Z-Axis (Elevator)
• Auto/Manual Switches on Control Panel
• PLC Controls with SMEMA Cables
• 5/8” Steel Base
• Hand Crank Width Adjust 2.0” - 16.0”

FITS PROCESS AS:

MAGAZINE CAPACITY:

1. Middle of Line Buffer

1 in Elevator

2. Front End Magazine Loader

2 in Full Queue

3. Back End Magazine Unloader

2 In Empty Queue

OPTIONS:

• 18” X 20”,21” X 24” PCB Capability
• Warning Light with Alarm
• Cooling Fans
• Light Tower
• High Speed (6-18 Seconds)
• 1/2” Queue Option for

Smaller Footprint

• Queue on Front or

Back Configurations
