Conveyor Technologies FIFO-1.3M-50 - Manual

PCB Size Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height 37.5 Inches + 2”
Air Requirement .2 cfm @ 65 PSI
Power Requirement 110 VAC, 20A
Cycle Time 6-22 Seconds
Capacity 50 PCB’s on a 10mm Pitch
Weight Capacity 150 lbs.
STANDARD SPECIFICATIONS:
18
PN: FIFO-1.3M-50

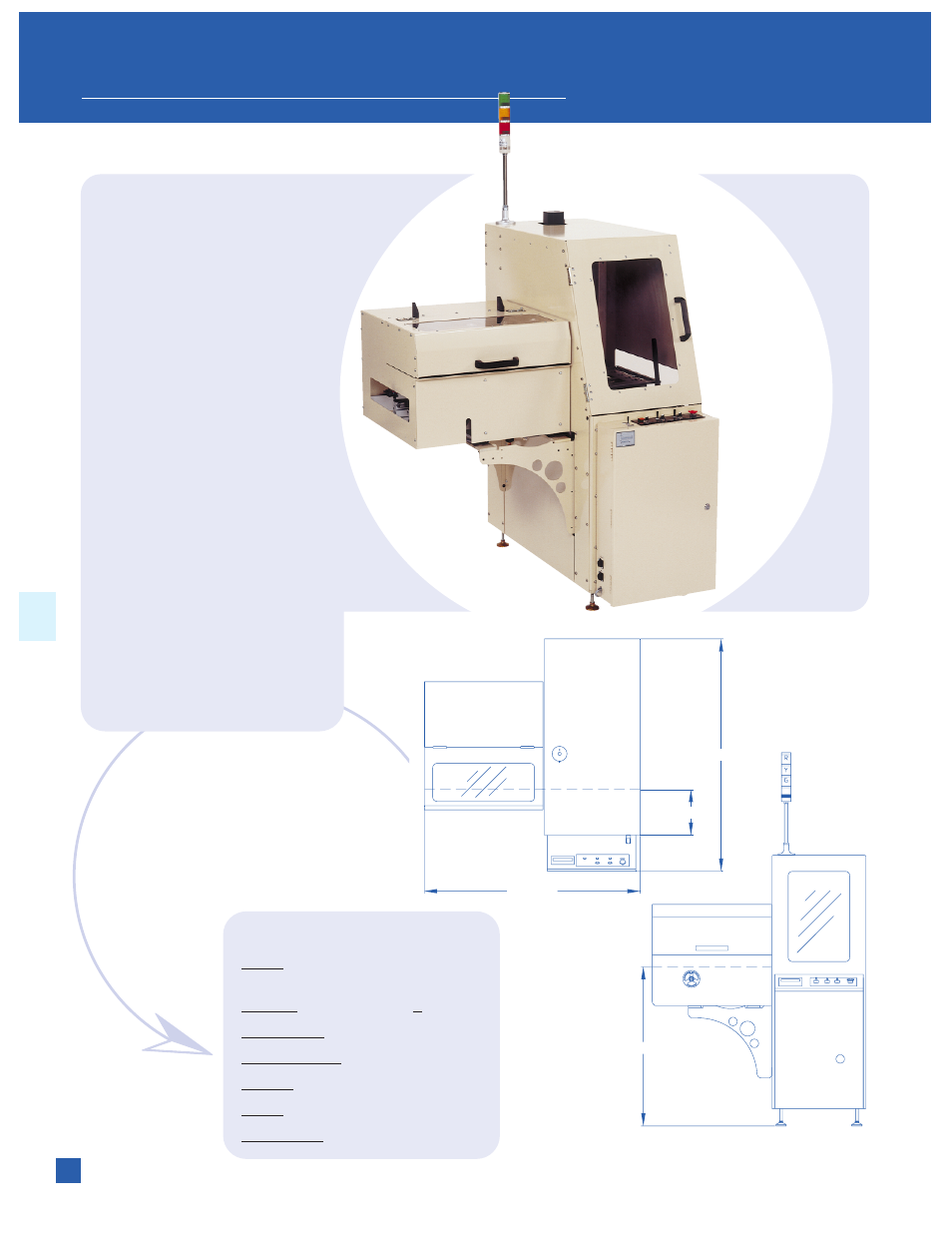

FIFO BUFFER 1.3 METER 50 PCB CAPACITY SMTS
STANDARD FEATURES:
• Vertical FIFO/LIFO/Pass Through
• Removable Magazine
• The Vertical Magazine Consist of 50 Levels
on a 10 mm Pitch
• Select Switch fo Buffer Pitch 10mm, 20mm,
and 30mm
• Mechanical Pusher Used to Load and
Unload PCBs
• Adjustable PCB Dwell Time for Cooling
• Disable Feed to Oven Feature if Buffer
is Full
• Operator Interface Control Panel
• Board Edge Clearance of .118”
• Totally Enclosed for Safety with
Interlocked Doors
• Servo Z-Axis (Elevator)
• PLC Controls with SMEMA Cables
• 5/8” Steel Base
• Hand Crank Width Adjust 2.0” - 16.0”
• Top & Bottom Magazine Clamps
OPTIONS:
• 18” X 20”,21” X 24”,24” X 28” PCB Capacity
• Warning Light with Alarm
• Cooling Fans
• Light Tower
• High Speed (6-18 Seconds)
37.500"
51.181"
10.829"
55.000"
