Conveyor Technologies LG-72I-2 User Manual
Pn: lg-72i-2, Lift gate conveyor 72 inch smts, Standard specifications
PCB Size
Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height
37.5 Inches + 2”
Air Requirement
.1 cfm @ 40 PSI
Power Requirement 110 VAC, 15A
STANDARD SPECIFICATIONS:
13
PN: LG-72I-2

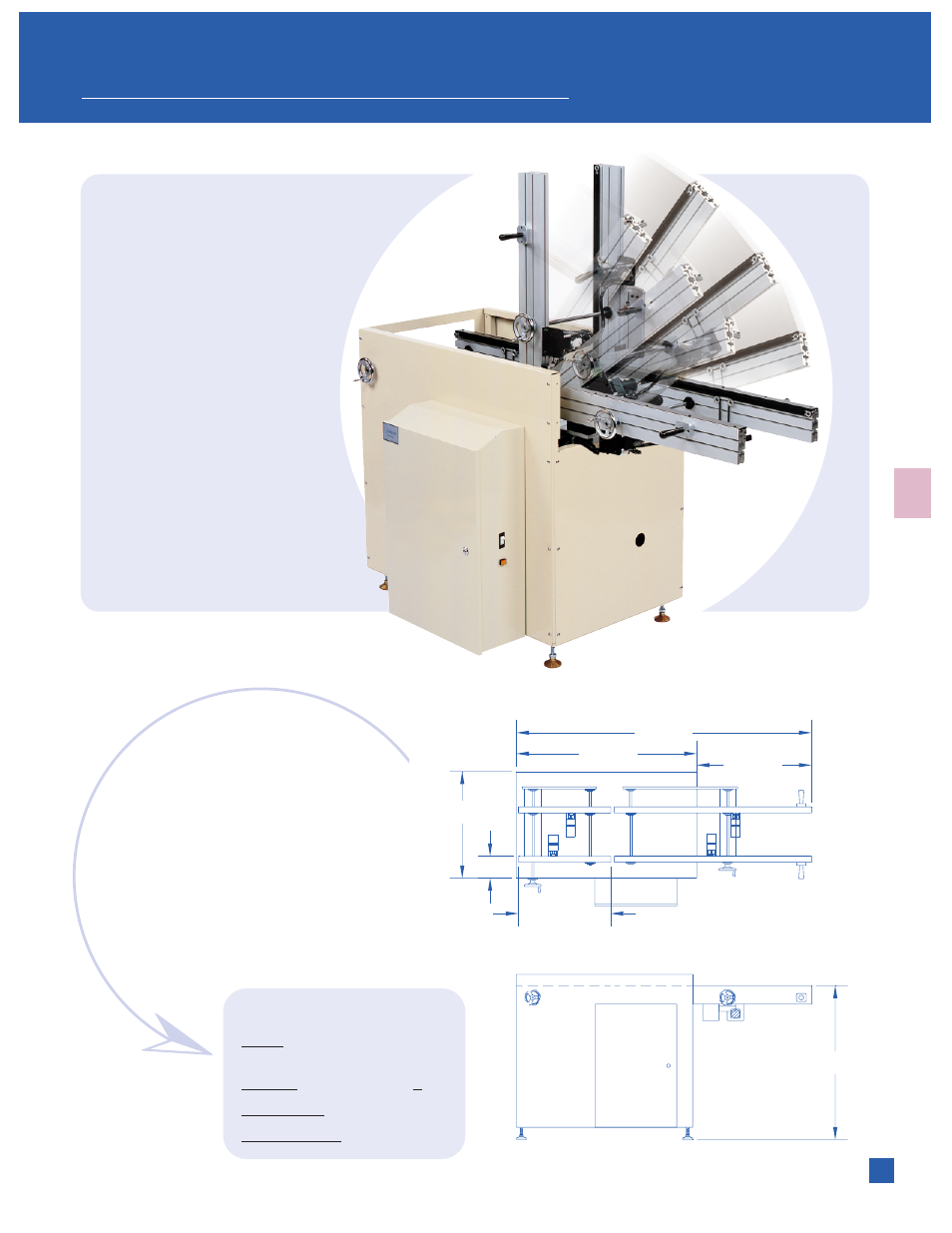

LIFT GATE CONVEYOR 72 INCH SMTS
STANDARD FEATURES:
• 28” Aisle Opening
• Gate is Opened Manually by Lifting Gate on
Either Side
• Pneumatic Lock During PCB Transfer
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .100” (.060” min)
• Hand Crank Width Adjust = 2.0” - 16.0”
• 1/2” Steel Welded Frame
• 2 Conveyor Drive Sections
OPTIONS:
• 18” x 20”,21” x 24”,24” x 28” PCB Capability
• Speed Control
• Speed Control Slow Down
• Pause/Walk Button
• Auto Width Adjust
• 32” Line Height
• Photo Eyes for SMEMA Communications
• Left Opening Aisle
5.375"
37.500"
22.500"
26.000"
44.000"
72.000"
28.000"
