Pn: fifo-1.2m-60, Fifo buffer 1.2 meter 60 pcb capacity smts, Standard specifications

background image

PCB Size

Min: 2.0” x 4.0”
Max: 16.0” x 18.0”

PCB Height

37.5 Inches + 2”

Air Requirement

.3 cfm @ 65 PSI

Power Requirement 220 VAC, 20A

Cycle Time

8-24 Seconds
(High Speed 6-18 Seconds)

Capacity

60 PCB’s on a .800” Pitch

Weight Capacity

150 lbs.

STANDARD SPECIFICATIONS:

17

PN: FIFO-1.2M-60

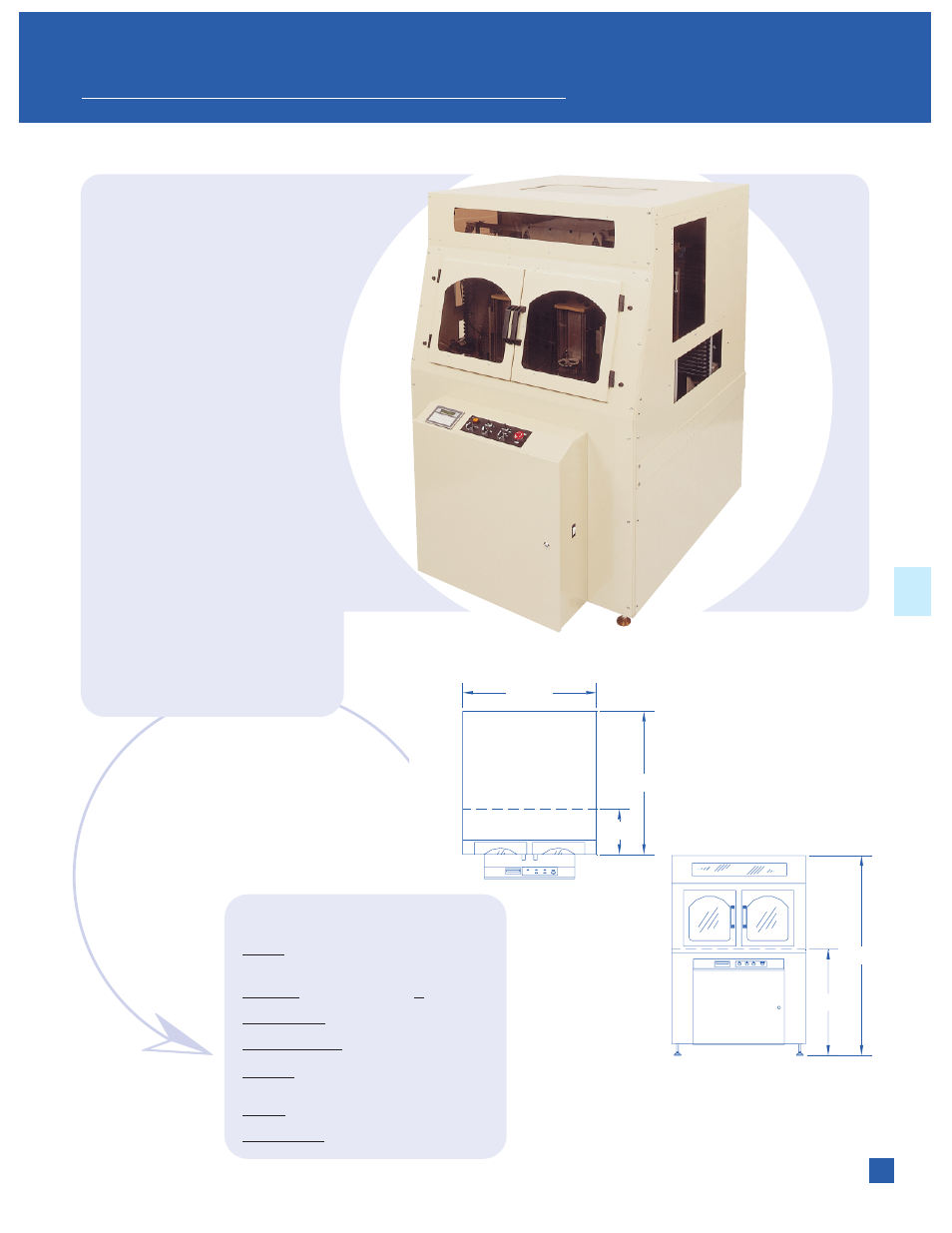

FIFO BUFFER 1.2 METER 60 PCB CAPACITY SMTS

STANDARD FEATURES:

• Vertical FIFO/LIFO/Pass Through
• Each Buffer Position Consists of a Moving Belt

Surface to Provide Smooth Transition In and
Out of the Buffer

• The Vertical Magazine Consist of 30 Levels,

Each has Two Independent Drive
Conveyors, thus 60 PCB Capacity

• Adjustable PCB Dwell Time for Cooling
• Disable Feed to Oven Feature if Buffer

is Full

• Operator Interface Control Panel
• Board Edge Clearance of .118”
• Totally Enclosed for Safety with

Interlocked Doors

• Servo Z-Axis (Elevator)
• Auto/Manual Switches on Control Panel
• PLC Controls with SMEMA Cables
• 5/8” Steel Base
• Push Button Width Adjust 2.0” - 16.0”

OPTIONS:

• 18.0” X 20.0” PCB Capability
• Warning Light with Alarm
• Cooling Fans
• Light Tower
• High Speed (6-18 Seconds)

37.500"

70.500"

50.500"

16.000"

47.240"
