Conveyor Technologies TT-30I - Manual

PCB Size Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height 37.5 Inches + 2”
Power Requirement 110 VAC, 15A
Cycle Time 11 Seconds
STANDARD SPECIFICATIONS:
23
PN: TT-30I

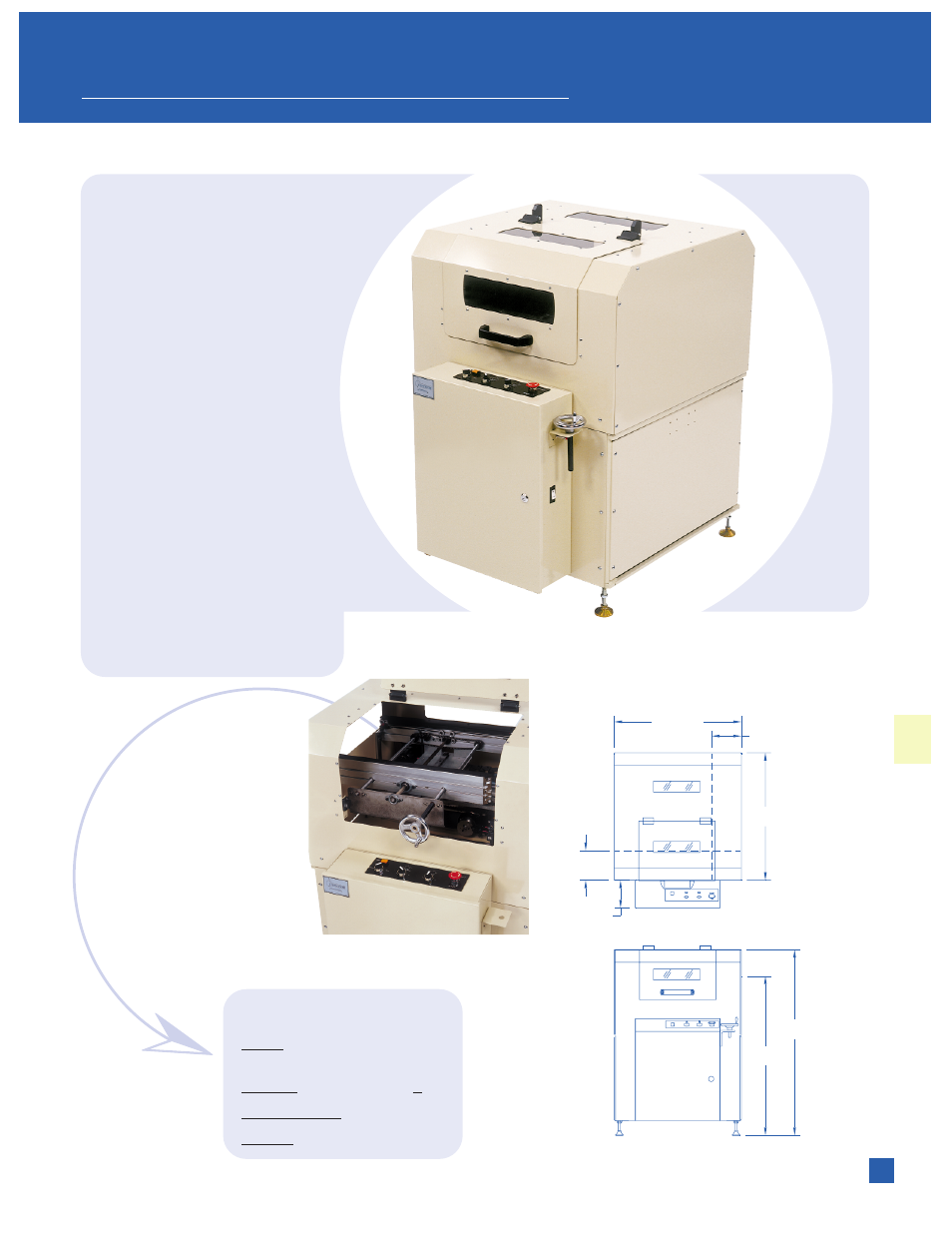

TURN TABLE SMTS
STANDARD FEATURES:
• Motorized Cam Drive for Rotation
• Edges of Conveyor are Flush with Edges of
Adjacent Machines During Transfer
• Select Flow Direction via Control Panel
• Totally Enclosed for Safety with
Interlocked Door
• Access Door Top/Front and Access Panel
on Back
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .100” (.060” min)
• Hand Crank Width Adjust = 2.0” - 16.0”
• 1/2” Steel Welded Frame
• Capable of 12 Different Configurations
for Fixed Rail Locations
• Safety Sensors Located at Each Transfer Position
OPTIONS:
• 18” x 20”,21” x 24”,24” x 28” PCB Capability
• Light Tower for Indicating Operating Status
• Speed Control
• Pass/Fail Signals to Divert PCBs
• Auto Width Adjust
• 32” Line Height
• Remote Box
30.000"
30.000"
37.500"
43.750"
7.000"
7.000"
6.500"
