Conveyor Technologies WU-2.5M-2 User Manual

Pn: wu-2.5m-2, Walk under conveyor smts, Standard features

background image

23.626"

94.750"

81.500"

±

2.000"

4.250"

30.000"

6.750"

37.500"

63-144"

110.282"

14

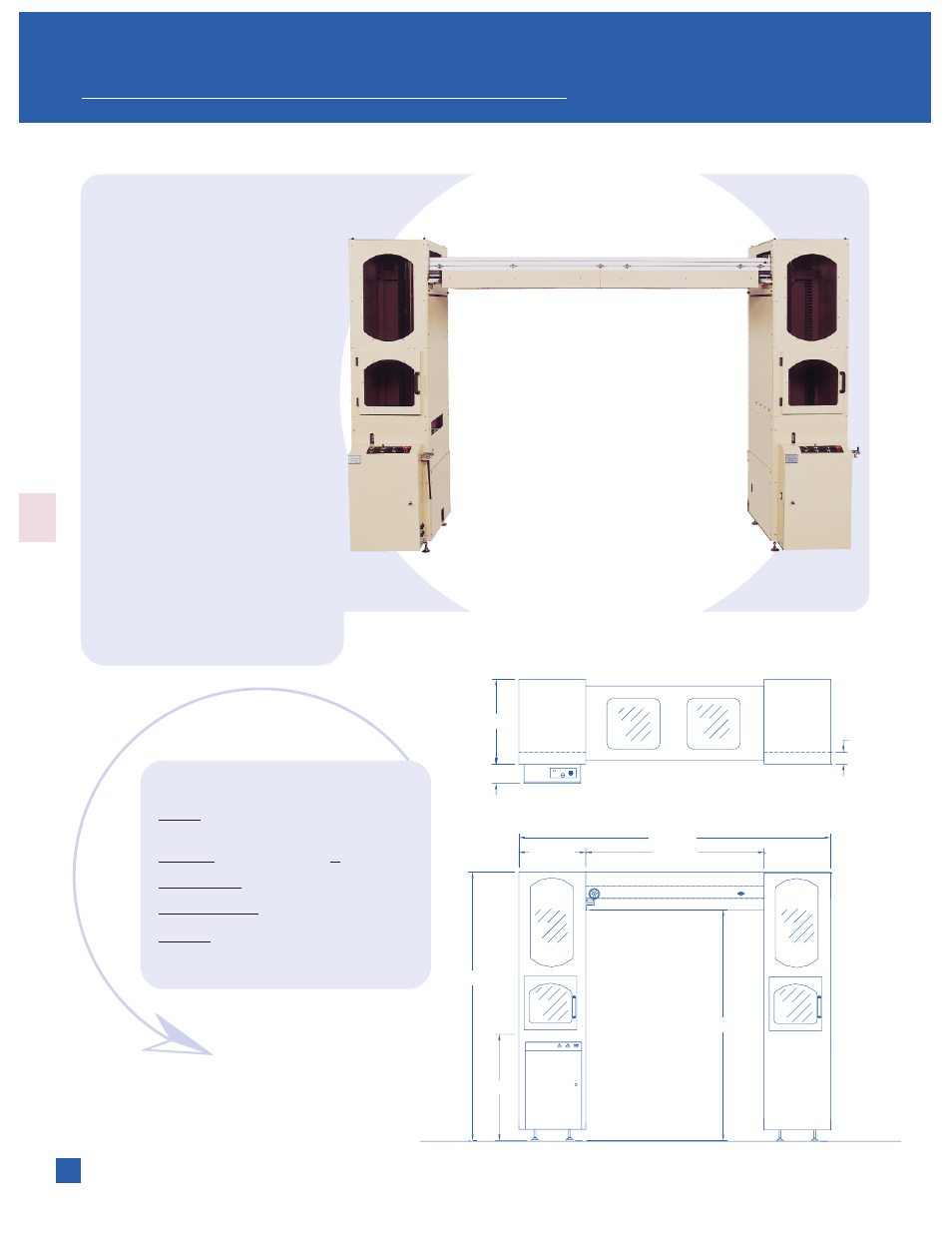

PN: WU-2.5M-2

WALK UNDER CONVEYOR SMTS

STANDARD FEATURES:

• Inline Walk Under Creates Clear Aisle
• Aisle Width is 63” (Available up to 12’ width)
• Multiple Drive Sections on Overhead Conveyor
• Pneumatic Cylinder Used for Lift

(Servo Optional)

• Totally Enclosed for Safety with

Interlocked Doors

• Access Doors on Front and Access Panel

on Back

• PLC Controls with SMEMA Cables
• Board Edge Clearance = .100” (.060” min)
• Hand Crank Width Adjust = 2.0” - 16.0”
• Auto Width Adjust for Over Head Conveyor
• 1/2” Steel Base

OPTIONS:

• 18” x 20”,21” x 24” PCB Capability
• Speed Control
• Multiple Conveyor Drive Sections on Lift and

Overhead Conveyor

• Overhead Conveyor Lengths Up to 12’
• Auto Width Adjust
• 32” Line Height

PCB Size

Min: 2.0” x 4.0”
Max: 16.0” x 18.0”

PCB Height

37.5 Inches + 2”

Air Requirement

.5 cfm @ 65 PSI

Power Requirement 110 VAC, 15A

Cycle Time

18 sec. Pneumatic
15 sec. Standard Speed Servo

9 sec. High Speed Servo

STANDARD SPECIFICATIONS:
