Conveyor Technologies CW-1M-1 User Manual
Edge belt workstation smts, Standard specifications, Standard features

PCB Size
Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height
37.5 Inches + 2”
Power Requirement 110 VAC, 15A
STANDARD SPECIFICATIONS:
8
PN: CW-LENGTH-# OF SECTIONS-#OF OPERATORS/#OF SIDES-OPTIONS

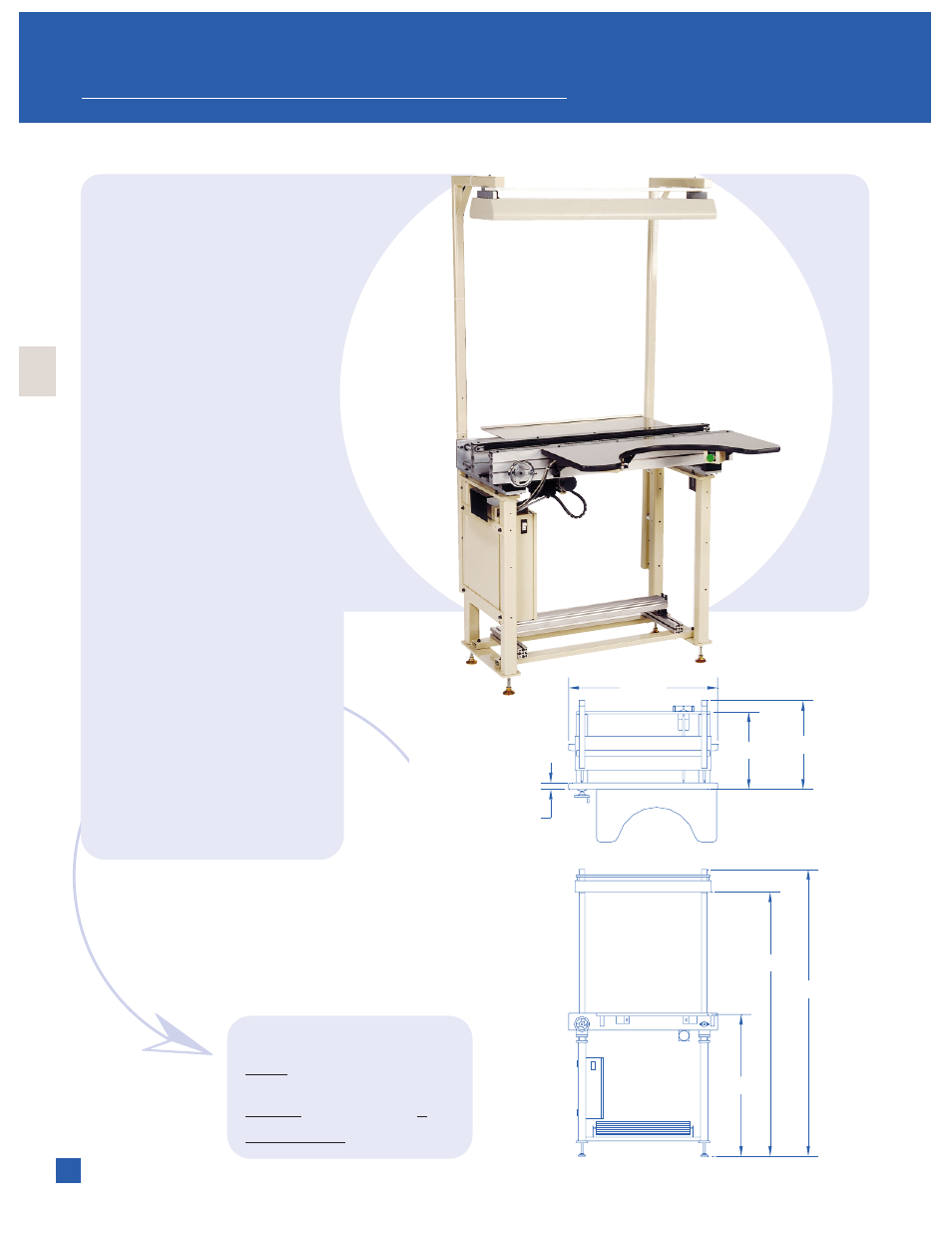

EDGE BELT WORKSTATION SMTS
STANDARD FEATURES:
• Anti-Static Work Table Centered in Front of Operator
• Auto/Manual Select Switch, Manual Mode Boards
Will Stop at Work Station Until PCB Release
Button is Pressed
• Overhead Lights
• Bin Shelf
• Ground Plug at Each Work Station
• PLC Controls with SMEMA Cables
• Power Strip for Soldering Iron, etc.
• 1/2” Steel Welded Frame
• Adjustable Footrest
• Same Standard Features and Lengths
as CC Series Conveyor
• Extendable Rails
39.370"
1.672"
20.750"
37.500"
80.000"
23.459"
LIGHT
AUTO/MAN
PCB
FOOTREST
69.820"
OPTIONS:
• Speed Control
• Speed Controls with Slow Down Option
• Mounting Brackets for Adjacent Machines
• Adj.Time Delay to Transfer to Oven
• Auto Width Adjust
• 18” x 20”,21” x 24”,24” x 28” PCB Capability
• Warning Light with Alarm
• Modesty Panels
• Document Clips
• Custom Table Top
• Lift Table for Component Placement
• Board Stop for Position Accuracy
• Monitor Stand, Keyboard Tray, CPU Shelf
• Custom Bin Holders
• Custom Shelving
• Custom Lengths & Heights
• Foot Switch
• Emergency Stop Push Button
