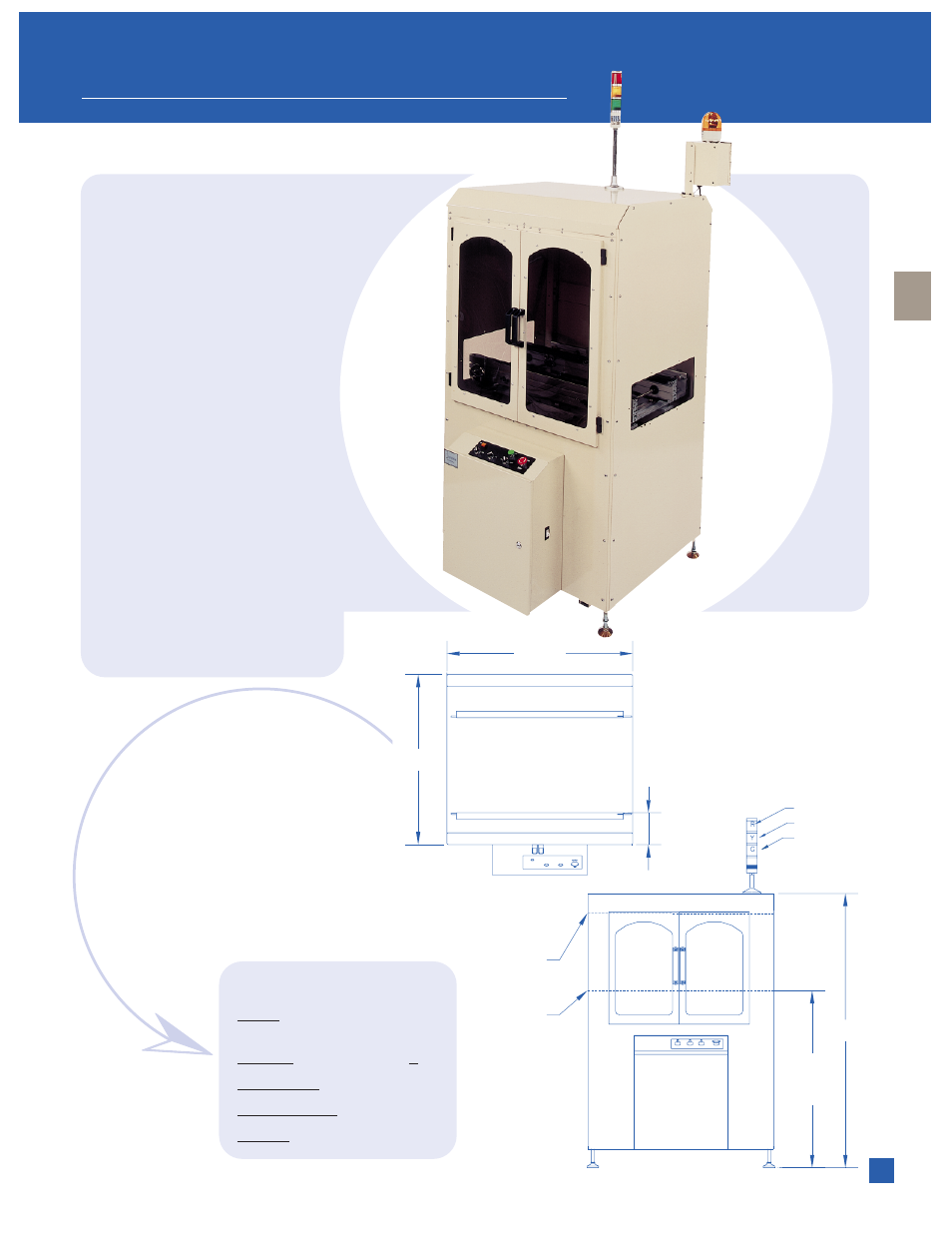

Conveyor Technologies RVC-1M-3-LT - Manual

(2) SECTION
CONVEYOR
(BUFFER)
(1) SECTION
CONVEYOR
(PASS THROUGH)
60.000"
37.500"
TRANSFER
HEIGHT
GREEN= NORMAL
RED=2 FAILED PCB'S
YELLOW= 1 FAILED PCB
39.370"
6.750"
36.000"
PCB Size Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height 37.5 Inches + 2”
Air Requirement .5 cfm @ 65 PSI
Power Requirement 110 VAC, 15A
Cycle Time 6-15 Seconds
STANDARD SPECIFICATIONS:
5
PN: RVC-1M-3-LT
REJECT VERTICAL CONVEYOR SMTS
STANDARD FEATURES:
This unit is an economical way to remove rejected
PCBs after an optical inspection machine.
• Stores 2 Rejected PCBs While Allowing the
Line to Continue
• Board Edge Clearance = .100” (.060” min)
• Hand Crank Width Adjust = 2.0”– 16.0”
• Front Access Doors for Removing Reject PCBs
• Totally Enclosed for Safety with
Interlocked Doors
• Dual Linear Slides are Used for Precise
Positioning of the Conveyor
• Pneumatic Cylinder Used for
Vertical Movement
• PLC Controls with SMEMA Cables
• Light Tower for Machine Status
• Emergency Stop Push Button
OPTIONS:
• Speed Control
• Warning Light Alarm
• Mounting Brackets for Adjacent Machines
• 18.0” x 20.0” PCB Capability
• Auto Width Adjust
