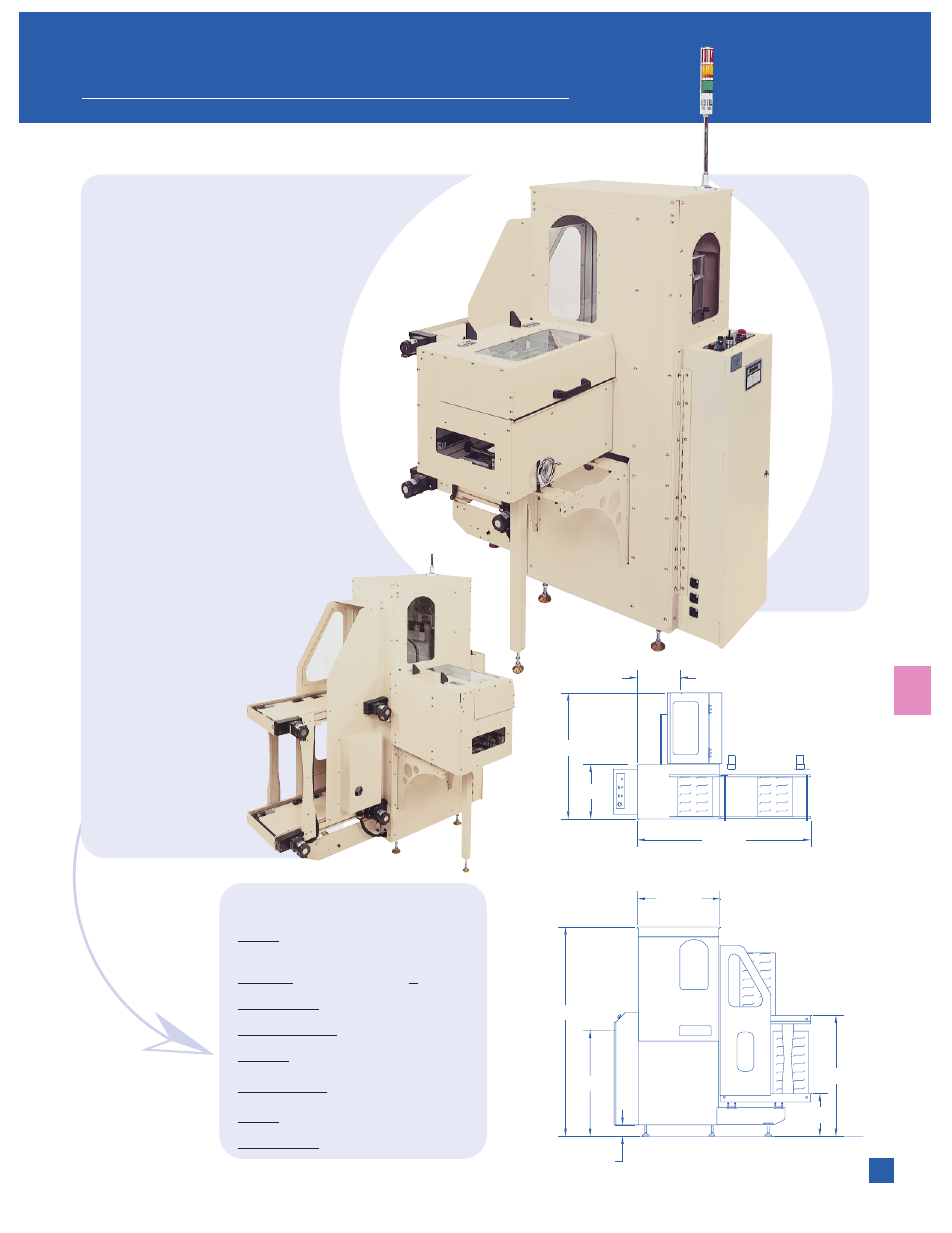

Conveyor Technologies MMAG-ALL User Manual
Pn: mmag-all, Mini mag all fifo lifo buffer smts, Standard specifications

PCB Size
Min: 2.0” x 4.0”
Max: 9.8” x 12”
PCB Height
37.5 Inches + 2”
Air Requirement
.2 cfm @ 65 PSI
Power Requirement 110 VAC, 20A
Cycle Time
7-23 Seconds
Magazine Change
30 Seconds
Capacity
50 PCB’s on 10mm Pitch
Weight Capacity
150 lbs./Magazine
STANDARD SPECIFICATIONS:
21
PN: MMAG-ALL
MINI MAG ALL FIFO LIFO BUFFER SMTS
FITS PROCESS AS:
MAGAZINE CAPACITY:
1. Middle of Line Buffer
1 in Elevator
2. Front End Magazine Loader
2 in Full Queue
3. Back End Magazine Unloader 2 In Empty Queue
STANDARD FEATURES:
• 9.8” X 12” PCBs
• Vertical FIFO/LIFO/Pass Through
• Removable Magazine
• The Vertical Magazine Consists of 50
Levels on a 10mm Pitch
• Mechanical Pusher Used to Load and
Unload PCBs
• Adjustable PCB Dwell Time for Cooling
• Disable Feed to Oven Feature if Buffer
is Full
• Operators Interface Control Panel
• Board Edge Clearance of .118”
• Totally Enclosed for Safety with
Interlocked Doors
• Servo Z-Axis (Elevator)
• Auto/Manual Switches on Control Panel
• PLC Controls with SMEMA Cables
• 5/8” Steel Base
• Hand Crank Width Adjust 2.0” - 9.8”
OPTIONS:
• Warning Light with Alarm
• Cooling Fans
• Light Tower
• High Speed (4-16 Seconds)
• 1/2 Queue Option for
Smaller Footprint
• Queue on Front or
Back Configurations
4.000"
29.625"
19.375"
62.000"
37.500"
74.250"
44.762"
15.380"
15.125"
42.875"
