Conveyor Technologies BBL-IIB User Manual
Pn: bbl-iib, Bare board loader iib smts, Standard specifications: standard features

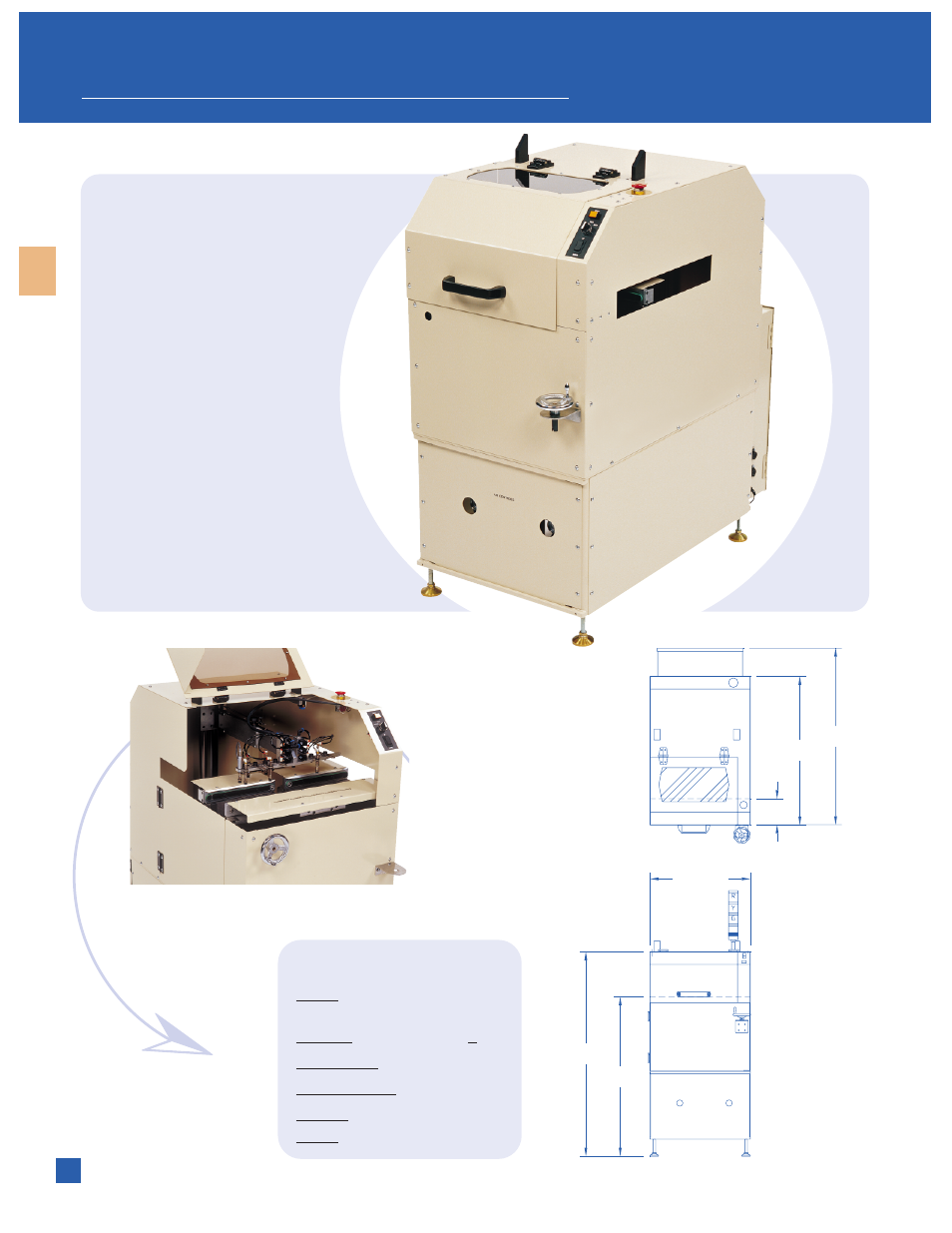

BARE BOARD LOADER IIB SMTS
PN: BBL-IIB
4
PCB Size
Min: 3.0” x 4.0”
Max: 14.0” x 18.0”
PCB Height
37.5 Inches + 2”
Air Requirement
1. 5 cfm @ 100 PSI
Power Requirement 110 VAC, 15A
Cycle Time
10 Seconds
Capacity
10 Inch Stack
STANDARD SPECIFICATIONS:
STANDARD FEATURES:
• PCBs are Loaded from Front Top and Entrance Side
• Auto/Manual/Pass-Through Switch
• 6 Independent Vacuum Generators
• Totally Enclosed for Safety with
Interlocked Doors
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .118”
• Hand Crank Width Adjust = 3.0” - 14.0”
• 1/2” Steel Welded Frame
OPTIONS:
• Light Tower for Indicating
Operating Status
• Restacker Configuration (BBL-IIB-RS)
• Optional Cups from 6-14 mm
• Auto Width Adjust
• 18.0” x 20.0” PCB Capability
(Recommend BBL-I vs. BBL-IIB)
41.545"
6.125"
35.000"
23.622"
48.116"
37.500"
