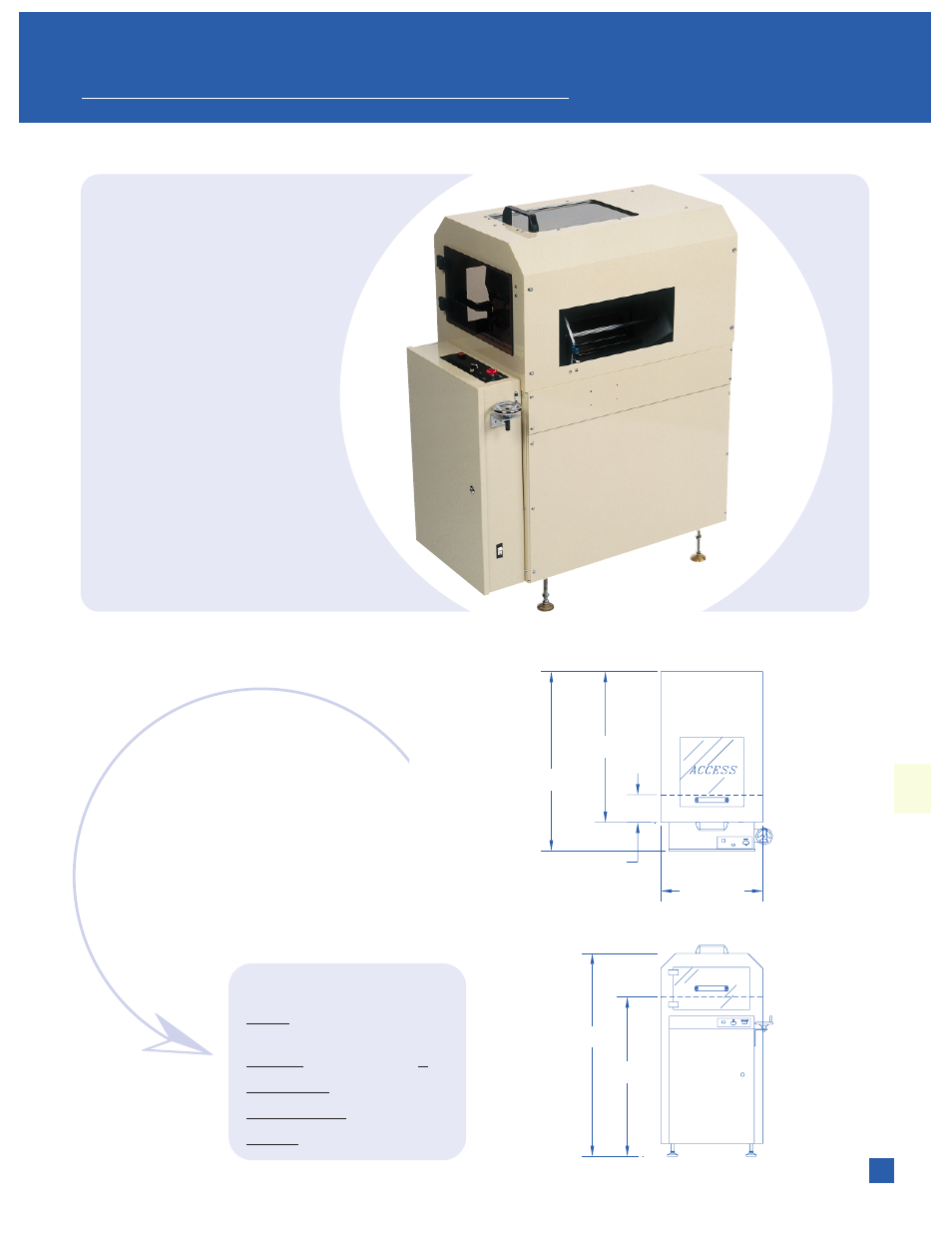

Conveyor Technologies FL-24I User Manual
Pn:fl-24i, Flip station smts, Standard specifications
PCB Size
Min: 2.0” x 4.0”
Max: 16.0” x 18.0”
PCB Height
37.5 Inches + 2”
Air Requirement
.2 cfm @ 65 PSI
Power Requirement 110 VAC, 15A
Cycle Time
11 Seconds
STANDARD SPECIFICATIONS:
25
PN:FL-24I
FLIP STATION SMTS
STANDARD FEATURES:
• Single Flip per Cycle
• Pneumatic Cam Drive for Rotation
• Pass Through Mode
• Totally Enclosed for Safety with
Interlocked Doors
• Access Doors on Front and Top with Access
Panel on Back
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .125”
• Hand Crank Width Adjust = 2.0” - 16.0”
• 1/2” Steel Base Construction
• Safety Sensors Located at Entrance and Exit
OPTIONS:
• 18” X 20”,21” X 24”,24” X 28” PCB Capability
• Light Tower for Indicating Operating Status
• Speed Control
• 32” Line Height
• Auto Width Adjust
24.000"
37.500"
47.750"
35.500"
42.250"
6.500"
