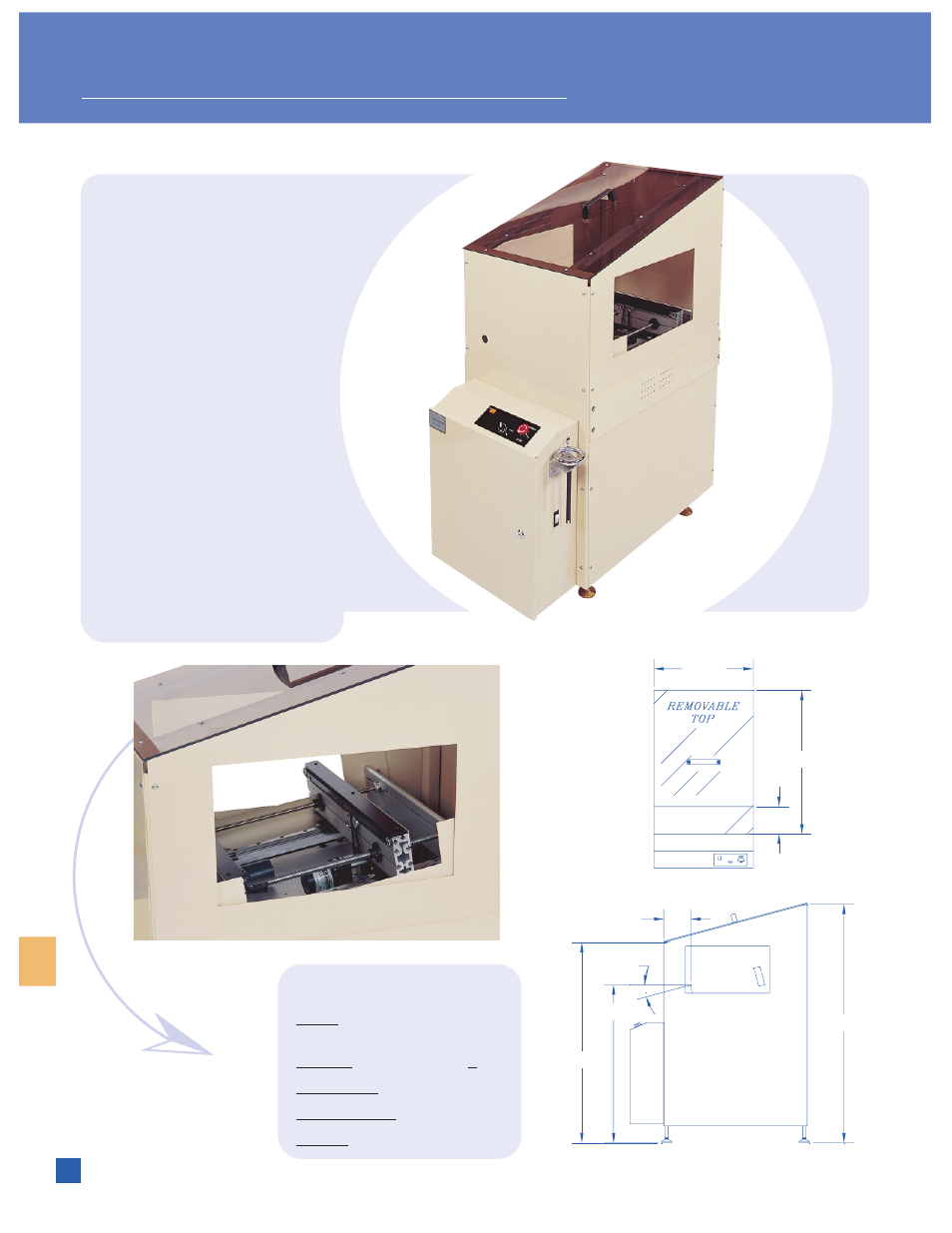

Conveyor Technologies TLTC-.6M-0/15 - Manual

PCB Size Min: 2.0”x 4.0”
Max: 16.0”x 18.0”
PCB Height 37.5 Inches + 2”
Air Requirement .2 cfm @ 40 PSI
Power Requirement 110 VAC, 15A
Cycle Time
8-11 Seconds
STANDARD SPECIFIC ATIONS:
PN:TLTC-.6M-0/15
TILT CONVEYOR THS
STANDARD FEATURES:
• Tilts Product to 15 or 30 Degree Angle Front to Back
to Load or Unload Workstations
• Smooth Pneumatic Tilt Operation for Loose
Through Hole Components
• Totally Enclosed for Safety with
Interlocked Doors
• Access Door on Top
• PLC Controls with SMEMA Cables
• Board Edge Clearance = .100”(.060”min)
• Hand Crank Width Adjust = 2.0”- 16.0”
• 1/2”Steel Welded Base
• Safety Sensor On Entrance and Exit
OPTIONS:
• 18”x 20”,21”x 24”,24”x 28”PCB Capability
• Light Tower for Indicating Operating Status
• Speed Control
• Elevator Feature for Line Height and Tilt
Change in Same Unit
• Auto Width Adjust
• 32”Line Height
• 30 Degree Angle
23.622"
37.500"
47.500"
56.625"
34.000"
6.500"
6.500"
15 ∞"
32
