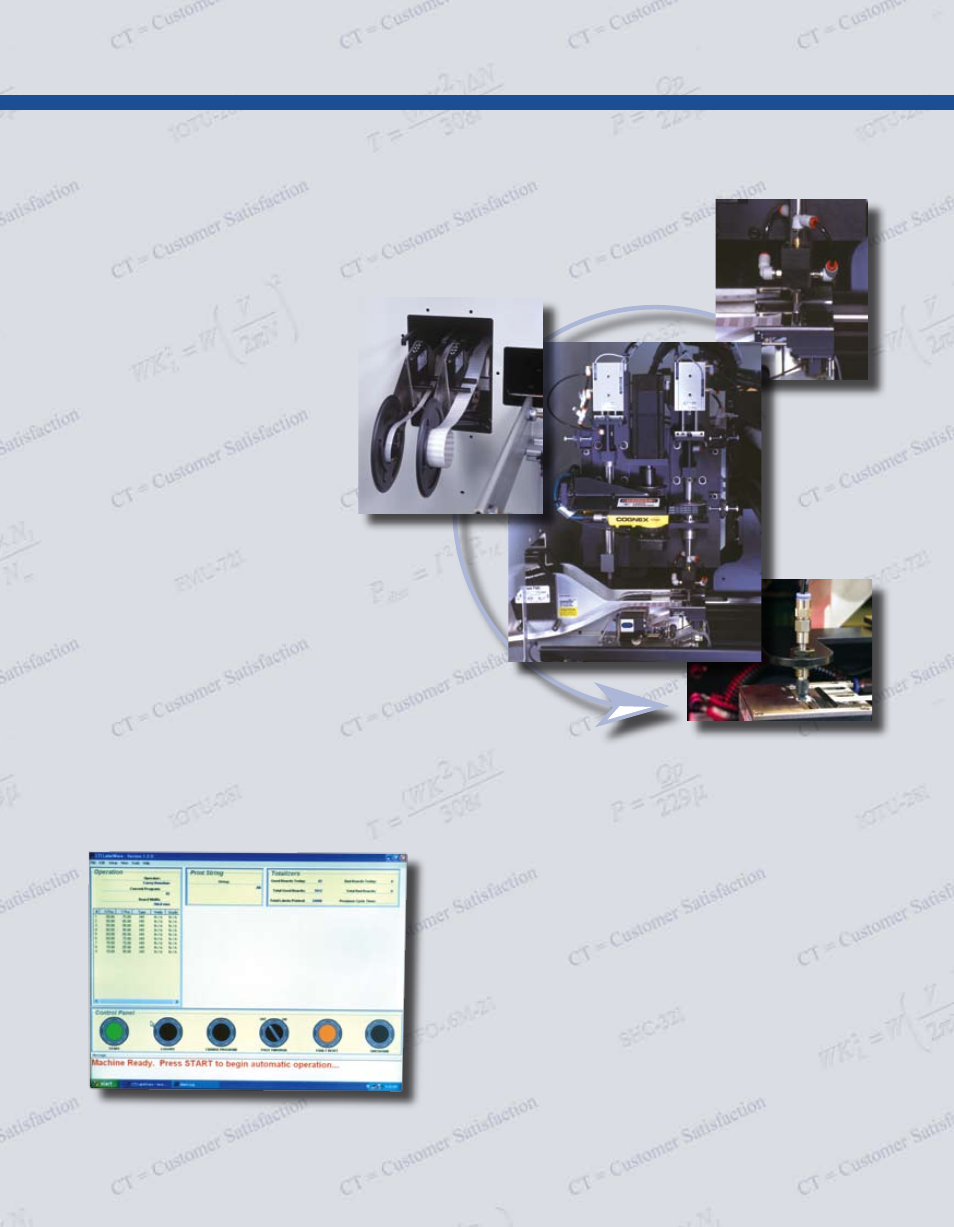

Conveyor Technologies LABEL APPLICATOR - Manual (Page 3)

STANDARD FEATURES:
•
Thermal Transfer Printer:
• Optional Models;
• DataMax 14604
• ID Technologies 250
• Intermec ( EZcoder 3240 )
•
TYPICAL PRINTER FEATURES;
• 600 Dots Per Inch
• 4.16” Maximum Print Width
• 4.65” Maximum Media Width
• Coated Side Out Ribbon Supply
• RS-232 Serial and Centronics
Parallel Interfaces
• Front Panel LCD Display
• Standard Memory; 16 MB RAM
• Flash Upgradeable Firmware
• DMX- 100 Internal Ethernet Interface
•
Cycle Time:
• Application Dependant
• Dual Nozzles; 1.9 Second Cycle Time
Placement Capacity:
•
X & Y Automatic Gantry
•
18” X 20” Platform (Std. in single head
configuration)
•
High Speed Servo
•
Pneumatic Z Axis
•
Conveyor Features:
• 1 Meter
• 1 Section (Multiple Sections Optional)
• Lift and Clamp Conveyor Rails (Z Axis)
• 6.35 mm Edge Belt
• Steel Welded Frame
• Left to Right Flow
•
Nozzle Features:
• Single Nozzle (Standard)
• See Nozzle Configurations
LABEL APPLICATOR SYSTEMS
•
Single 0 to 90 degree rotation
•
Single Incremental Theta
•
Dual Non Rotating
•
Dual 0 to 90 degree rotation
•
Dual Incremental rotation
NOZZLE CONFIGURATIONS:
Standard Controls:
• PLC Controls with SMEMA interface (Standard)
• Programmable Positions (up to 2000
programmable positions)
• 10 Inch LCD Display Monitor
• Capable of printing
• Alpha Numeric Text
• 1D code 3 of 9 or Code 128
• 2D DataMatrix (Fixed Data per Program,
serial number increment only)
Optional:
• PC Based Controls
• 15” Monitor w/keyboard
• Operator Options:
• Begin w/new Serial Number
• Begin from Last
• Teach new program
CTI Easy Teach Software:
5313 WOMACK ROAD SANFORD, NC 27330 / OFFICE: (919) 776 - 7227 - FAX: (919) 774 - 3097
www.conveyor-technologies.com
