Print zones
Print zones for receipt station 80 mm paper

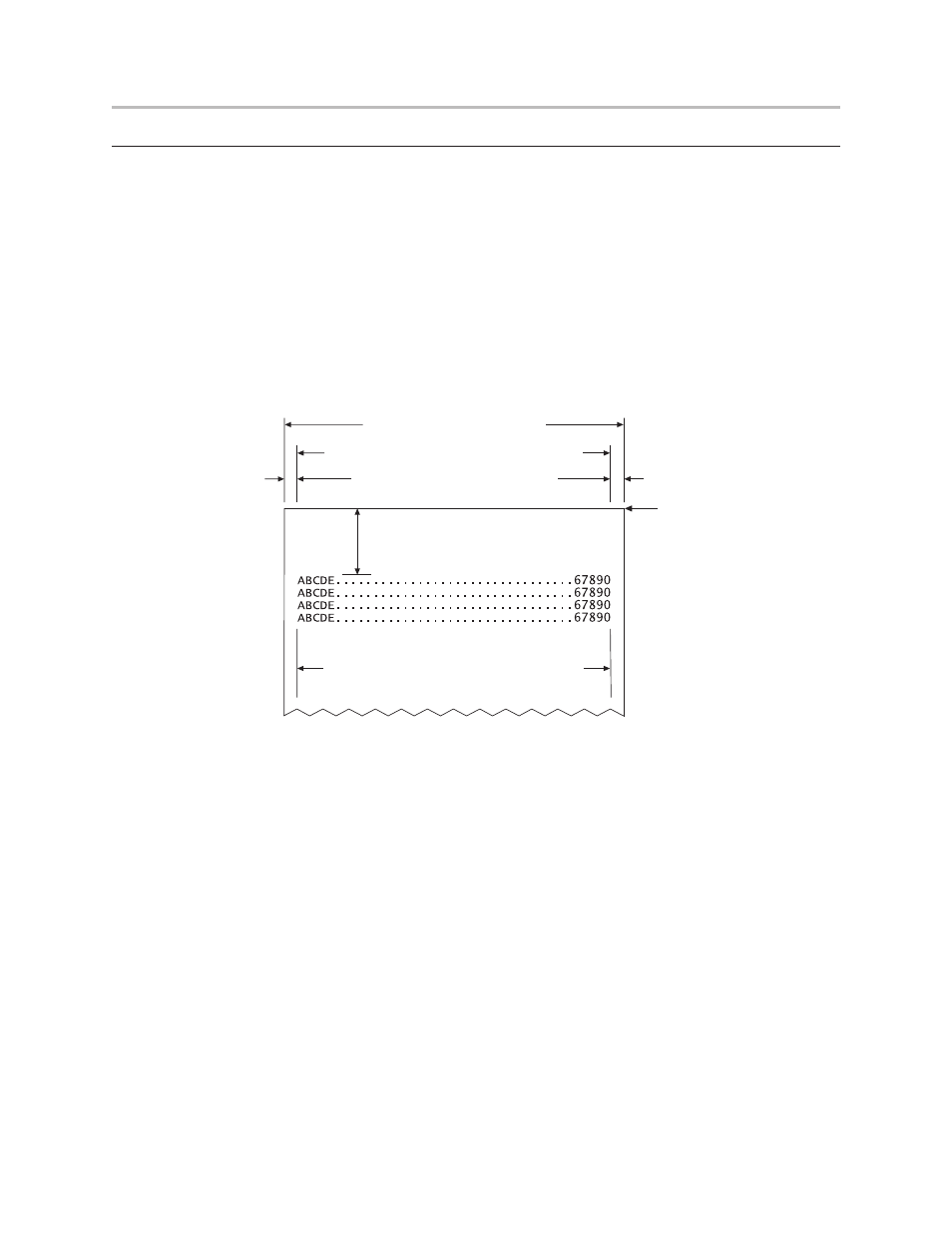

Specifications of print zone for receipt station 80 mm paper:
• 576 dots (addressable) @ 8 dots/mm,
• Top margin to manual tear-off:
centered on 80 mm
17.8 mm (0.70 inches)
• Minimum margins for standard print:
• Top margin to knife cut:
2.0 mm (.079 inches)
19.0 mm (0.75 inches)
Note: The application centers 44 standard character cells (13 × 24 dots), or 56 compressed character cells (10 × 24 dots),
or 576 addressable bits of graphics across an 80 mm wide receipt. Minimum print line height is 24 dots for text or graphics.
Standard print line spacing is 27 dots (i.e., 3 extra row dots).
The A776 adds a 27 dot high font, so standard print spacing is 30 dots.
!
"#
$%# !
& #
