IP Surveillance system
5. Configuration

page-47

5

5

.

.

3

3

S

S

e

e

t

t

t

t

i

i

n

n

g

g

-

-

I

I

/

/

O

O

D

D

e

e

v

v

i

i

c

c

e

e

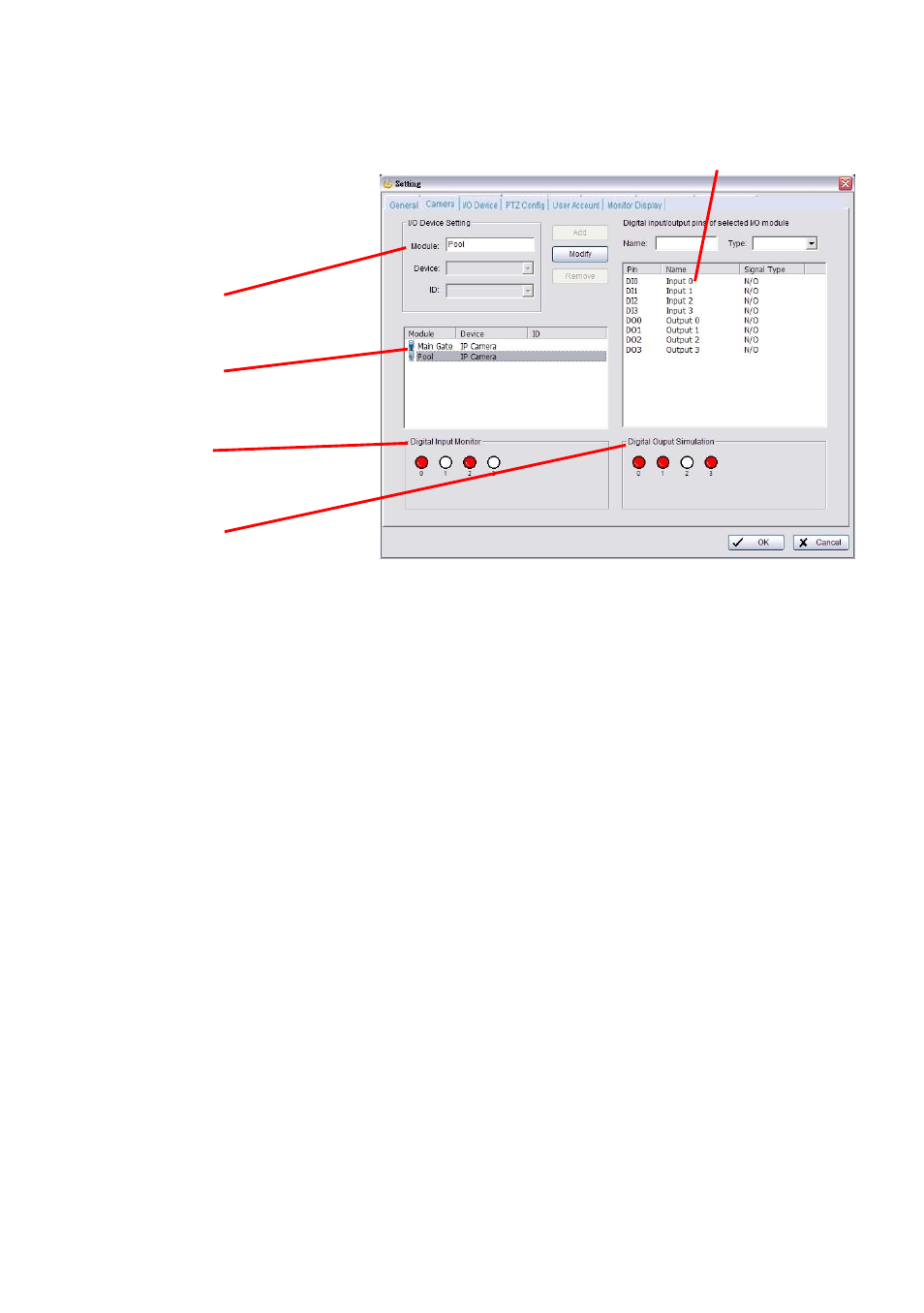

Device Setting






Module Setting


List of devices


Input Monitor



Output Monitor




Module Setting:
Name the module device and ID that has been connecting the
digital input/output device(s) to your system.

Device: This column displays the device(s) already installed to the system.

ID: Select the number of the I/O port to which you plug the ribbon cable.

Input Monitor: The device(s) is turned on if the dot is in red. By triggering the
digital input device, the related icon will light up. This is used to check if the
device is correctly connected or not.

Output Monitor: The device(s) is turned on if the dot is in red. By clicking on the
icon, you may trigger the digital device connecting to the system. This can be
used to test if the output device is correctly connected.

Device Setting

Name: Insert the name of the device (input and output).
Type: Select the device type from the drop-down menu.
N/O: Normal Open.
N/C: Normal Close.
