7 encoding option panel – INTELLINET NETWORK IDC-767IR Video Surveillance Software Manual User Manual
Page 34
IP Surveillance system
3. Schedule
page-33
3
3
.
.
7
7
E
E
n
n
c
c
o
o
d
d
i
i
n
n
g
g
O
O
p
p
t
t
i
i
o
o
n
n
P
P
a
a
n
n
e
e
l
l

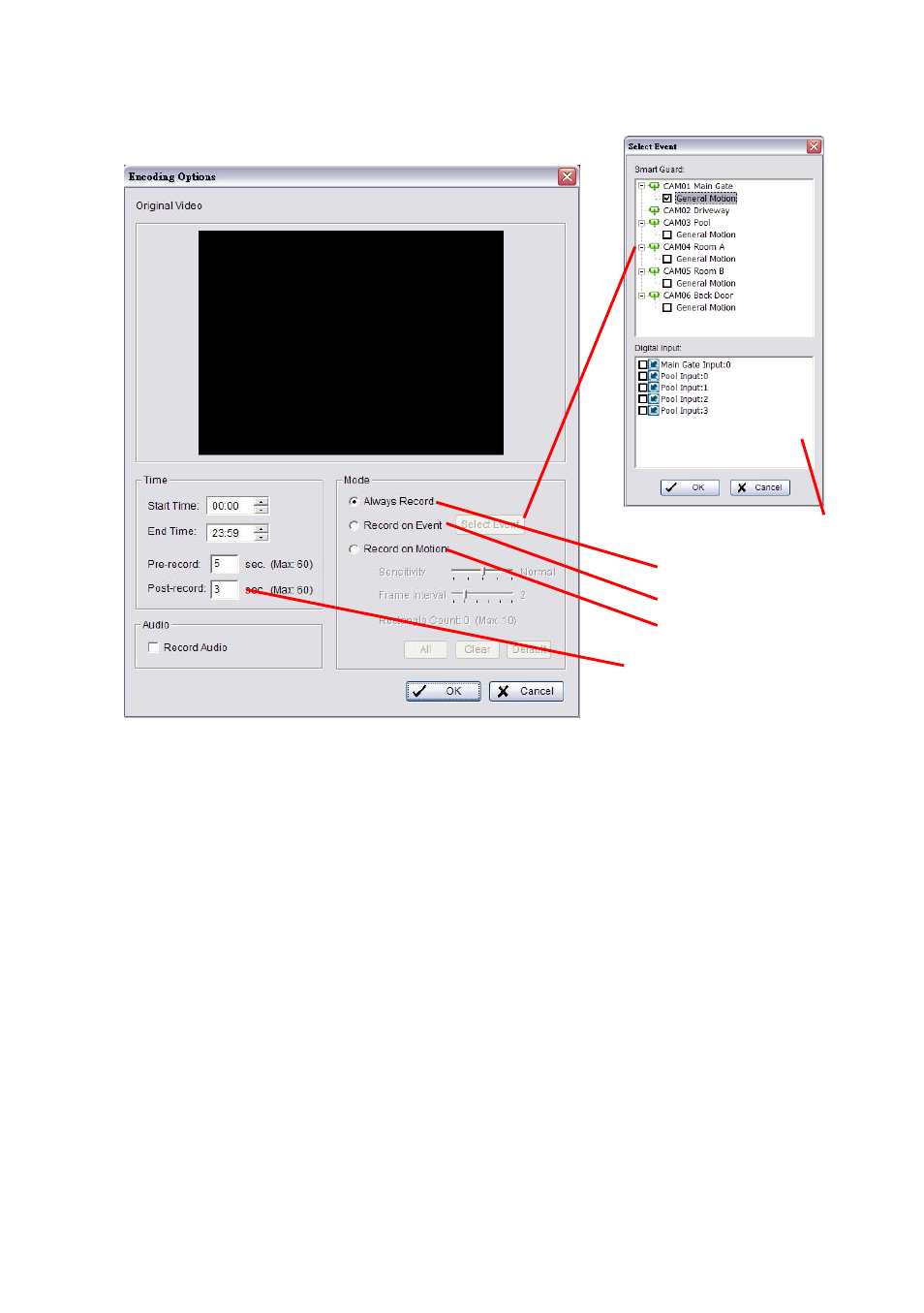

Always Record
Record on Event
Record on Motion
Pre-record/ Post-record
Select Event Panel
3.7.1 Always Record: Select this option to record the video at all time.
3.7.2 Record on Event (Unable in bundle version): Select this option to obtain
the Select Event panel. From the Smart Guard list, check the box of the
camera(s) that you want to trigger the recording action. Click OK to complete the
setting.
3.7.3 Record on Motion: Select this option to start recording when there are
motions detected. To detect Motion, you have to define a detection zone.
Left-click and drag the mouse to draw a detection zone. You may define more
than one zone on the screen by repeating the same process. User can also click
on “All” button to select the entire detection zone. You may adjust the sensitivity
and the frame interval.
3.7.4 Pre-record/ Post-record Time: The pre-record/ post-record function saves
the recording data accordingly. For instance, to set up a 5 second pre-record
time means the system will start saving the recording data 5 seconds before the
event happens.
