VoICE IP Interface User Manual 2 - 1 9
Port Status LEDs 1 - 4 indicate the status of the related port.
The LED indication states are:
• Off - The port is not enabled.
• Flashing Green - the port is enabled but not connected.
• Steady Green - the port is connected to a VoICE unit.
8. Click on the ‘Status’ and then ‘Voice’ tabs.
9. You should now see on the statistics page that all enabled
connections show ‘connected’:

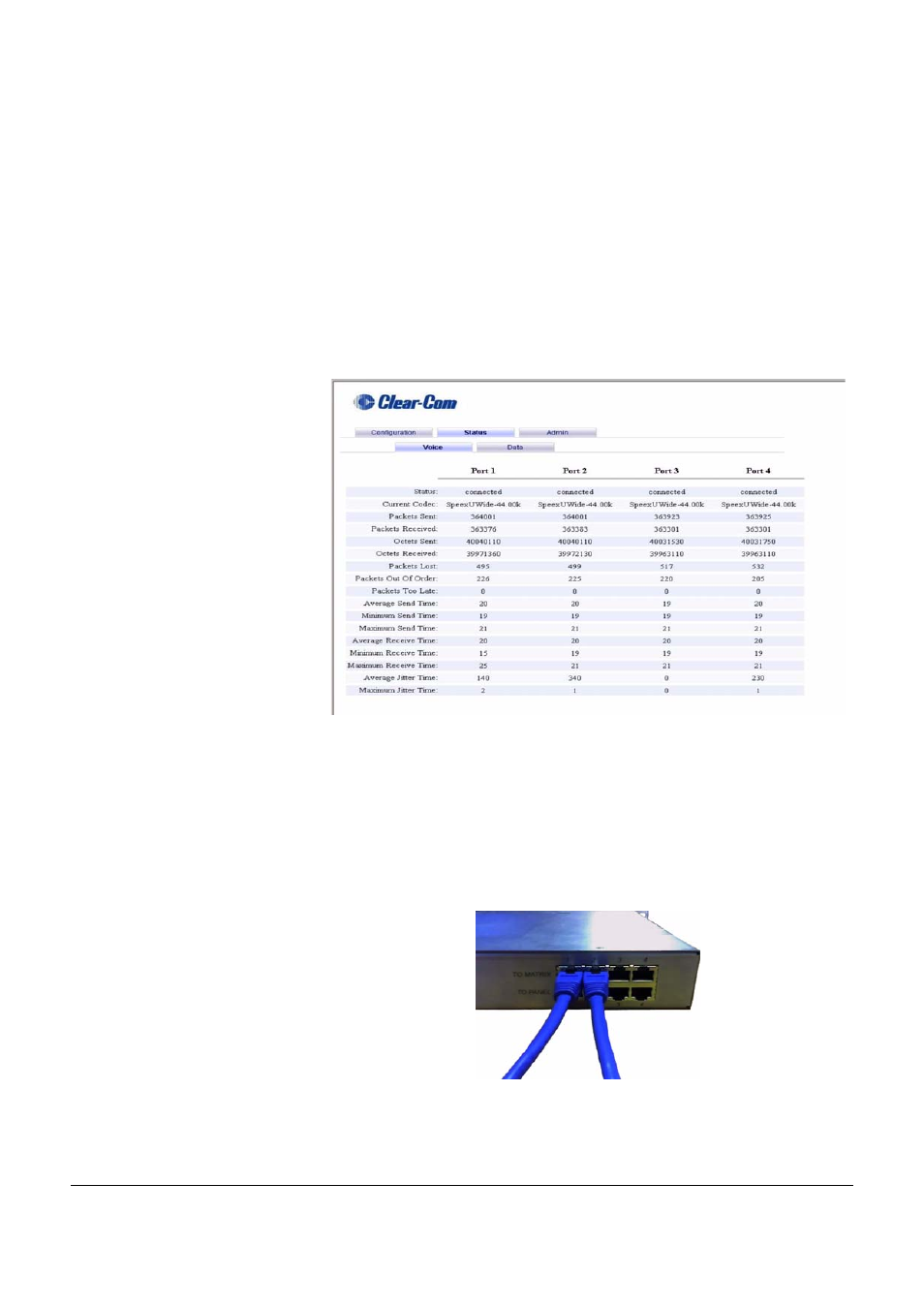

Figure 2-30: Statistics Screen
Connecting to a matrix
1. For each port required, connect the To Matrix row of connectors to
a matrix using a standard straight RJ45 - RJ45 cable as one would
directly connect a matrix to a panel with.
2. Configure the matrix ports for panels.
Figure 2-31: Matrix Connection
