VoICE IP Interface User Manual
2 - 1 6

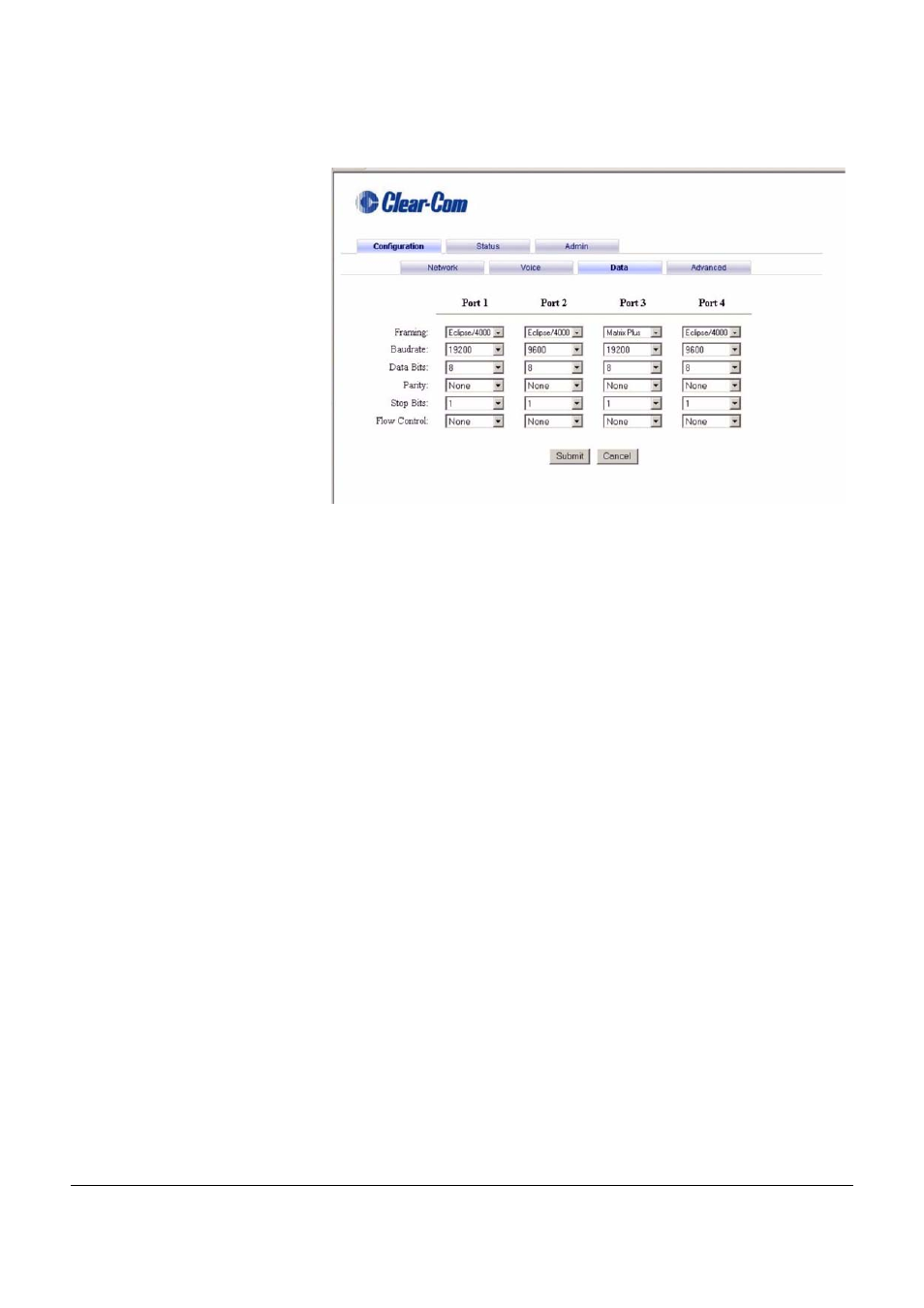

Figure 2-26: Serial Port Configuration
7. Check that the Framing is correctly set. This option controls the
Framing for ethernet packets and must be correctly set to
communicate with matrices.
i. This option is irrelevant if the link does not use intercom
panels.
ii. Select ‘ClearCom’ if the link is to an Eclipse or 4000 Series II
Matrix
iii. Select ‘MatrixPlus’ if the link is to a Matrix Plus 3 system.
Ensure that the baud rate at the Matrix Plus 3 is set to the
same rate as the unit.
iv. Select ‘None’ if the port is not connected to an Eclipse, 4000
or Matrix Plus 3 system. The other options may be set as
required to communicate with the device.
8. Select 19200 for the VGC Eclipse series (Eclipse Omega, Eclipse
Median, Eclipse Pico, Eclipse 208, Eclipse 32).
Check that the Serial Baudrate is configured for your use:
i. This option is irrelevant if the link does not use intercom
panels.
ii. Select 9600 for VGC 4000 series 2 (with a 4000 Pico, 4000
4U or 4000 9U matrix and intelligent panels).
iii. Select 19200 for the VGC Eclipse series (Eclipse Omega,
Eclipse Median, Eclipse Pico, Eclipse 208, Eclipse 32).
The remaining parameters should normally be left set to the default
values unless there is a specific known requirement for the equipment
connected to the port.
