Clear-Com VOICE2 - Manual (Page 35)

Vitec Group Communications
VoICE IP Interface User Manual 2 - 1 5

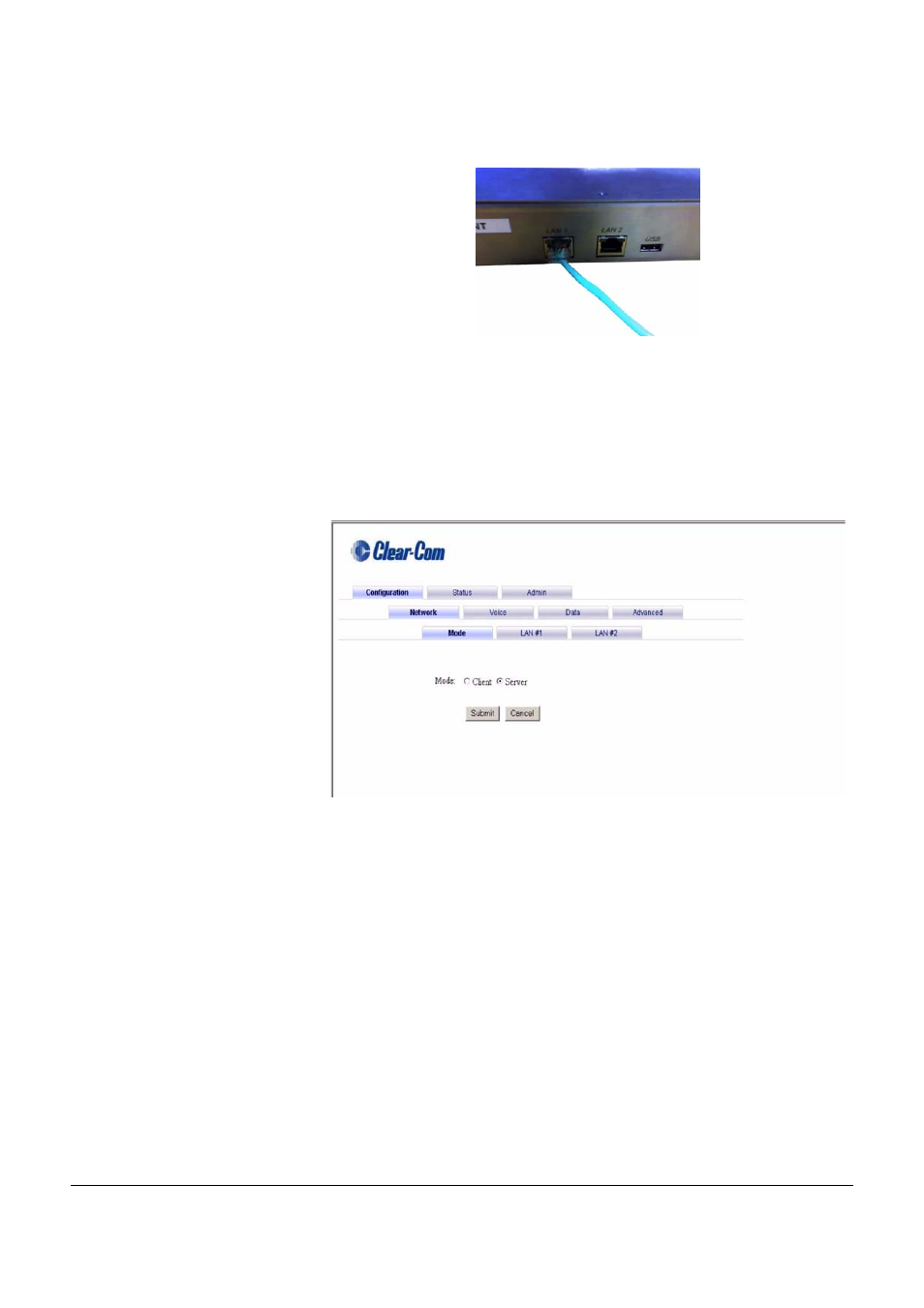

Figure 2-24: LAN Connection
2. Return the PC to its normal settings and reconnect the Ethernet
connection back to your LAN.
3. The unit should be accessible from any PC on your network – open
your browser and put the IP Address in the Address Bar.
4. You should see the main configuration page:
Figure 2-25: Configuration Setup
Note that the screenshot above is for the ‘server’ unit.
5. Click on the ‘Client’ or ‘Server’ radiobutton to configure the unit as a
client or server and click on the ‘Submit’ button.
6. Click on the ‘Configuration’ tab then the ‘Data’ tab.
