Clear-Com VOICE2 - Manual (Page 38)

Vitec Group Communications
VoICE IP Interface User Manual
2 - 1 8

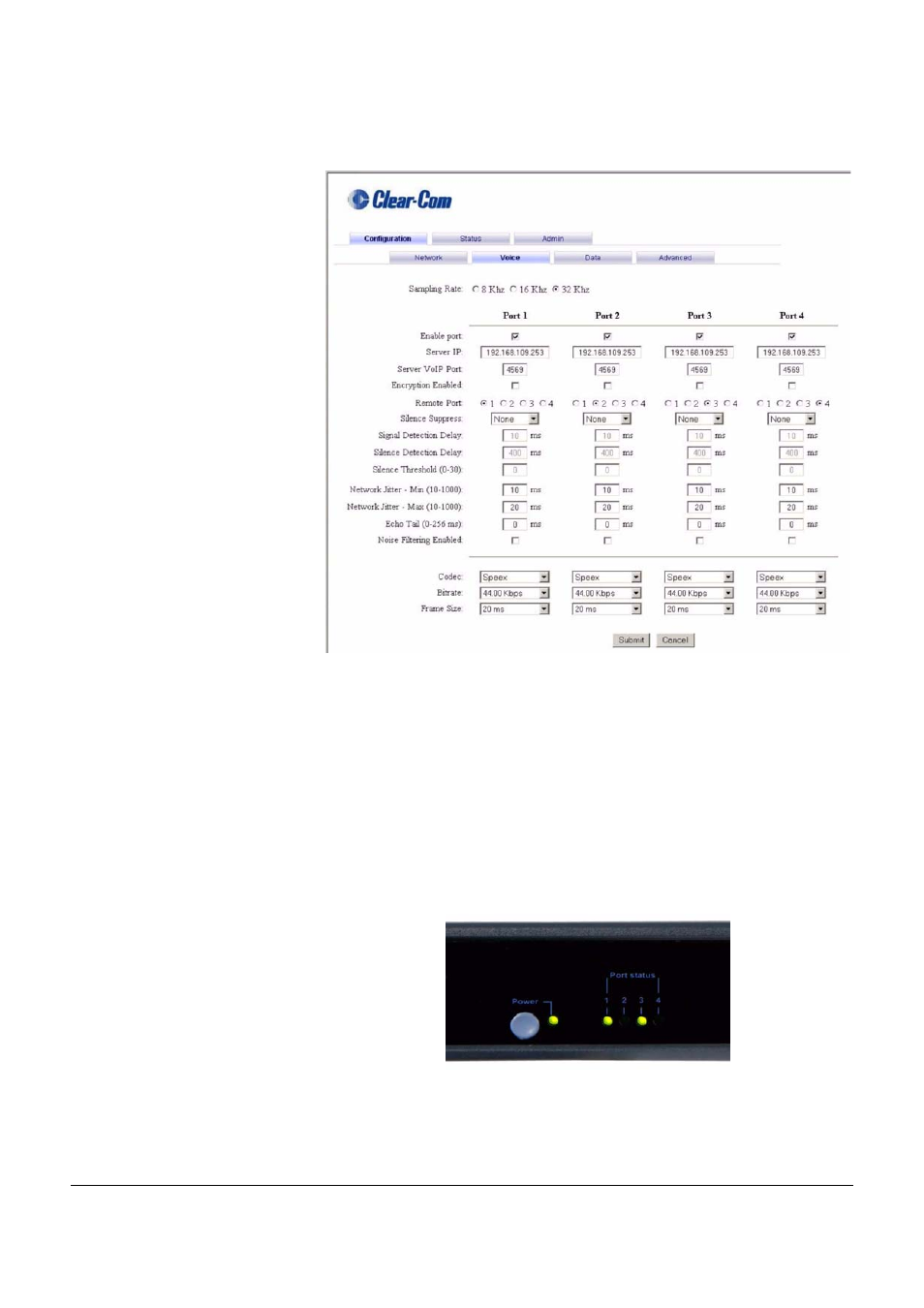

Figure 2-28: Configuration Screen
4. Note that the Client radio button is checked.
5. Enter the Server’s IP Address in the Server IP text box in the
configuration- tab for each of the ports you want to connect. Refer
to the relevant section in Chapter 3 for more information regarding
the settings on this page.
6. Click the Submit button.
7. The Client should now connect to the Server and the port status
LEDs for that port on the client and server units should illuminate to
show the port status.
Figure 2-29: Front Panel LEDs
