Clear-Com Communication Systems

V-Series AES-3 Option

© Clear-Com Communication Systems

9

PN 810388Z Rev. 2

Step 7

Use two panhead screws to fix the screening PCB to the chassis. Use the two
panhead screw and washer assemblies to fix the AES-3 card to the spacers
and the two remaining plastite screws to fix the AES-3 card to the mounting
blocks.

The completed assembly is shown in Figure 12.

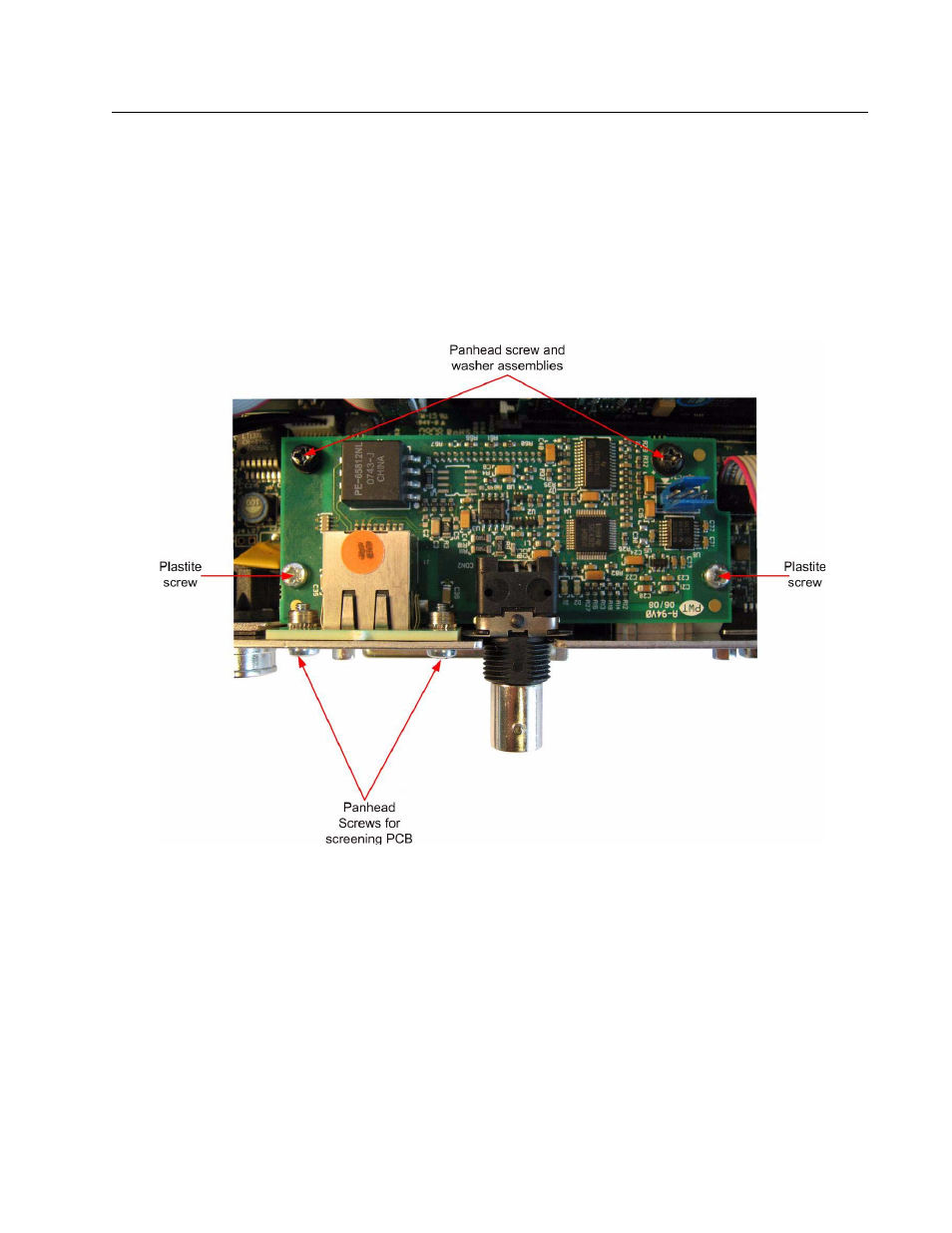

Figure 12: AES-3 Card with Mounting Screws in Rack Mount

Panel
