V-Series AES-3 Option Clear-Com Communication Systems
PN 810388Z Rev. 2 22 © Clear-Com Communication Systems

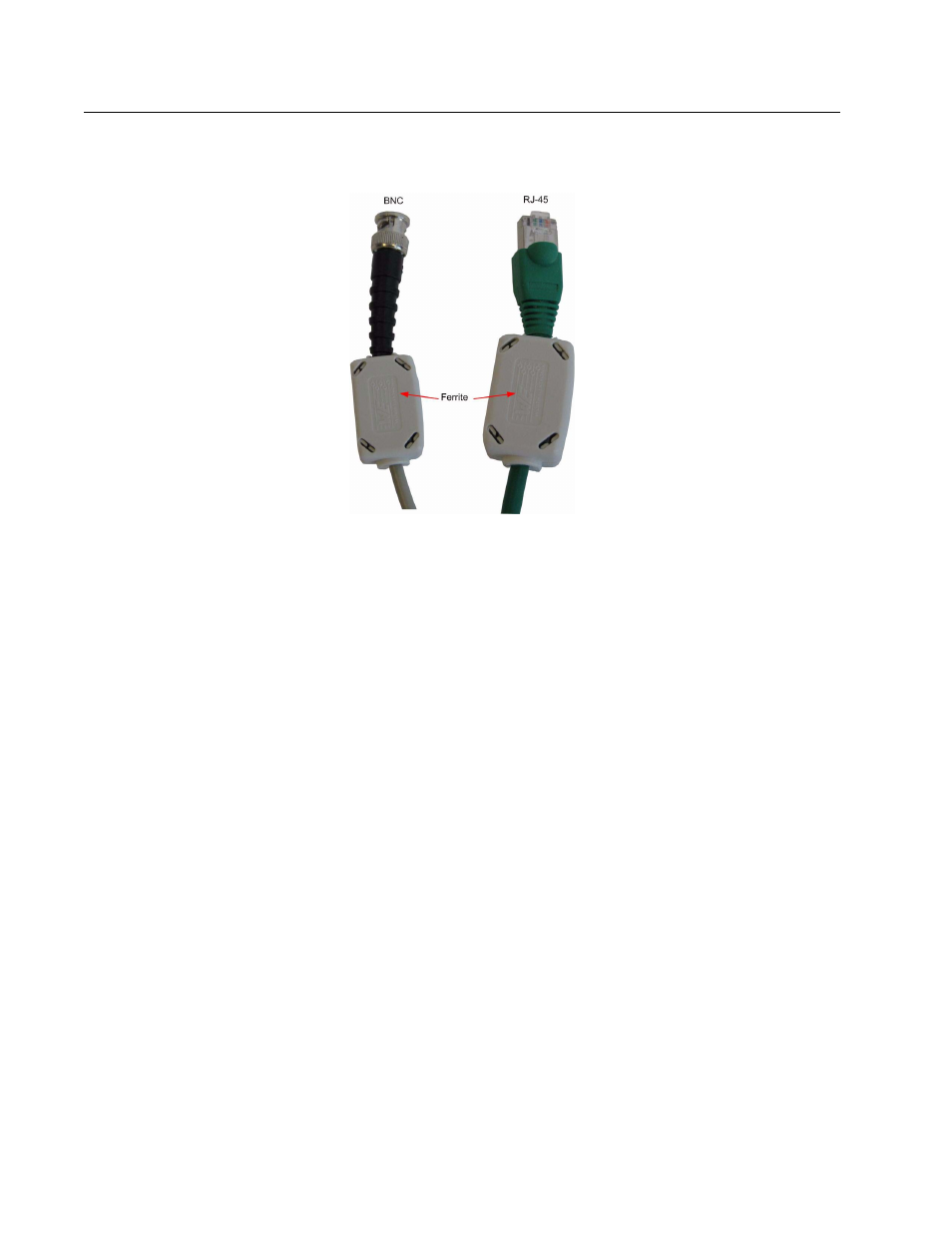

Figure 26: Ferrites Fitted to BNC and RJ-45 Cables
When a panel has been fitted with an AES-3 option card the “AES” box shown
in Figure 2 should be marked with a tick using a permanent marker to record
the modification.
