Step 7, Figure 23: aes-3 card with hex nut and washer – Clear-Com V24PDXY User Manual
Page 19
Clear-Com Communication Systems
V-Series AES-3 Option
© Clear-Com Communication Systems
19
PN 810388Z Rev. 2
Step 7
Secure the BNC connector to the panel rear using the BNC Locking washer
and hex nut.
Use the two panhead screws to fix the screening PCB to the chassis.

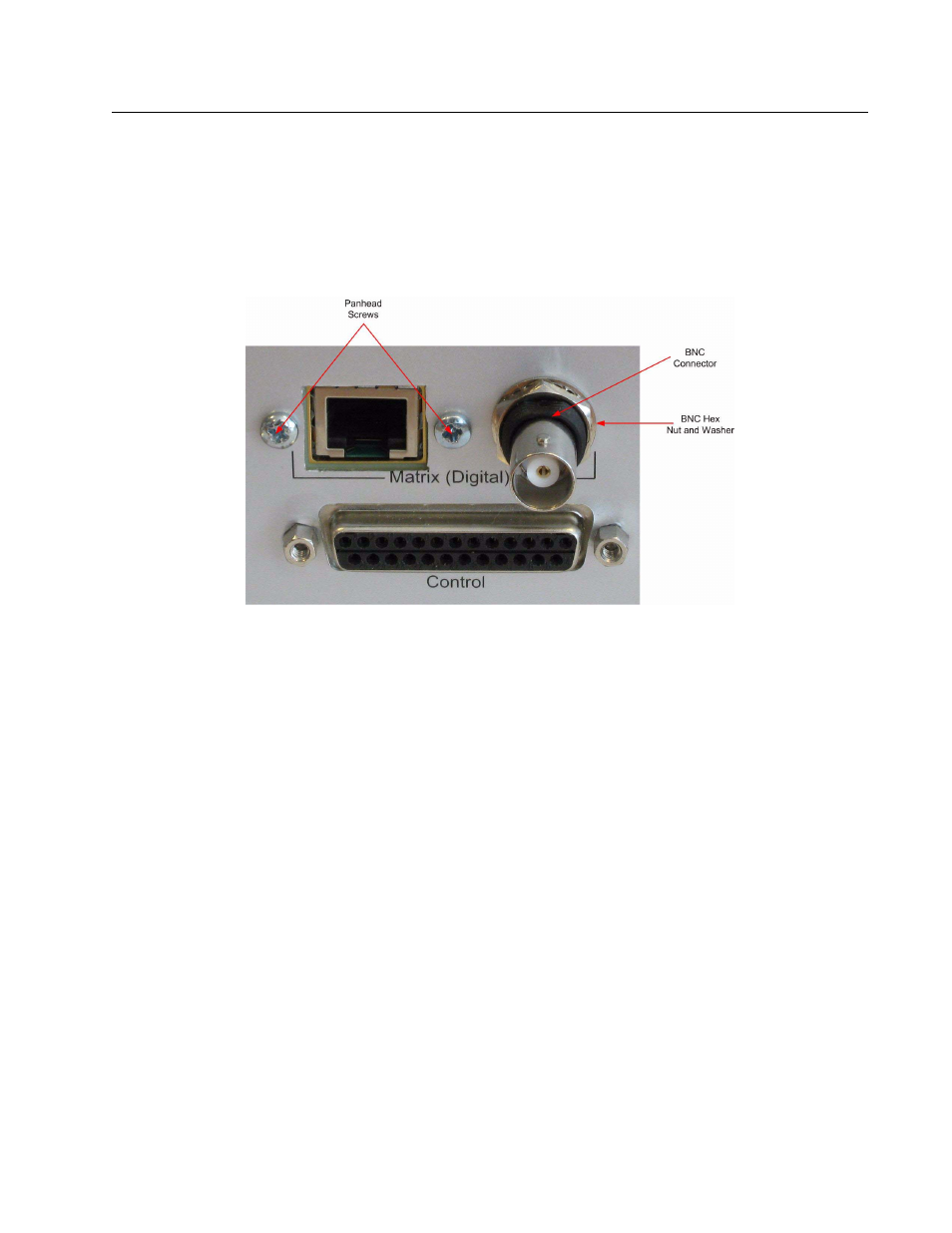

Figure 23: AES-3 Card with Hex Nut and Washer
