Systemdescription
5.3. Options
• Additional limit switches
• Rotary actuator with feedback potentiometer:
- Potentiometer with resistance values of 100 W, 1 kW, 5 kW,
10 kW
- Analogue feedback via 4 ... 20 mA signal
• 3rd position (180°)
• Actuators with integrated fail safe function (see chapter “8. Rotary
actuators with integrated emergency reset”)
5.4. marking
The rotary actuator is fitted with a type label which enables clear iden-
tification and provides the most important technical data.
Do not remove the type label from the rotary actuator!
It is extremely important for identification during installation
and maintenance.
The warranty is void without the type label.
5.5. type label
3003 / 225431
~ 24 V 50/60 Hz
Fluid Control System
s
IP66 OF N°460050/79
24 V
90° 20 Nm 15W
10/11 S46
Protection class, Serial number (internal)
Type, Identification number
Operating voltage
Torque, Rating
Operating voltage

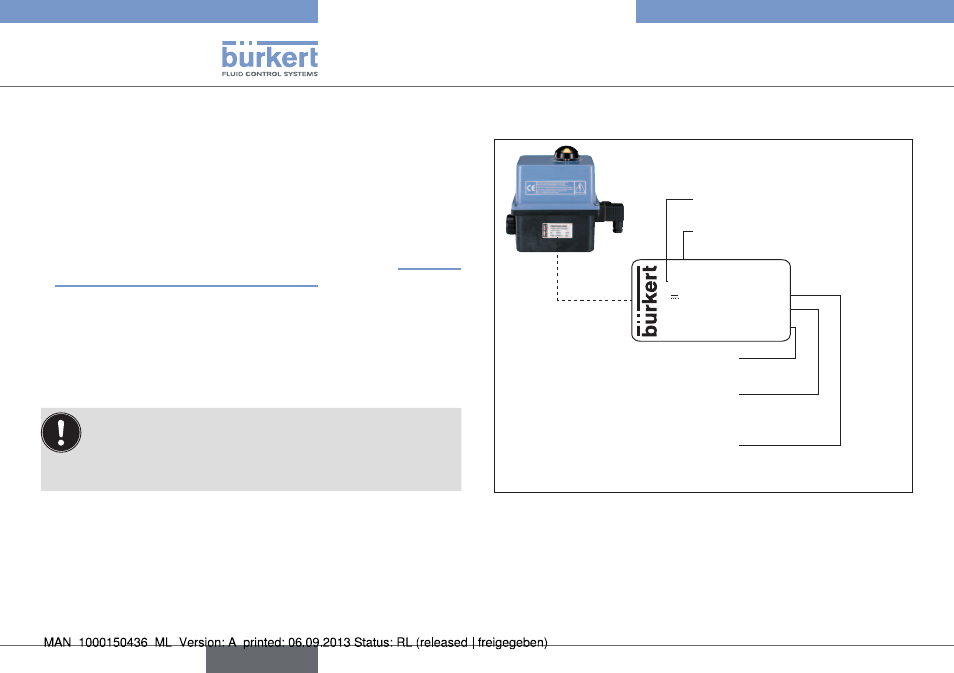

Fig. 1: Location and description of the type label
