17

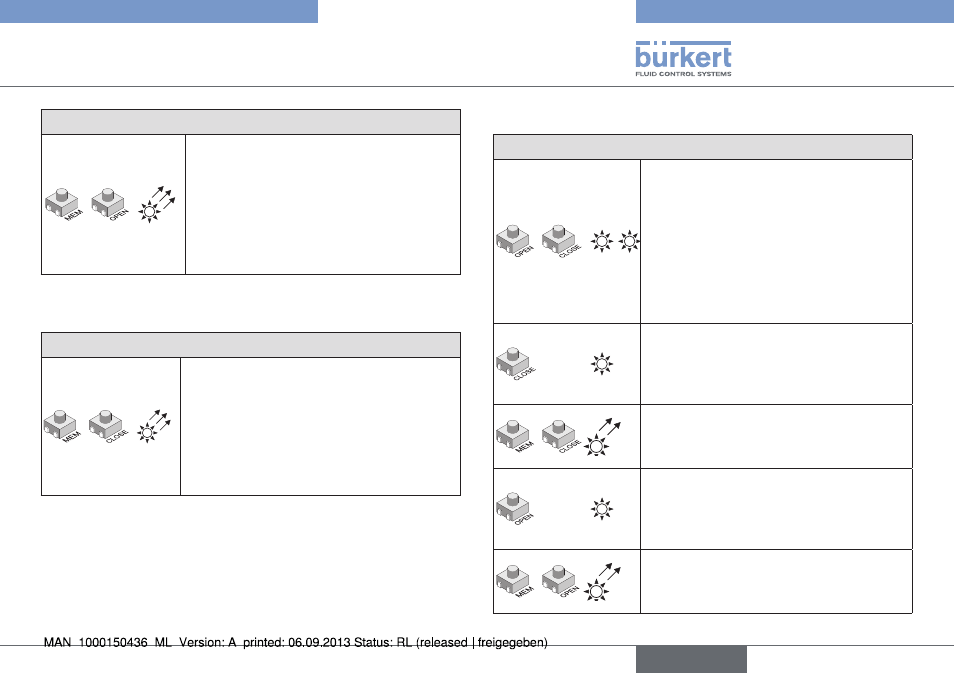

Installation
control signal when current 0 – 20 ma
R
→
Press and push-
button and switch on the card (hold
down pushbutton).
The RED LED lights up 3x.
→
Release and push-
button and disconnect the card from
the power supply.
control signal when current 4 – 20 ma (preset)
R
→
Press and push-
button and switch on the card (hold
down pushbutton).
The RED LED lights up 3x.
→
Release and
pushbutton and disconnect the card
from the power supply.
learning mode
specify end positions
G R
→
Press and
pushbutton and switch on the card
(hold down pushbutton).
The RED and the GREEN LEDs light up.
→
Release and
pushbutton.
Both LEDs go out.
Learning mode is selected.
R
→
Press pushbutton to move
the shut-off valve into the closed
position.
The RED LED lights up.
R
→
Press and push-
button to save the closed position.
The RED LED lights up 2x.
G
→
Press pushbutton to move
the shut-off valve into the open
position.
The GREEN LED lights up.
R
→
Press and push-
button to save the open position.
The GREEN LED lights up 2x.
