22 - 8624-2 Standard
english
6.6.2 UNIT - setting the unit of the controlled variable
Î Select here the unt of the controlled
variable (factory setting: bar).
Unit = mbar
Unit = bar
Unit = psi
Unit = litre/minute
Unit = litre/hour
Unit = m 3 /hour
Unit = gallons/minute
Unit = gallons/hour
no unit *
* For control systems whose controlled variable corresponds to none of the
units that can be set (e.g. with conductivity), display of the unit can be
suppressed here.

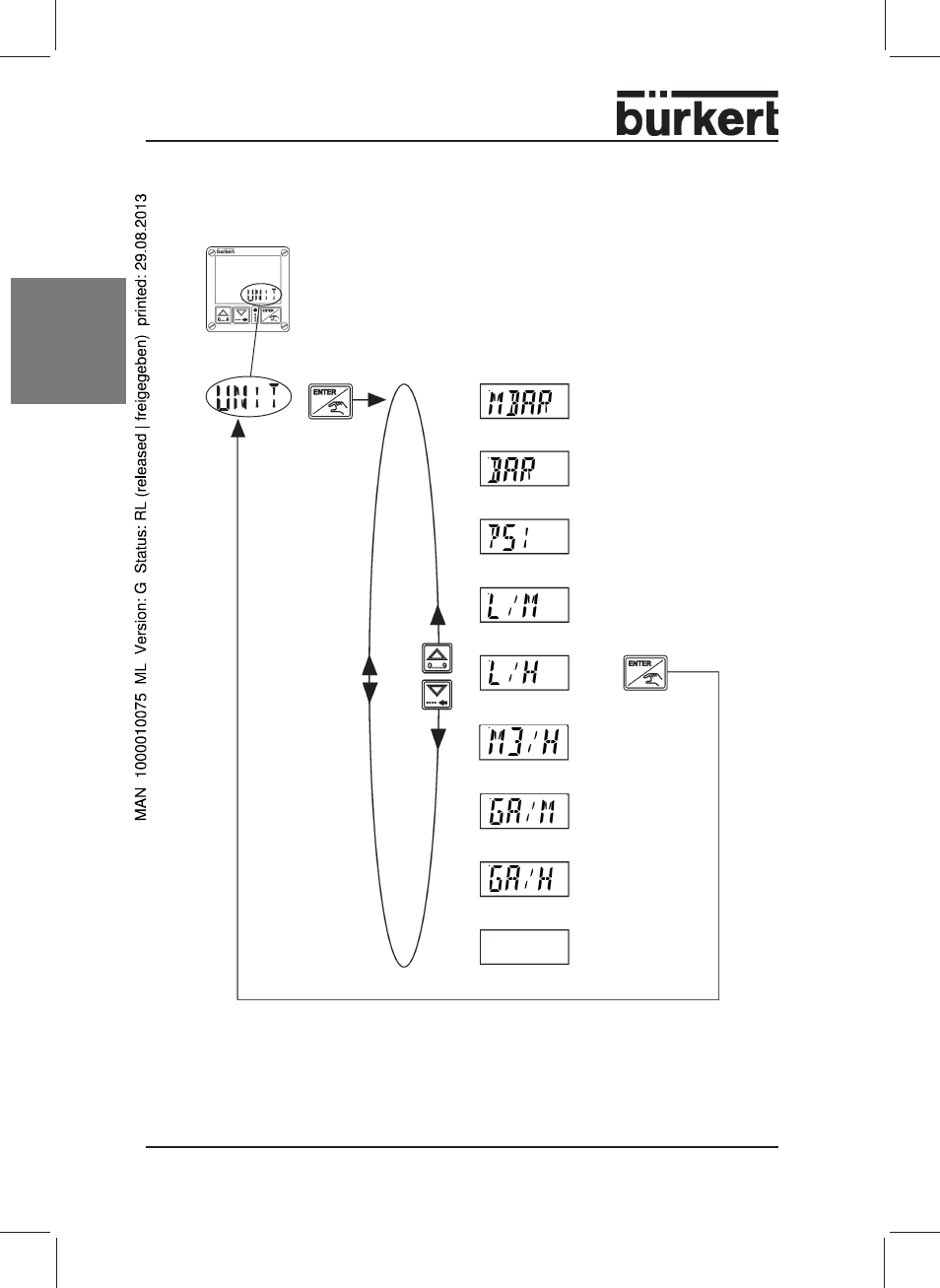

Fig.: Setting the unit of the controlled variable
