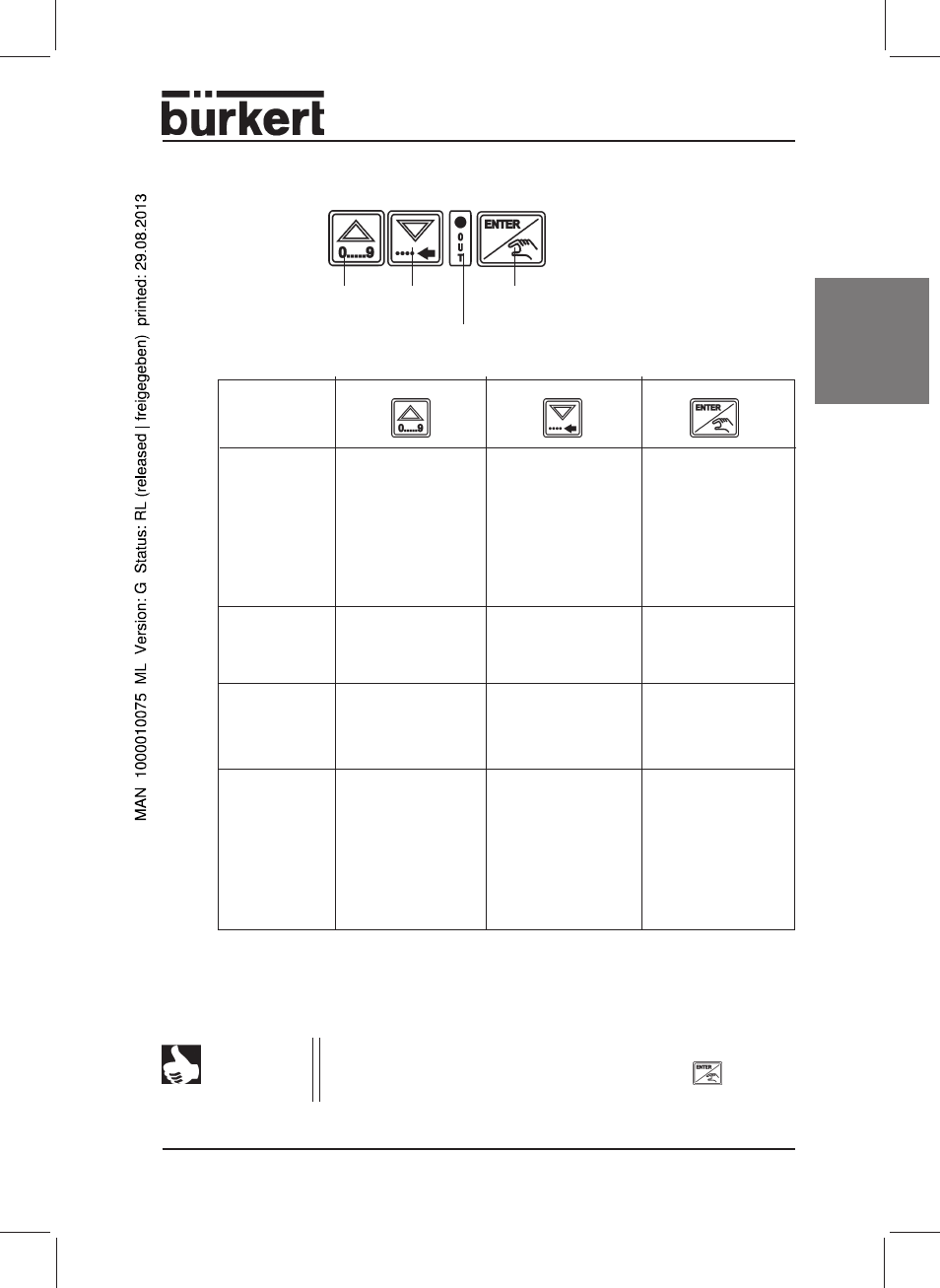

6.3 Key allocation
Mode
press key:
switchover of display
between set and
actual value
press key:
open valve
(inc)
press key:
backwarts in menu
press key:
increase the selected
digit*
press key:
switchover of display
between set and actual
value
press key:
close valve
(dec)
press key:
forwards in menu
press key briefly:
to next digit
press key for 2 sec.
sets decimal point
behind the place
selected
press key briefly:
enters manual mode
press key for 5 sec.
enters configuration
mode
press key briefly:
back to standard mode
press key:
to edit the menu item
press key:
concludes setting,
back to menu item**
Standard mode
Manual mode
Configuration
mode
Menu items
Configuration
mode
Editing menu
items
* In the menu item VALV, setting is not digit-by-digit but in increasing
sequence within the limits 0 ... 100.
** The values set are transferred to the memory.
NOTE The values set are only vaild for control after the configuration
mode has been left in the menu item
END with the key.
No function on this
model.
ENTER key key
"DEC" key
"INC"
