5.2 Changing the cable outlet direction
➔ Unscrew the 4 screws on the front
panel of the flow pressure controller and
remove the cover carefully.
➔ Remove the screw to the valve and
remove the plastic cross.
➔ Detach the plate from the cube.
➔ Pull out the cube downwards and
replace in the desired orientation.
➔ Place the plate onto the cube (the pins
must engage in the guides).
➔ Lay on the plastic cross and insert the
screw through the cube.
➔ Connect the flow pressure controller to
the proportional valve (see 5.1).

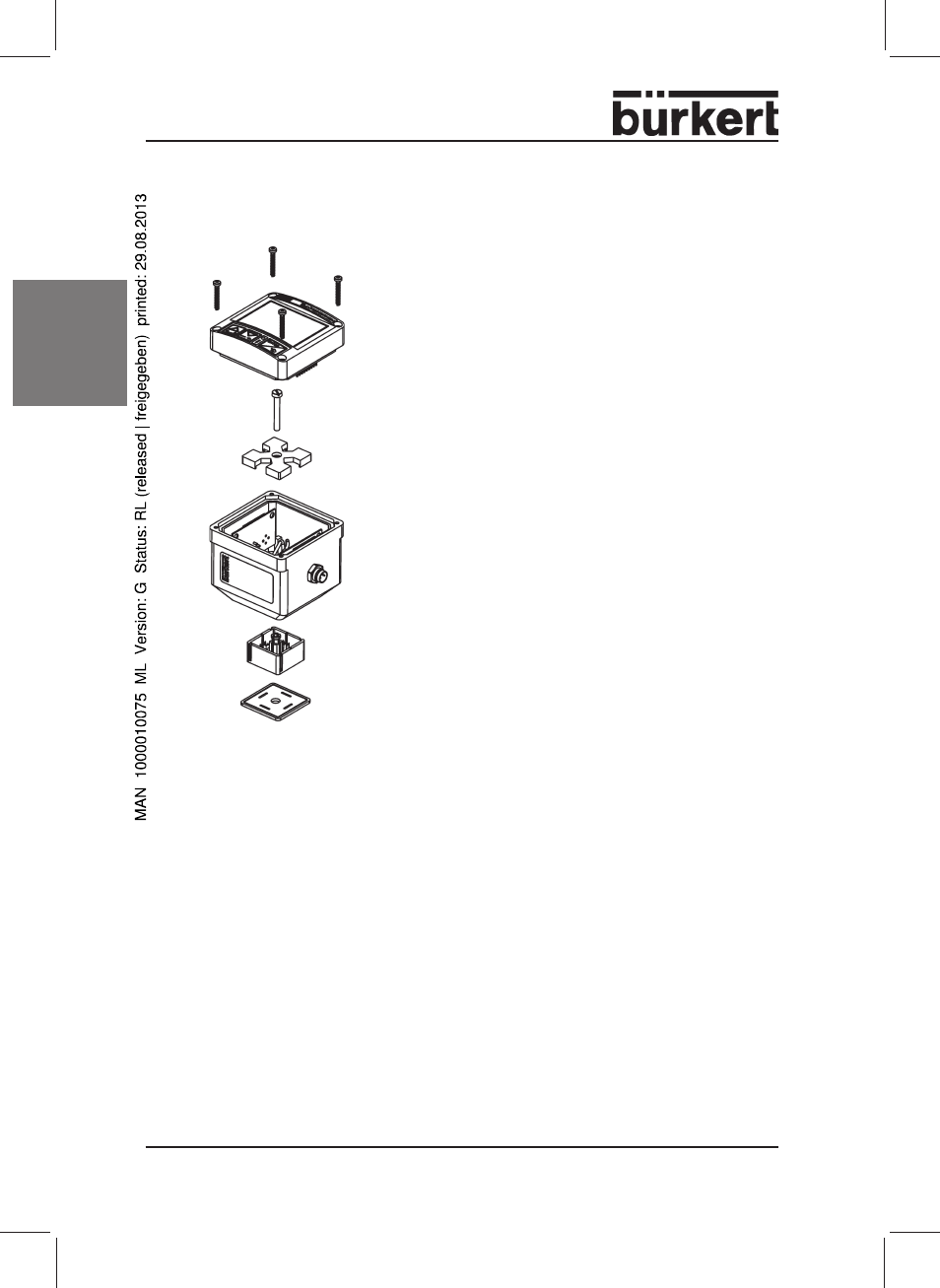

Fig.: Changing the cable outlet direction
