6.2 Indications on the display

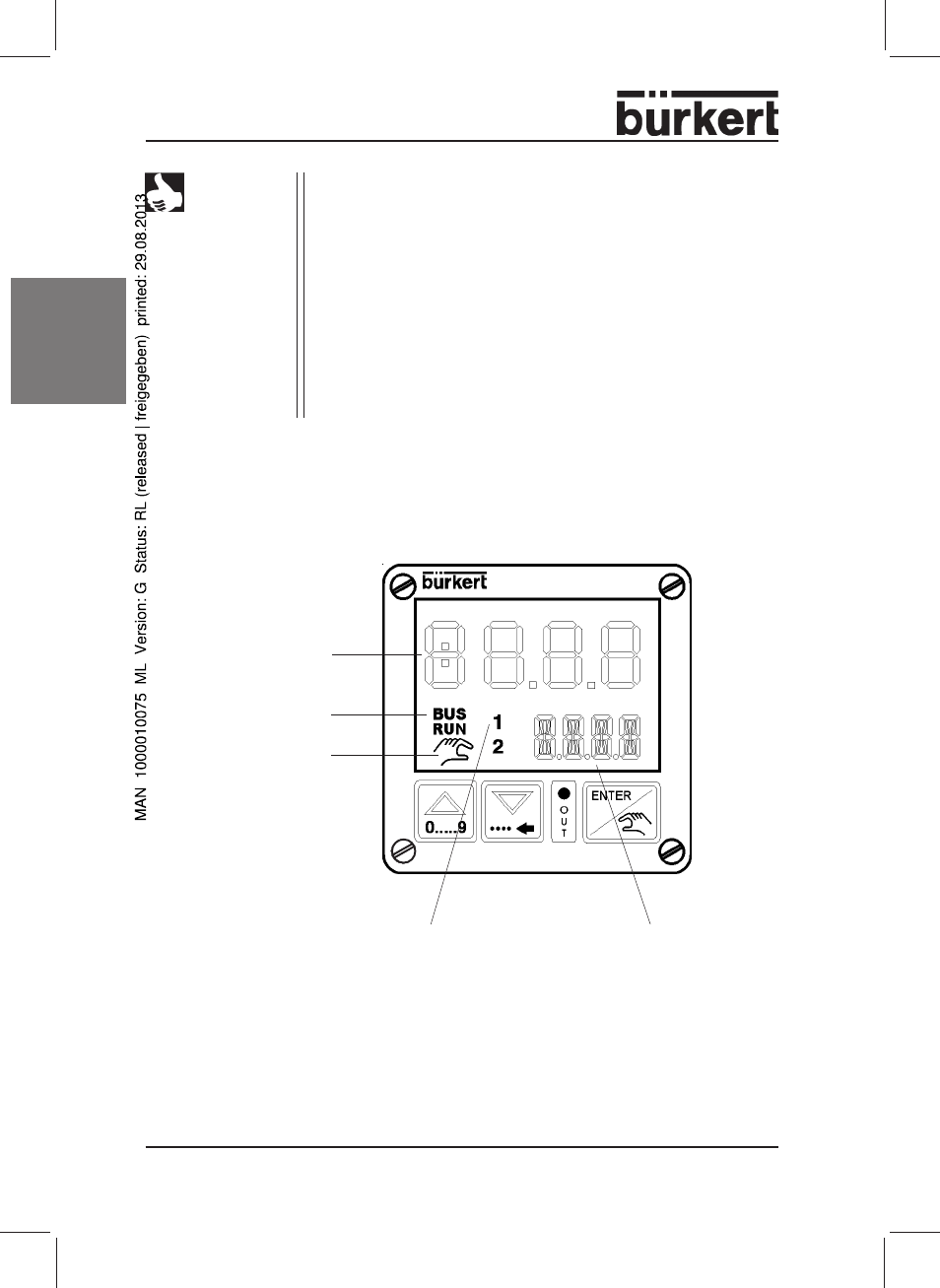

Fig.: 4-digit text display, e.g. of pressure unit in bar or psi
4-digit display
to indicate the process
values and parameters
Manual
mode
Indication of specified setpoint value
- internal setpoint (no display)
- external setpoint (1)
- setpoint via bus (1) 4-digit text display, e.g.
of pressure unit in bar or
psi
NOTE • After the supply voltage is switched on, the controller is in
the standard mode.
• Change to the other modes is possible by the actions
shown in the figure.
• After the configuration mode is ended, the parameters set
are transferred to the memory of the controller.
• After the operating voltage is switched off, the parameters
last active are stored; on next switching on again, these will
be active again.
Bus active
