Burkert Type 6608 - Manual (Page 5)

16

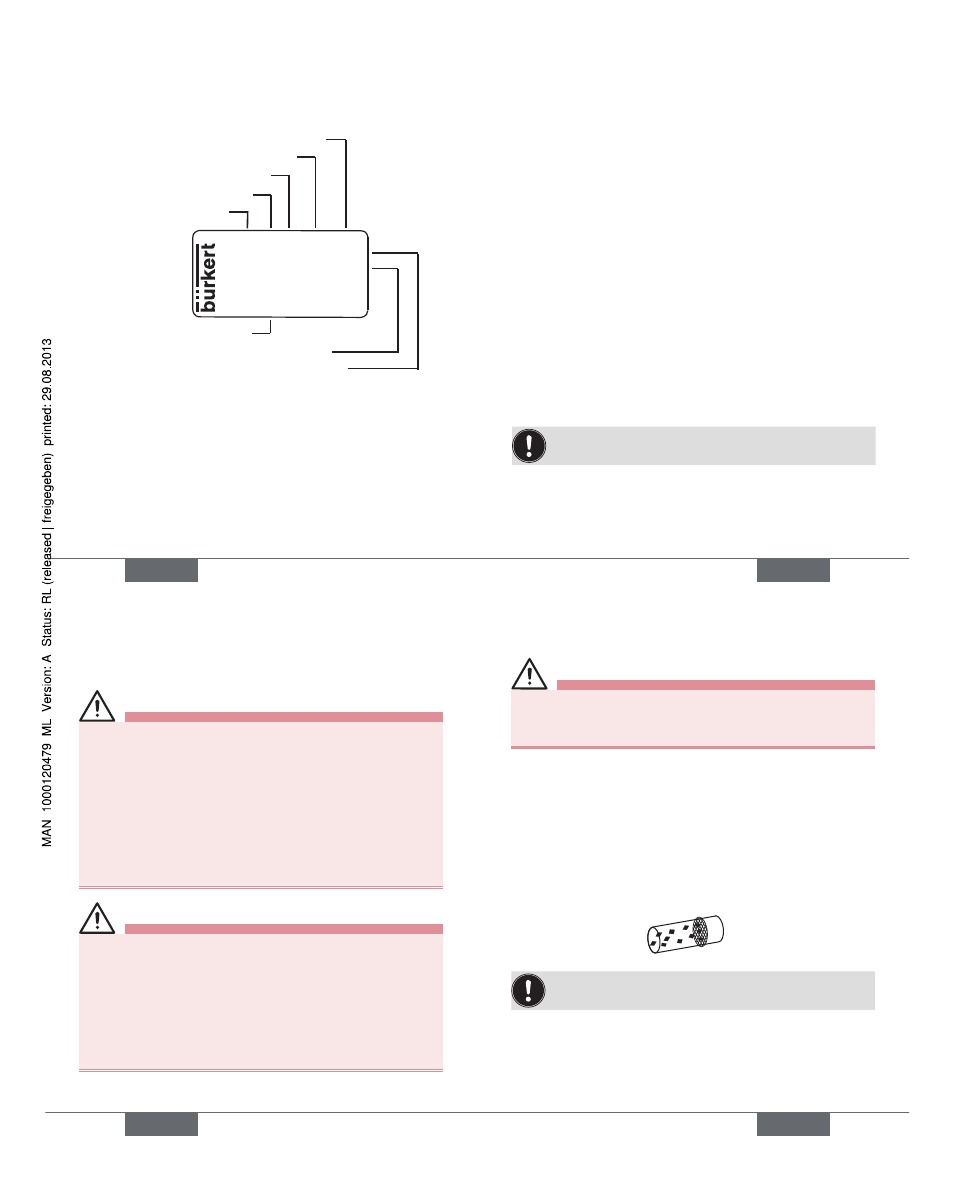

label 7.5.
Beispiel:
Made in Germany
00450000 W14UN
CE
6608 A 3,0 CC PK
G1/8 PNVAK-3bar
24V DC 5W
Identification number
Voltage/frequency output
Nominal connection pressure
Type
Circuit function
Orifice
Seal material
Body material
english 17
electrical data 7.6.
Connections Rectangular plug
Cable plug Type 2507 on top
2 FEP flying leads, AWG24,
500 mm long
Power supply 12 V DC
24 V DC
230 - 240 V UC
Voltage tolerance ±10 % - Residual ripple 10 %
Nominal output 5.0 W
Nominal
operating mode
100 % continuous operation
for block installation if temperatures of media or
surrounding area above +40 °C:
Intermittent duty 40 % (10 min)
Note the information specified on the label for
voltage, type of current, and pressure.
english 17
18
insTallaTiOn 8.
safety instructions 8.1.
Danger!
Risk of injury from high pressure in the equipment!
Before loosening the pipes and valves, turn off the •
pressure and vent the pipes.
Risk of injury due to electrical shock!
Before reaching into the device or the equipment, •
switch off the power supply and secure to prevent
reactivation!
Observe applicable accident prevention and safety
•
regulations for electrical equipment!
Warning!
Risk of injury from improper installation!
Installation may be carried out by authorized technicians •
only and with the appropriate tools!
Risk of injury from unintentional activation of the
system and an uncontrolled restart!
Secure system from unintentional activation. •
Following installation, ensure a controlled restart. •
english 19
8.2. fluid installation
Danger!
Risk of injury from high pressure in the equipment!
Before loosening the pipes and valves, turn off the •
pressure and vent the pipes.
Installation position: any, actuator preferably upwards.
Installation
Before installation, clean any possible dirt off the pipe-
→
lines and flange connections.
If required, install a dirt trap to prevent malfunctions.
→
Mesh size:
5 µm
Pay attention to the flow direction of the valve.
english 19
Type 6128, 6608
