english 24

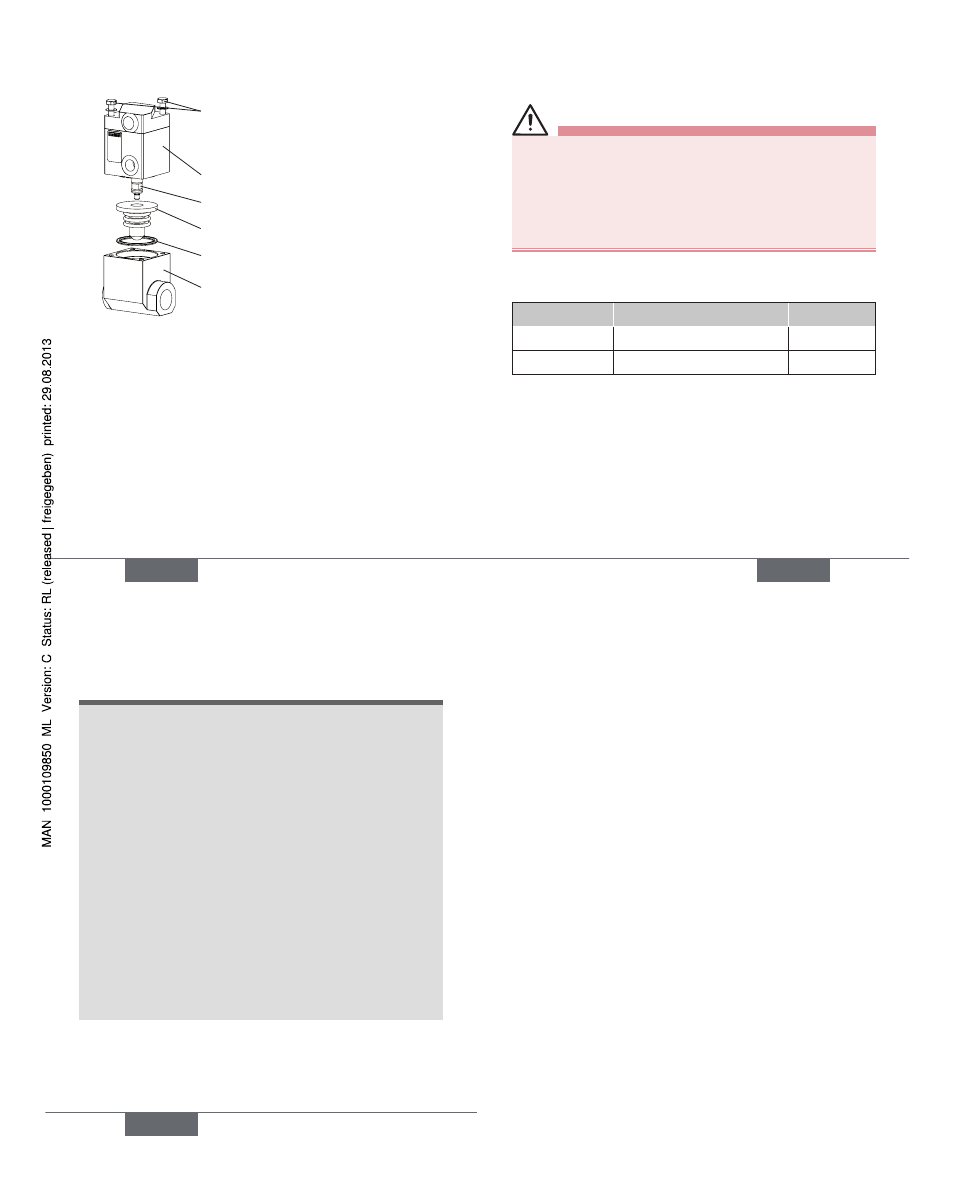

Exploded drawing of changing spare parts, Type 2080
Hexagon screws M4 x 50 in accor-
dance with DIN 933-A4 for attaching
the actuator to the body
Actuator
Spindle
PTFE bellows
O-ring 25 x 2 FKM 70
Body (threaded port version)
9.4. malfunctions
If malfunctions occur, check:
→
the line connections,
→
the operating pressure,
→
the pilot air supply which actuates the valve,
→
the bellows and, if required, change them (see chapter
9.3).
If the valve still does not switch, please contact your
Bürkert Service.
english 25
10. replacemenT parTs
Caution!
Risk of injury and/or damage by the use of incorrect
parts!
Incorrect accessories and unsuitable spare parts may cause
injuries and damage the device and the surrounding area.
• Use only original accessories and original replacement
parts from Bürkert.
Order table of spare parts
Spare part Description Order no.
Bellows Material PTFE 799 845
O-ring 25 x 2.0 N-FKM 70 914 378
english 26
11. TranspOrT, sTOrage,
dispOsal
note!
Transport damages!
Inadequately protected equipment may be damaged
during transport.
• During transportation protect the device against wet
and dirt in shock-resistant packaging.
• Avoid exceeding or dropping below the allowable
storage temperature.
Incorrect storage may damage the device.
• Store the device in a dry and dust-free location!
• Storage temperature: -20 ... +65 °C.
Damage to the environment caused by device compo-
nents contaminated with media.
• Observe applicable regulations on disposal and the
environment.
• Dispose of the device and packaging in an environ-
mentally friendly manner.
