Flomega, liquid mfc’s/mfm’s – Brooks Instrument 5882/92 User Manual
Page 9
9
Installation and Operation Manual
X-TMF-FM-MFC-eng
PN 541-C-007-AAG
April, 2008
Flomega, Liquid MFC’s/MFM’s
When EEx d IIB T4...T6 required, please contact factory for detailed dimensional drawing.
Connections
A
A with filter
5/16” - 24 UNF
143,5 mm
175 mm
1/16” Tube Compression
176,5 mm
208 mm
1/8” Tube Compression
188 mm
220 mm
1/4” Tube Compression
188 mm
220 mm
1/4” NPT(F)
208 mm
240 mm

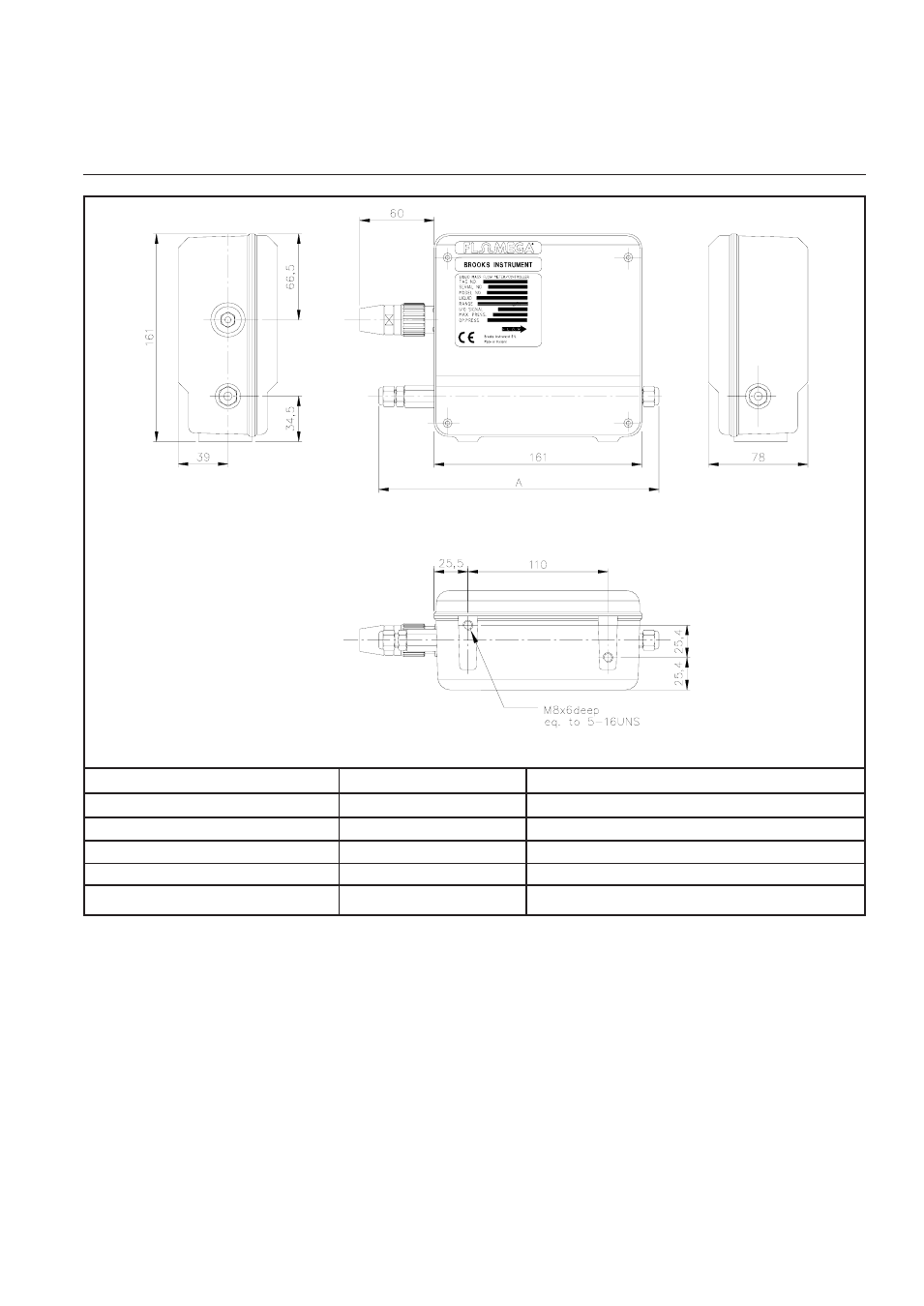

Figure 1-1 Dimensions
Section 1 Introduction
This manual is related to the following products:
