iVMS-2000 User Manual
75

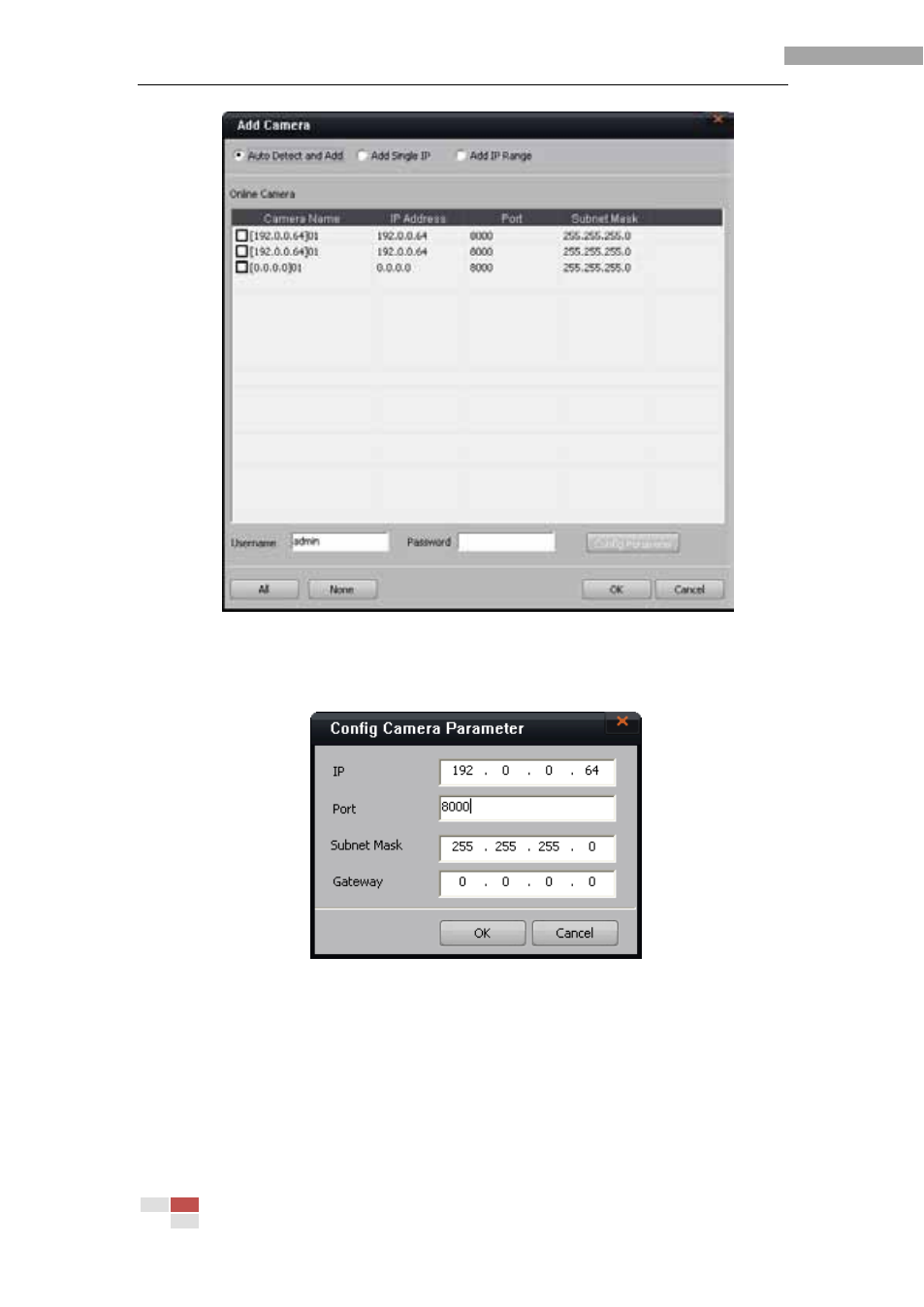

Figure 6-5 Auto Detect and Add IP Cameras
Notes: All the IP cameras are set with same IP address by default, and needs
to be configured in [Config Parameter] (Figure 6-6).
Users can select an on-line camera, input its login user name and password, and
then click [Config Parameter] to modify the camera parameter as Figure 6-6.
Figure 6-6 Config Parameter
[Add Single IP]
Select “Add Single IP” as Figure 6-7, and input the IP address, port number, user
name and password. Click [Get Camera Info] to get on-line/off-line status of this IP
camera (the status will be displayed on the IP camera list). If there is user name or
password error, there will be warning message prompt on screen.
