eLine Technology iVMS-2000 V2.0.2 User Manual
Page 18
iVMS-2000 User Manual
13

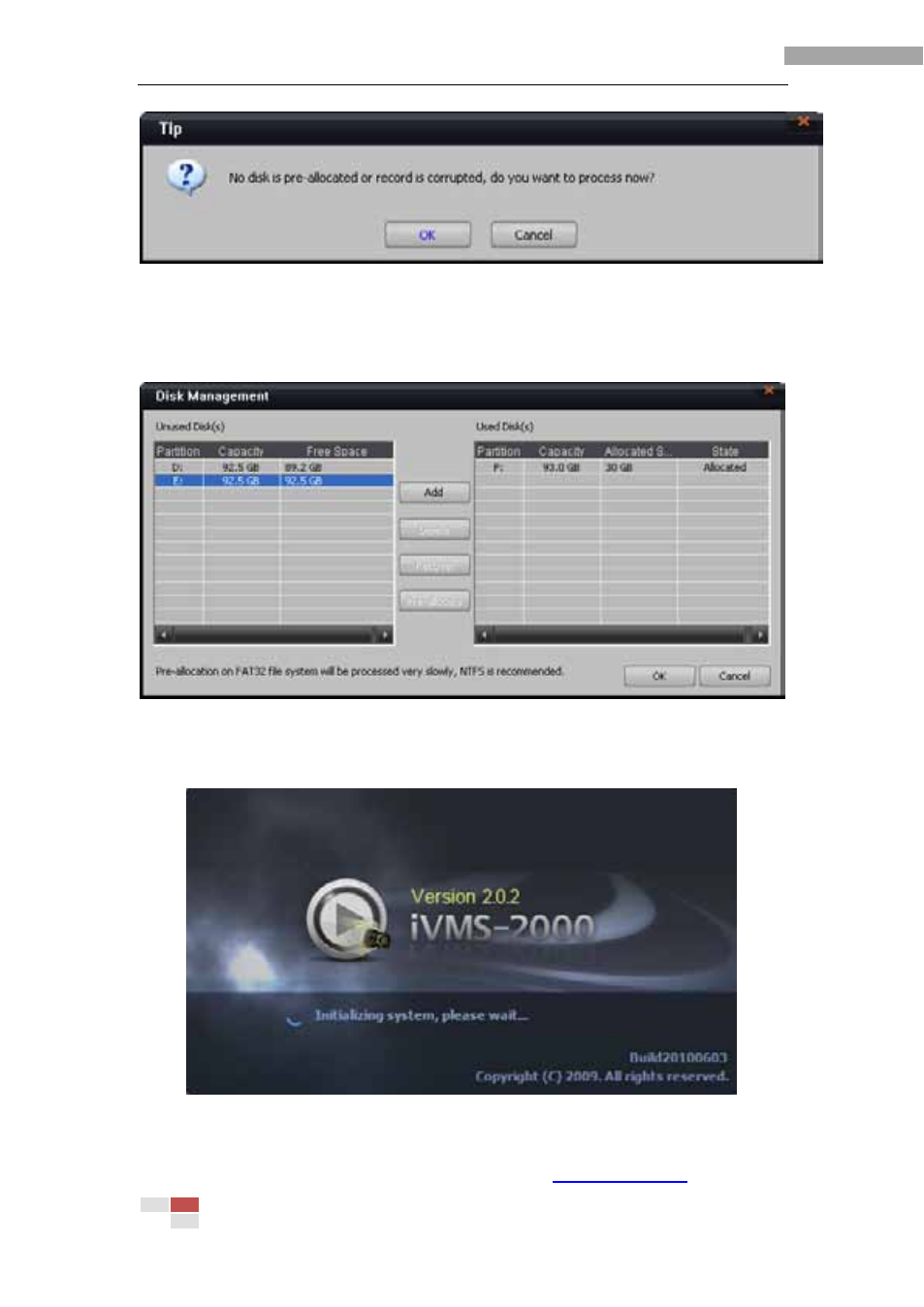

Figure 2-18
Disk Management
All disks with available space will be listed with available partitions. Select the partitions
for recording and click “Add” button to pre-allocate space. After pre-allocation, the state of
partition will change to “allocated”. Select one pre-allocated disk and click “Delete” to remove
the disk from the list. Note that previously recorded files and pre -allocated space will still
exist on that disk.
Figure 2-19 Disk Management
When you are finished configuring hard disk space, click “OK” to run the software (Figure
2-20), or click “Cancel” to skip disk pre-allocation and enter iVMS-2000 directly.
Figure 2-20 Initializing
If iVMS-2000 is running for the first time (Figure 2-21), and capture card is installed in
the PC, then the software will list all the detected analog cameras. For IP camera live preview,
you must manually configure IP cameras. (Please refer to
6.3.1 Add Cameras
)
