iVMS-2000 User Manual
15
3 Main Console

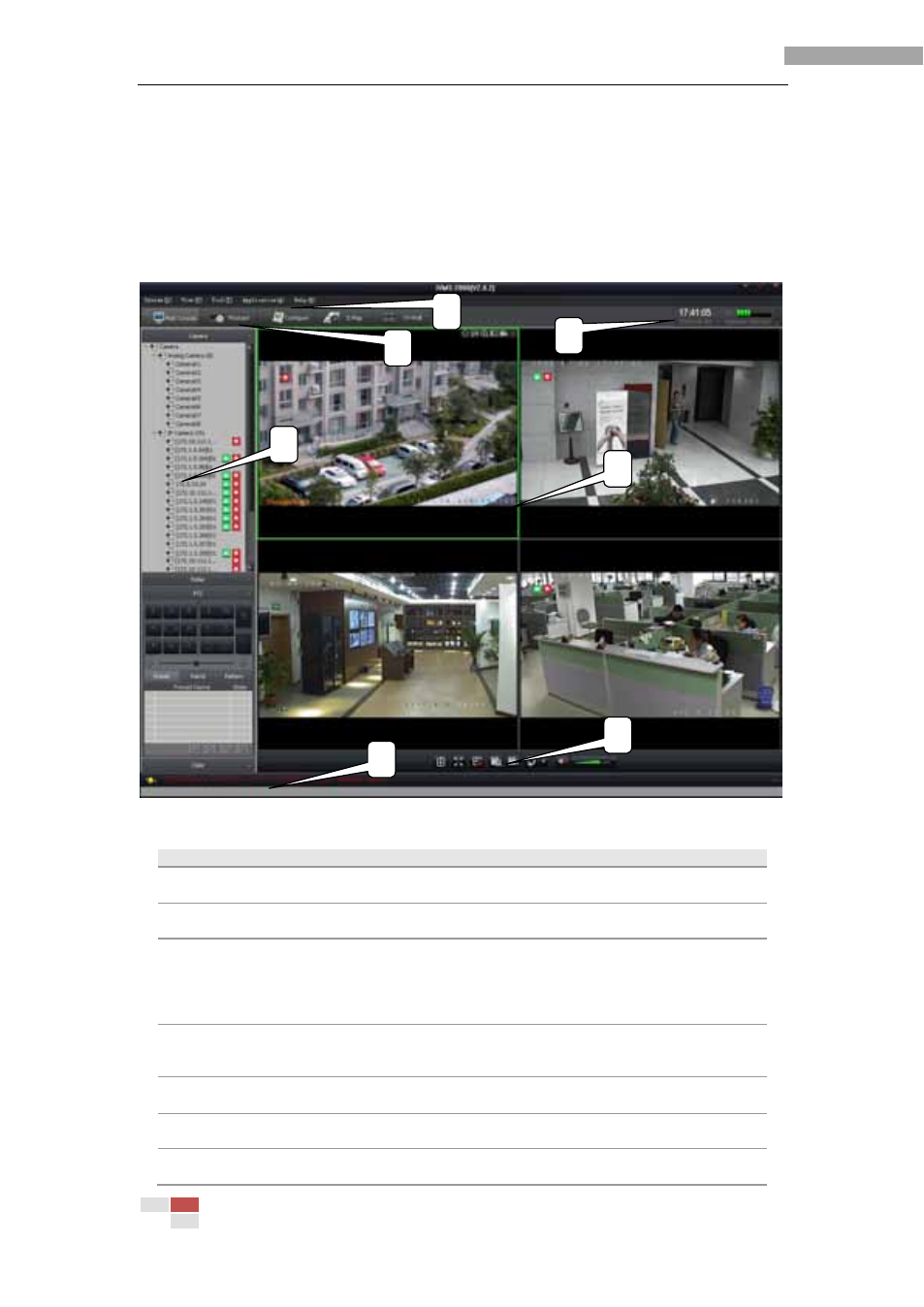

Figure 3-1 Main Console
The following table describes the main console, in which 1 , 2 , 3 , 7 are common to all
iVMS-2000 software interfaces.
Label Name Description
1 Menu Toolbar Contains System Menu, View menu, Tool Menu,
Application Menu and Help Menu
2 Navigation Bar Allows the user to chose between live preview and
various software configuration screens.
3 Info Display Display current time, CPU usage and network
connections. At the bottom of the panel, there is
also information about logged-in user, disk usage
and the number of network users accessing
iVMS-2000.
4 Left Control Panel Displays IP and analog cameras currently
connected, alarm output settings. Contains PTZ
controls and controls to change video parameters.
5 Live Preview Panel Displays video feeds. Contains controls for
accessing some of the camera/video parameters.
6 Live Preview Control
Panel Controls live preview layout. Contains controls for
instant record, manual record and auto switch.
7 Alarm Info Panel Displays current alarm information in real time,
including the time of alarm, alarm source, alarm
