iVMS-2000 User Manual
32
3.6.3 Pattern
Users could record the path of PTZ in patterns. Recorded patterns can be later recalled.

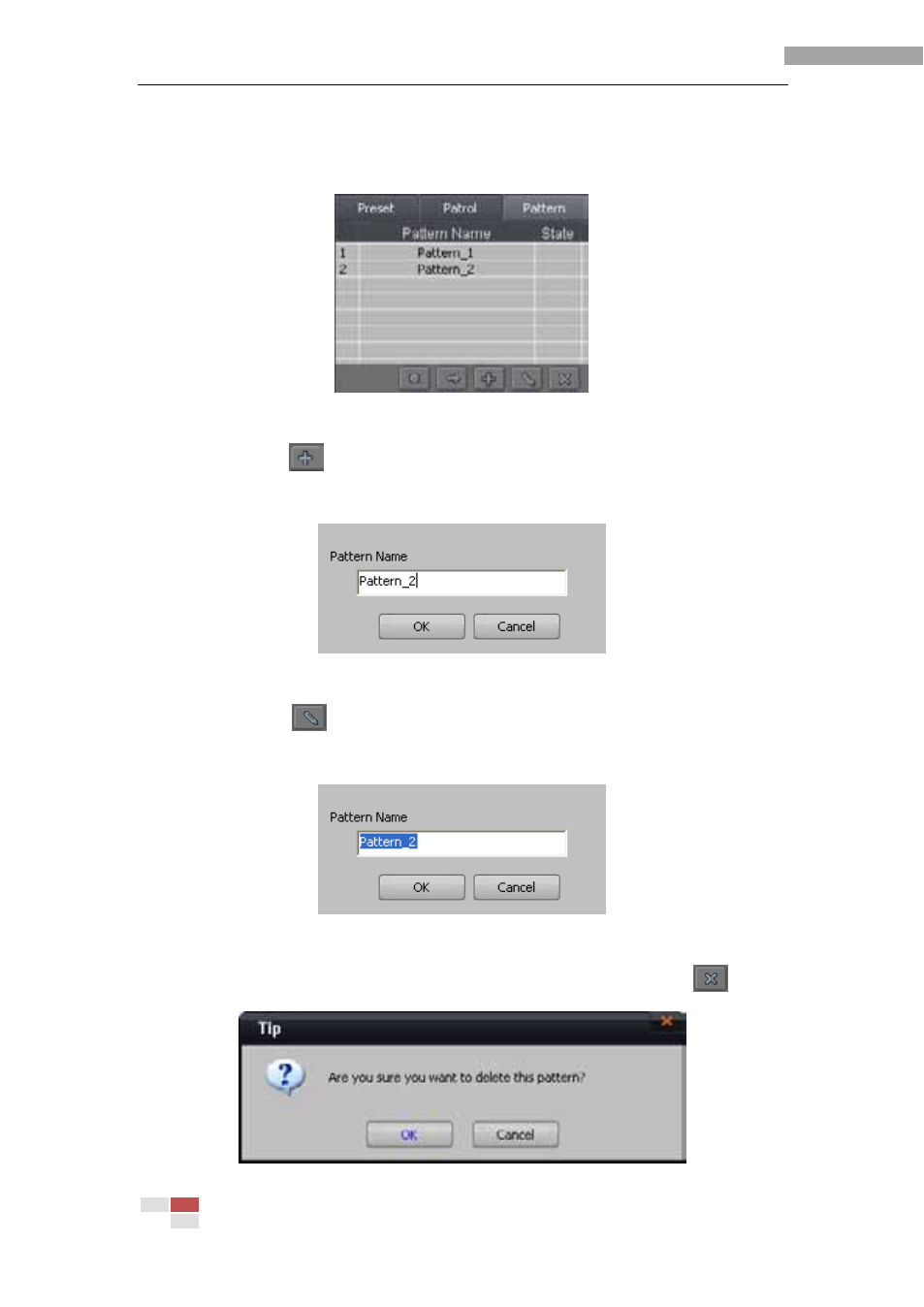

Click button “Pattern” to enter pattern operating area. See Figure 3-30.
Figure 3-30 Pattern Operating Area
(1) Add pattern
Click button in pattern operating area and a box will prompt as shown in Figure
3-31. Input the name and click “OK” to add a pattern.
Note: Each pattern should have a unique serial number.
Figure 3-31 Add a Pattern
(2) Modify patter name
Click on the button and a prompt box for modifying patterns will pop up as
shown in Figure 3-32. Click “OK” to save changes after modification.
Note: Patterns must have unique names.
Figure 3-32 Modify Patter Name
(3) Remove pattern
Select the pattern you want to delete in pattern list and click on the button,
then a confirm box will prompt as shown in Figure 3-33. Click “OK” to delete the pattern.
Figure 3-33 Confirm box
