READ THIS FIRST:

Read and follow all vehicle warnings and

installation instructions before beginning installation.

Wear safety glasses and use all safety precautions

during installation.
LISEz CECI En PREmIER:

Lire et observer toutes les consignes de sécurité et les

instructions avant de commencer l’installation. Durant

l’installation, veiller à toujours porter des lunettes

de protection et respecter les mesures de sécurité.
LEA ESTO PRImERO:

Lea y siga todas las advertencias e instrucciones

de instalación del vehículo antes de empezar la

instalación. Use gafas de seguridad y todas las

precauciones de seguridad durante la instalación.

118514-037

Rev. A

08/27/2010

Installation Instructions

Directives de montage

Instrucciones de Instalación

T-Connector

Connecteur en T

Conector en T

Aveo

e

ENGLISH

TOOLS REQUIRED:

Test-probe, Trim Panel Remover, Drill (3/32”

Drill Bit), Philips Head Screwdriver

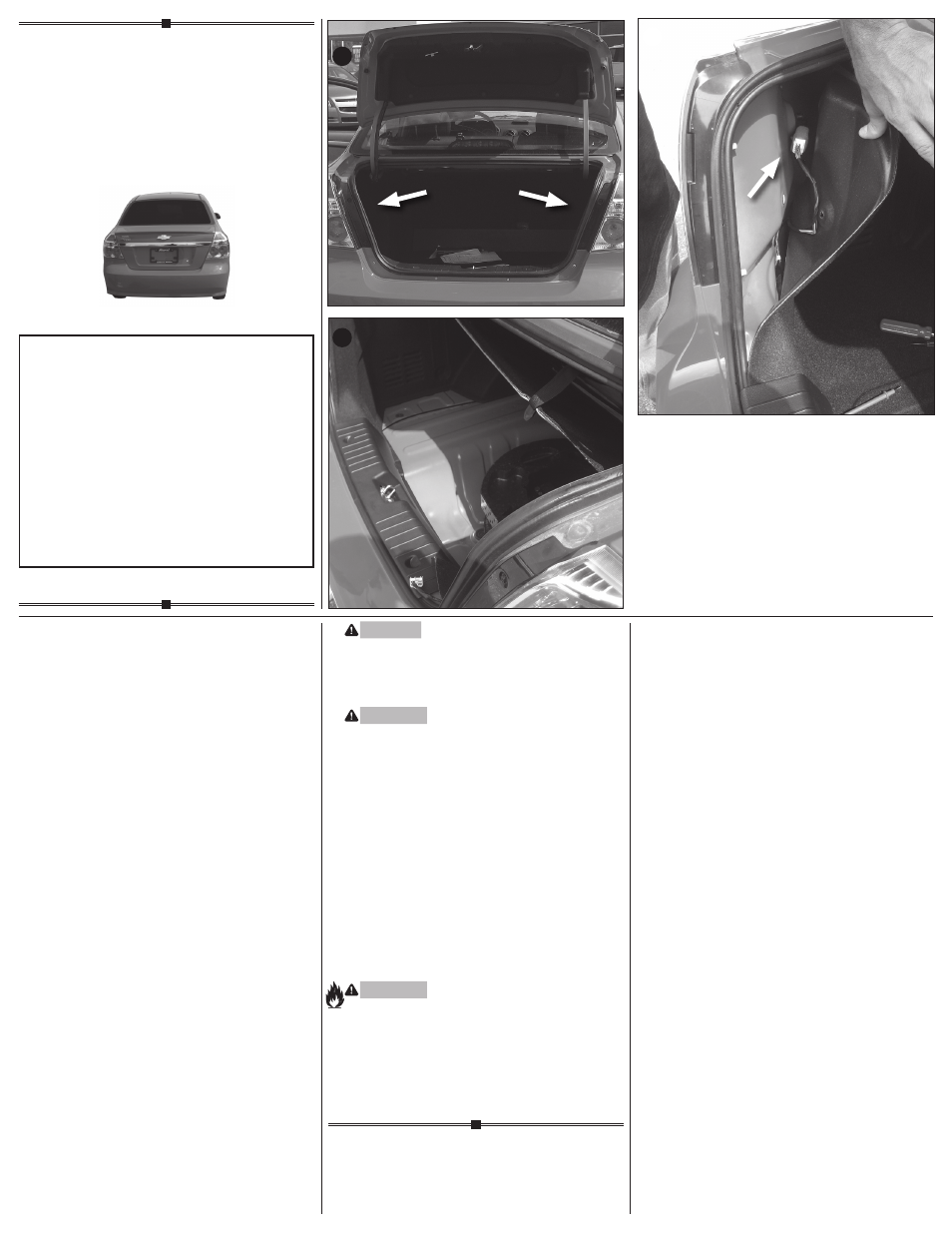

1. Open trunk and remove threshold panel.

Partially remove the corner felt trunk liner, on

both sides, exposing the vehicle’s taillight wiring

harness. de

2. On the driver and passenger sides of the vehi-

cle, locate the vehicle’s taillight wiring harness.

The taillight wiring harness will have a connec-

tion point, on both sides, matching the ends of

the T-Connector. f Separate this connector,

being careful not to break the locking tabs. All

connector surfaces should be clean and free of

dirt.

3. On the driver’s side, insert the T-Connector end,

with the yellow wire, between the vehicle wiring

connectors and lock into place. Be careful not to

damage the locking tabs and be sure that con-

nectors are fully inserted with locking tabs in

place.

4. Route the T-Connector end, with the green wire,

under felt trunk liner to passenger side vehicle

taillight wiring harness. Repeat step 3 for the

passenger’s side using the T-Connector contain-

ing the green wire.

5. Locate a suitable grounding point near the con-

nector. Drill a 3/32” hole and secure the white

wire using the eyelet and screw provided. Do

not drill into any exposed surfaces.

CAUTIOn

Verify what is behind any surface prior to

drilling to avoid damage to the vehicle and/or

personal injury. Do not drill into any exposed

surfaces.

WARnInG

All connections must be complete for the

T-Connector to function properly. Test and

verify installation with a test light or trailer once

installed. For initial test, reset vehicle electrical

system by temporarily removing the key from

the ignition.

6. Behind the taillight assembly on the Driver’s

side, clean a flat area using a mixture of rubbing

alcohol and water. Mount the black box in this

area using the double-sided tape provided.

7. Route the 4-Flat from below the threshold plate

into trunk. Store there when not in use.

8. Reinstall felt trunk liner, threshold, and other

items removed during installation, being careful

not to pinch or cut the wires.

WARnInG

Overloading circuit can cause fires.

DO NOT exceed lower of towing

manufacturer rating or:

• Max. stop/turn light: 1 per side (2.1 amps)

• Max. tail lights: (7.5 amps)

Read vehicle’s owners manual &

instruction sheet for additional information.
