9. Secure the remainder of the T-Connector harness

with the cable ties provided, to prevent damage

or rattling and being careful to avoid any areas

that would pinch, cut or melt the wire.

10. Reinstall the plastic trim panels, threshold,

storage covers, floor covering and other items

that may have been removed during installation,

being careful not to pinch or cut the wires

NOTE

Store 4-Flat in trunk area when not in use.

WARNING

Overloading circuit can cause fires. DO NOT

exceed lower of vehicle manufacturer rating or:

• Max. stop/turn light: 1 per side (2.1 amps)

• Max. tail lights: (5.6 amps)

Read vehicle’s owners manual & instruction

sheet for additional information.

ENGLISH

TOOLS REQUIRED:

Trim Panel Remover, 10mm Socket &

Ratchet or 10mm Wrench, Drill (3/32” Drill Bit),

1/4” Socket, Wire Crimpers, Wire Cutters,

Philips Head Screwdriver, Test-probe

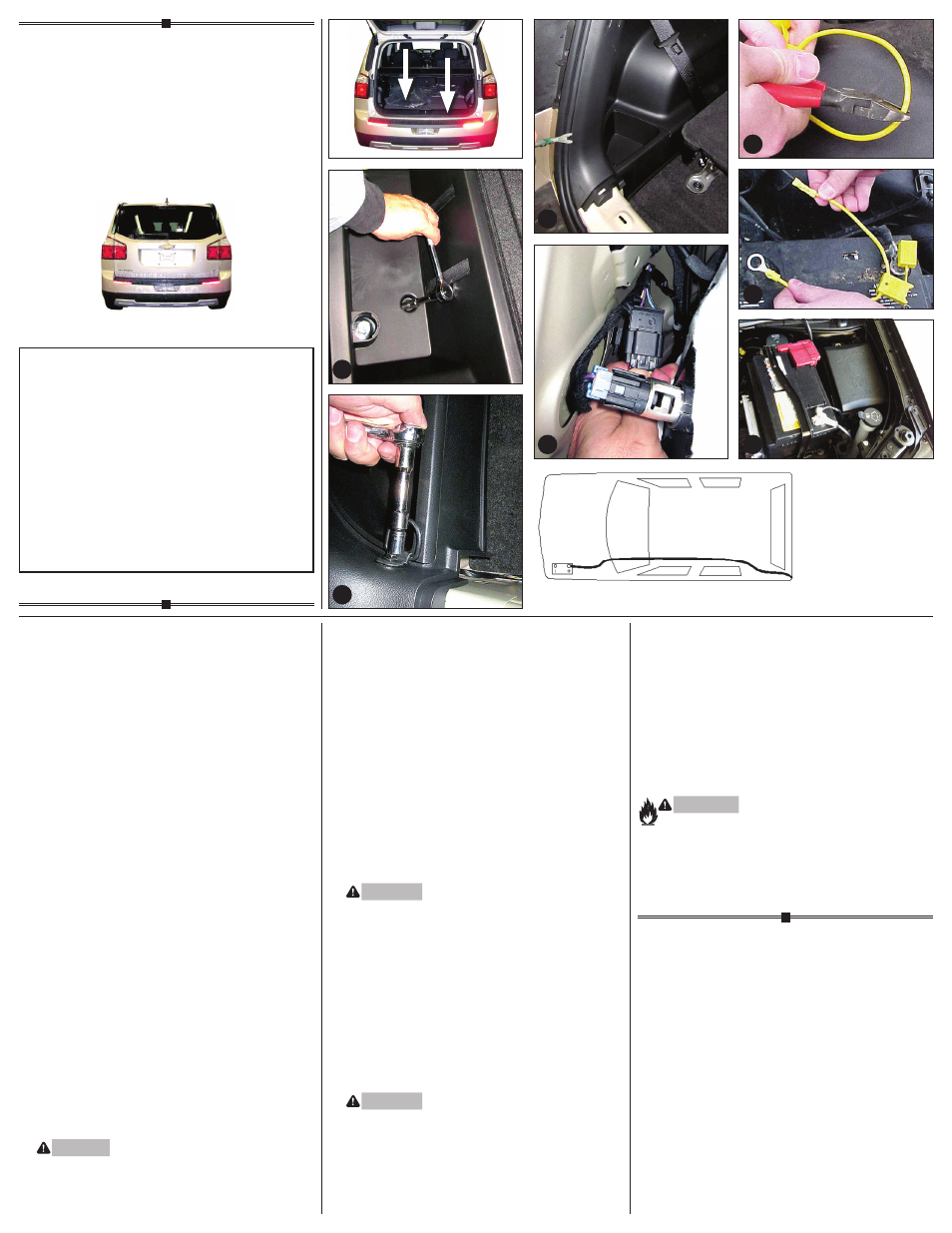

1. Open the vehicle’s rear tailgate. Remove

threshold, trunk floor panels and trays de.

Set aside all items removed being careful

not to damage parts.

2. Being careful not to damage clips, partially

remove the lower interior trim panels on driver’s

side of the vehicle fg.

3. Beginning on the driver’s side, separate the

vehicle’s wiring connectors h, being careful

not to break the locking tabs. Insert the

T-Connector end, with the yellow wire, between

the vehicle wiring connectors and lock into place.

All connector surfaces should be clean and free

of dirt.

4. Route the T-Connector containing the green wire

below the threshold cover to the passenger’s

side taillight housing. Repeat step 3 for the

passenger’s side using the T-Connector

containing the green wire.

5. Locate a suitable grounding point on the driver’s

side near the connectors. Drill a 3/32” hole

and secure white wire with eyelet using screw

provided. Do not drill into any exposed surfaces.

CAUTION

Verify what is behind any surface prior to drilling

to avoid damage to the vehicle and/or personal

injury. Do not drill into any exposed surfaces.

6. Locate a flat surface in an out of the way place

and mount the T-Connector’s black box-module,

to prevent damage or rattling.

NOTE

This surface should be in an area that is free of

any moisture and mounted in an area that it is

high enough where it could not be exposed to

direct contact with any water or liquid substance.

7. From inside the vehicle, connect the black 12 ga.

wire and the black wire from the T-Connector

black box with the supplied yellow butt

connector. Either route the black wire thru a

grommet and along the exterior frame or follow

the existing wiring along the thresholds into the

engine compartment up to the battery avoiding

areas that may pinch or break the wire i.

WARNING

If routing the wire thru a grommet and along the

exterior of the vehicle, be careful to avoid any

hot pipes, heat shields, the fuel tank or any other

points that may pinch or break the wire.

8. Disconnect the vehicle’s negative (-) battery cable.

If not removed, remove the fuse from the yellow

fuse holder (provided). After cutting the fuse

holder wire j, attach the ring terminal and

secure to the vehicle’s Positive (+) battery cable
k

. Connect the other end of the fuse holder to

the black 12 ga. wire, using the yellow butt

connector (provided).

WARNING

Read and follow all warnings and cautions printed

on the tow vehicle’s battery. All connections must

be complete for the T-Connector to function

properly. Test and verify installation with a test

light or trailer once installed. For initial test, reset

vehicle electrical system by temporarily removing

the key from the ignition l.

118565-037

Rev. A

6/19/2012

Installation Instructions

Directives de Montage

Instrucciones de Instalación

T-Connector

Connecteur en T

Conector en T

Chevy Orlando

i

j

k

d

f

g

h

e

l

READ THIS FIRST:

Read and follow all vehicle warnings and installation

instructions before beginning installation. Wear safety

glasses and use all safety precautions during installation.
LISEz CECI EN PREMIER:

Lire et observer toutes les consignes de sécurité et les

instructions avant de commencer l’installation. Durant

l’installation, veiller à toujours porter des lunettes de

protection et respecter les mesures de sécurité.
LEA ESTO PRIMERO:

Lea y siga todas las advertencias e instrucciones de

instalación del vehículo antes de empezar la instalación.

Use gafas de seguridad y todas las precauciones de

seguridad durante la instalación.
