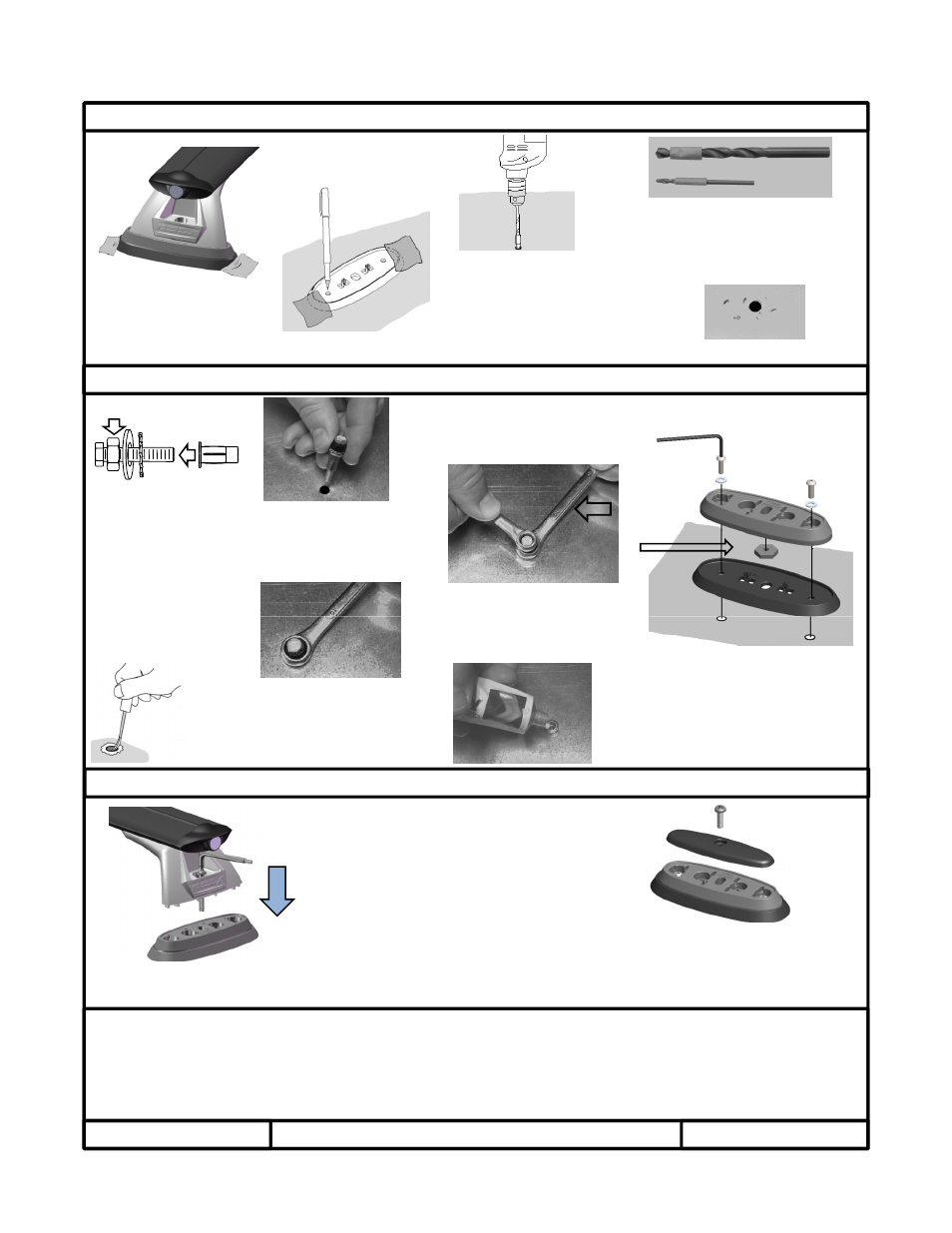

Once aligned correctly tape
adapters to surface. Carefully
remove cross bars.
Mark mounting holes with
fine tip marker or pencil
Preparing sheet metal surface for mounting
Installing Direct Mount Adapters to mounting surface
Drill 3.6mm pilot hole first,
then drill .290” dia. holes.
Do not drill deeper than ¼”.
Note- not advisable to drill
through adapters
Apply a small amount
of silicone into
Important- Use drill stops or wrap
masking tape around the drill bits to
insure drilling no deeper than ¼” below
sheet metal . Wear safety glasses when
drilling!
Blow away any debris.
M6 hex nut
Assemble M6 hex nut,
M5 x 30mm bolt, steel
flat washer, star
washer, & Plus nut as
shown .
M6 hex nut
Plus Nut
Install Plus Nut inserts into
drilled holes.
Use new star washer to
install each Plus Nut.
Once the Plus nut inserts are
installed remove the hex bolt,
nut & washer assembly.
Hold
Seal edges of
drilled holes with
automotive touch
Any weight carried on the vehicle will adversely affect its handling particularly in cornering or in a cross wind and the vehicle should
therefore be driven with increased caution. Check the function of all doors and sunroof before driving.
For lost key replacement or other service items call customer service: 1-800-632-3290 or visit:
www.rolaproducts.com
Please have lock core number or part numbers available.
Loads should be evenly distributed and secured. REGULARLY CHECK THE TIGHTNESS OF BOLTS
Page 2 of 2 Printed in China
Install covers when cross bars are not
installed to keep debris out of adapters
Attaching Cross Bars and tightening hardware
ROLA carries a variety of cross bar styles and lengths to attach to our direct mount adapters. Cross Bars are sold with
mounting hardware.
Re-Install cross bars onto adapter bases
and tighten anchor point screws firmly
into adapter nuts
of silicone into
inserts before
installing bolts
Install bolts and nylon washers through
adapters and into the inserts on the
mounting surface. Firmly secure bolts
with hex wrench.
Be sure to install M6 hex nut into
bottom of adapter.
Holding the M6 hex nut firmly with a
10mm wrench , tighten the hex bolt
with a 8mm wrench until the Plus
nut insert collapses (there will be a
noticeable force increase).
59754N Rev B 4-15-13
automotive touch
up paint.
