Draw-Tite 59754 ROOF RACK User Manual
Draw-Tite For the car

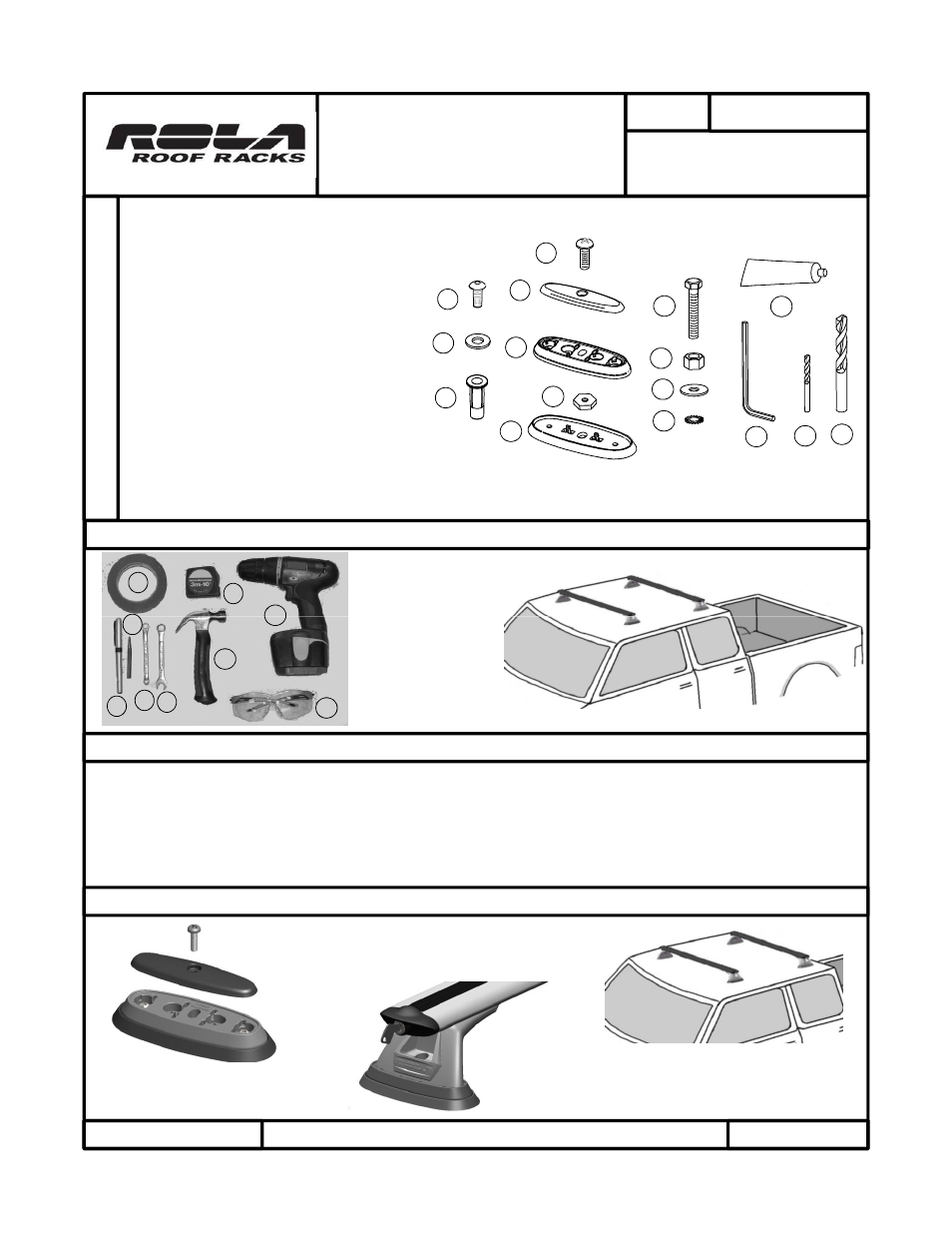

Direct Mount Adapter kit system DMK-R
For use on sheet metal surfaces
Use with ROLA APE and APX cross bar kits
PART No.
Tools required to install
K
IT
C
O
M
P
O
N
E
N
T
S
59754
Tools required:
A
Masking tape
B
Fine tip marker
C
Center punch
A
C
F
H
D
E
F
G
A
B
C
H
I
J
K
L
M
N
O
P
Part
Description
Qty
A
Bolt, Button Head M5 - 0.8 x 20mm
8
B
Nylon washers
8
C
Plus-nut inserts
8
D
Screw Phillips head M6 x 20mm
1
E
ROLA cover
4
F
Direct mount adapter base
4
G
Rubber mounting gasket
4
H
Brass Nut M6
4
I
Hex bolt M5 - 0.8 x 30mm
1
J
Hex nut M6
1
K
Flat washer - steel
1
L
Star washer M5
8
M
Hex key- 3mm
1
N
3.6mm (.125”) Drill bit
1
O
.290” Dia. (“L”) Drill bit
1
P
Silicone sealant
1
Placement of Direct Mounts onto Vehicle surface (truck roof shown)
Page 1 of 2
Remove covers from adapter
bases if attached.
Use of ROLA Direct Mount systems with bolts is intended for
sheet metal top installations.
Install requires drilling and permanent installation of
Adapters.
Installation requires some tools and skill. If concerned please
have professionally installed.
Caution- never exceed the load rating for your vehicle
(contact manufacturer for details), or that of your cross
bar system which ever is lower.
Precaution Warnings before beginning
Printed in China
Assemble cross bars to desired width and
attach to adapter bases
Align cross bars on vehicle in desired
position. Consider accessory spacing
and potential underside interference
C
Center punch
D
8mm wrench
E
10mm wrench
F
Tape measure
G
Hammer
H
Drill motor
I
Safety glasses
B
C
D E
G
H
I
59754N Rev B 4-15-13
